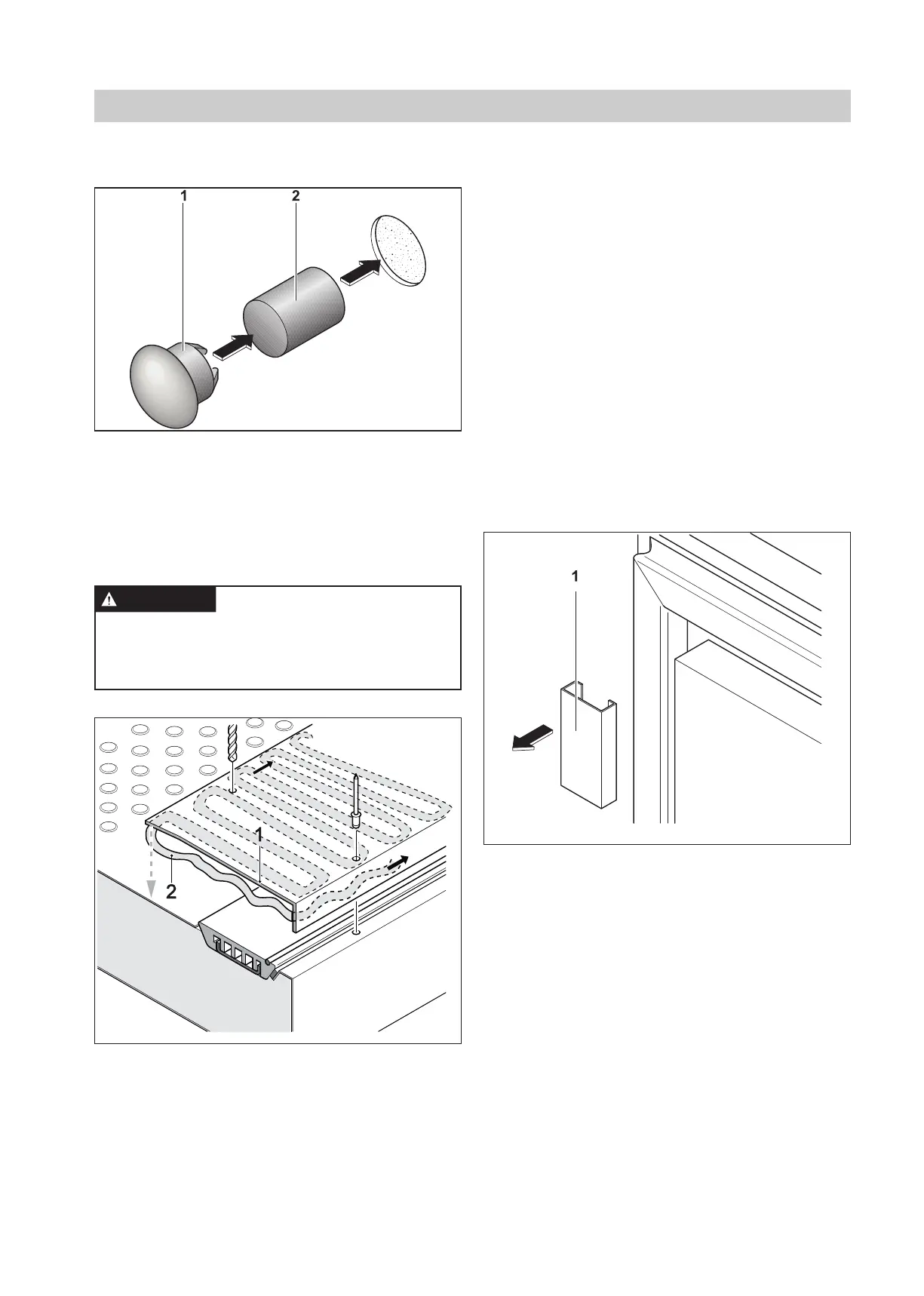

Assembly
5777744-03 GB Subject to technical changes!
4.12 Seal operating apertures in the cam locks in
the wall and ceiling elements
Â
Fill operating apertures 3 with the supplied heat
insulationfoamllers(2).
 Seal operating apertures with plastic plugs (1).
4.13 Mount doorsill (for rooms with oor ele-
ments)
DANGER!
Risk of death due to electric
shock!
f Only drill out the intended holes in
the stainless steel doorsill.
f Do not drill any additional holes.
 Place the stainless steel doorsill (1)inthemiddle
betweenthedoorsoftontheoorelementand
align.
 Usethestainlesssteeldoorsillasatemplateforx-
ingholes(Ø3.3mm)anddrillout.
 Remove drilling chips.
 In order to prevent moisture from getting in, apply
sealing strip with the enclosed sealant (2)onthe
entire surface of the bottom of the doorsill.
 Distribute sealing strip.
 Laystainlesssteeldoorsillontooorelementand
align it.
 Fasten stainless steel doorsill with enclosed rivets.
 Seal stainless steel doorsill with enclosed sealant:
 betweendoorsoftanddoorsill
 betweenooranddoorsill
 Remove any sealant that escapes.
4.14 Remove transport securing plates
L
The magnetic sealing frames on the doors are pro-
tected from mechanical damage by securing plates.
Before initial operation or door adjustment:
 Remove transport securing plates (1).
