Assembly
5777744-03 GB Subject to technical changes!

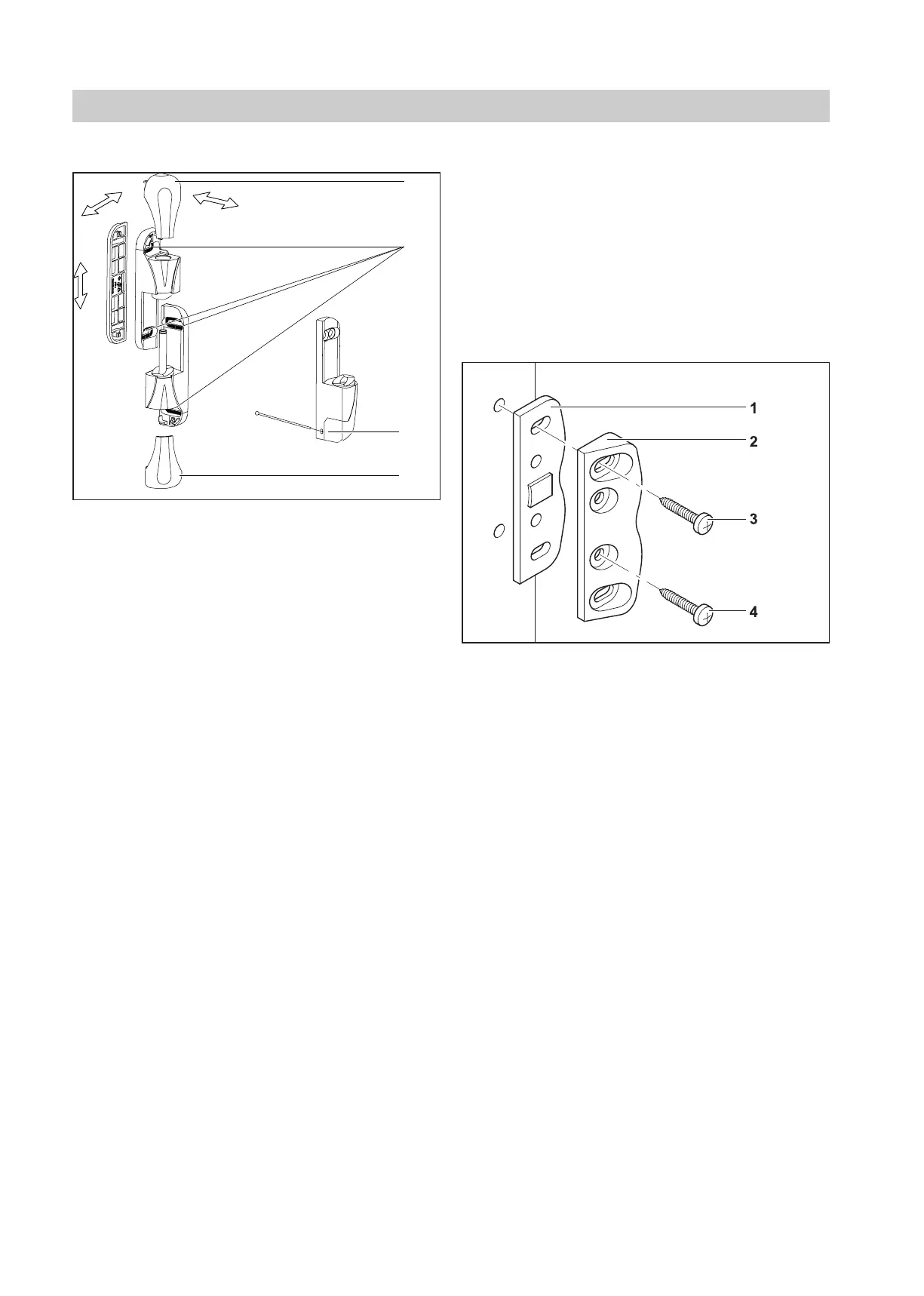

4.15 Adjusting the door
1
2
3
1
Adjust hinges when the door is closed in order to com-
pensate for deviations if:
 themagnetsealingproleisnotplacedevenlyall
the way around
 thesealinglipoftheoorsealisnotlyingonthe
silloron-siteoor.
Adjust hinges as follows:
 Remove cover caps (1)fromdoorhinges.
 Open door.
 Insert thin pin, small Allen key or similar into open-
ing (3)inthecapinordertoloosenthecapseal.
 Loosen the screws (2).
 Adjust the door leaf in depth and horizontal posi-
tion using the screws (2).
 Adjust the door leaf vertically with the hinge pin.
Adjust door vertically:
 TurnhingepinwithAllenkey(8mm)untilthedoor
has the desired height.
 Make sure that the hinge can move easily in all
adjustment areas.
 Adjust all of the door’s hinges.
L
Maximum adjustment range: +/- 3 mm.
4.16 Light test
 Conduct a light test to check whether light gets into
the dark room through an open seal point.
4.17 Attaching the cover caps
 Place the cover caps onto the hinge so they are
centred.
 Fit the narrow side of the cover caps in the recess in
the hinge housing into slide blocks.
 Lock the mounting lugs into place by pushing up or
down on the cover caps.
4.18 Fastening the striker
L
The striker of the rotary lever lock is adjusted at the
factory.
 After assembly or door adjustment, check whether
lug of the rotary lever lock clicks into place behind
the striker (2).
If necessary, readjust the striker as follows:
 loosen the striker screws (3).
 If necessary, place a spacer (1)betweenthedoor
frame and striker.
 Fix the striker into the slots with screws (3)and
tighten the screws.
 Check whether the door is tight.
 Pre-drillfasteningforroundholes(Ø3.7mm).
 Additionallyxthestrikerintotheslotswiththe
enclosed screws (4).
