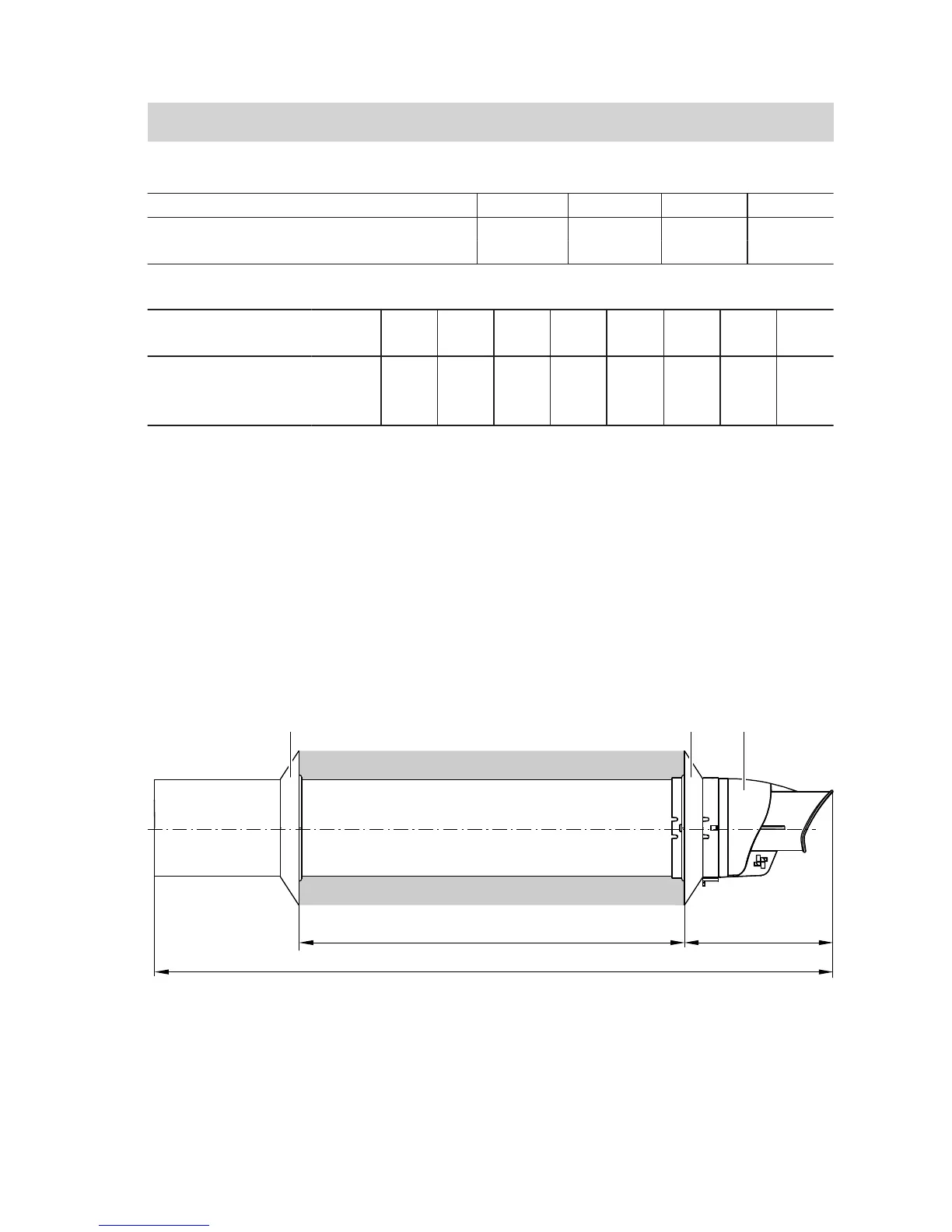

Viessmann WB1A007 Installation Instructions

49
Vitodens 100-W, type B1HA and B1KA, Vitodens 111-W
Rated heating output kW 19 26.0 30.0 35.0
System size 60/100 m 10 10 8 8
System size 80/125 m 13 13 11 11
Vitodens 200-W, 222-F and 242-F
Rated heating
output
kW 13 19 26 35 45 60 80 100
System size 60 m 10 10 10 8 — — — —
System size 80 m 13 13 13 11 10 6 — —
System size 100 m — — — — 13 9 15 15
Note
For alternative system sizes, a bal-
anced flue adaptor is required.
The following components are taken
into consideration for the maximum flue
lengths:
■ 2 balanced flue bends 87°
Subtract other bends, tees and straight
lengths from the maximum length using
the following values:
■ Balanced flue bend 45°: 0.5 m
■ Balanced flue bend 87°: 1 m
■ Balanced flue inspection tee: 0.5 m
Installation
C
B
A
a
b
c
Balanced flue system
7
60/100 mm and
7
80/125 mm
External wall connection
(cont.)
5780 223 GB
