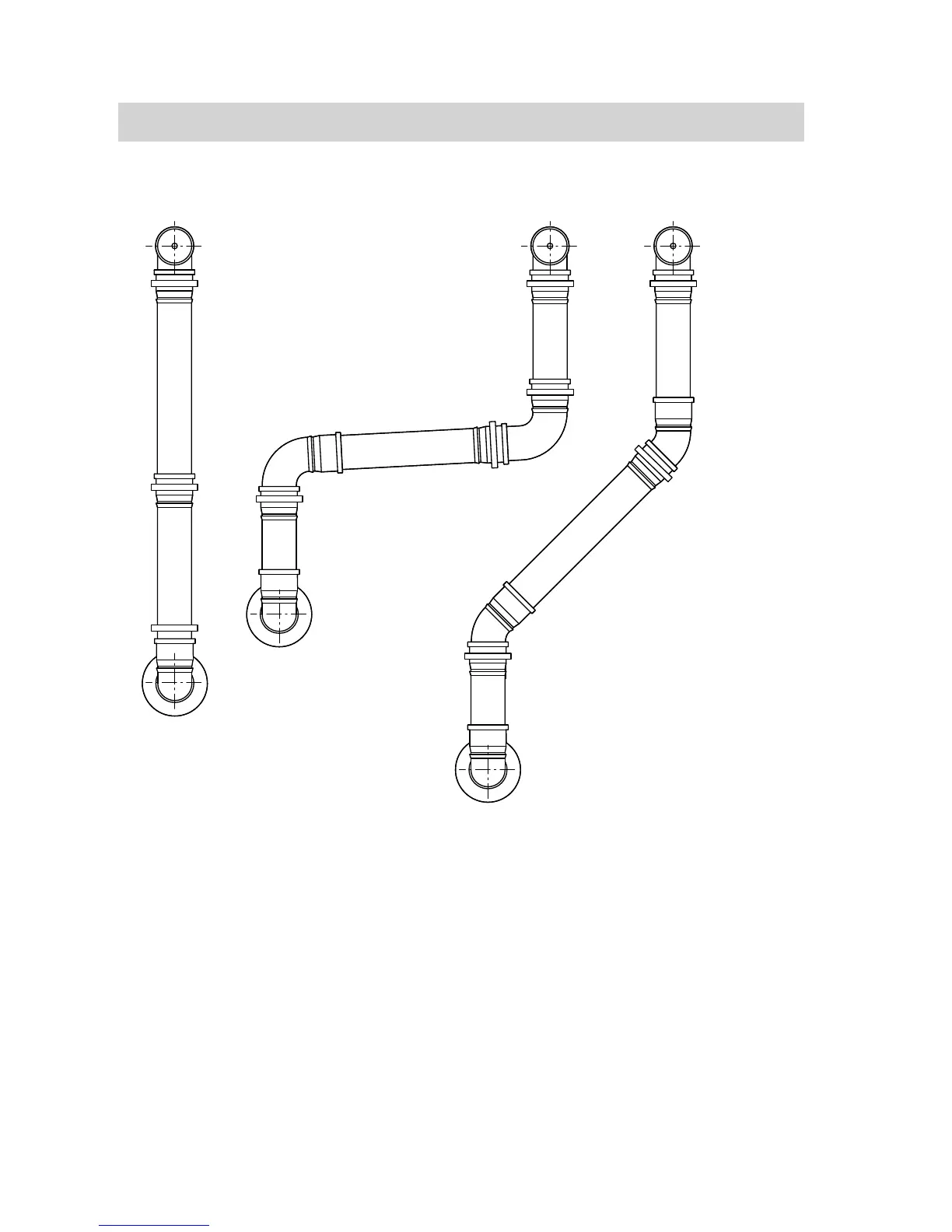

Routing options
A B
C
A
Plume kit standard delivery
B
Plume kit standard delivery
plus:
■ 2 bends 87°
■ 1 pipe, 1 m long
C
Plume kit standard delivery
plus:
■ 2 bends 45°
■ 1 pipe, 1 m long
Observe the max. length of the entire
balanced flue.
For the standard plume kit, deduct 3 m
from the max. possible pipe length.
When using an additional 87° bend or
two 45° bends, reduce the max. length
by 1 m.
Plume kit
5780 223 GB
