Fitting the balanced flue slide coupling
Note
The slide coupling enables a gap of
approx. 45 mm to be covered. Prior to
installation, compensate for surplus or
insufficient length on the incoming pipe.
1.
120
4.
3.
5.
6.
2.

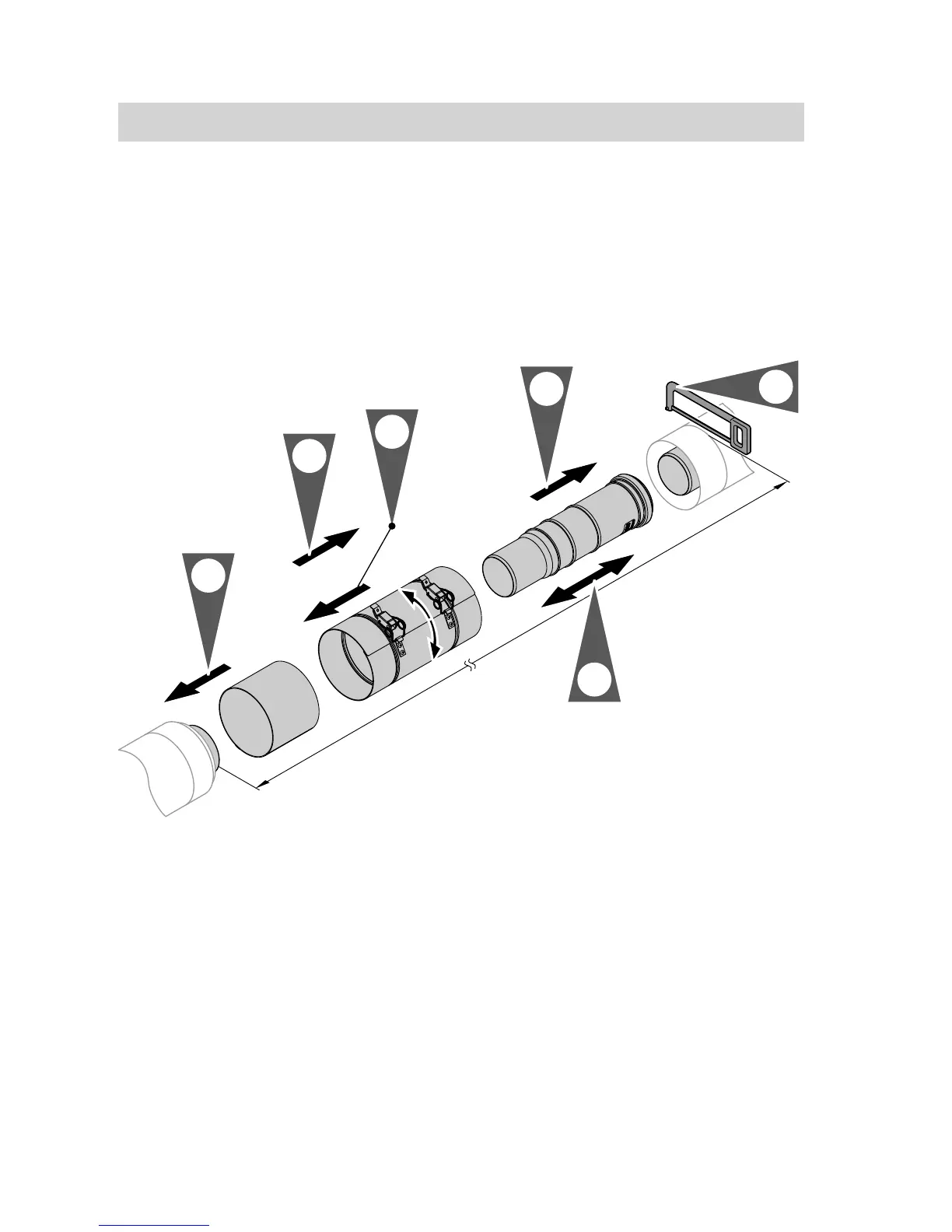

1. Push the pipe section into the
female connection of the incoming
balanced flue component.
2. Shorten the ongoing balanced flue
pipe to create a gap of 120 mm
between the pipe section and the
balanced flue pipe.
3. Push the slide coupling onto the
ongoing flue pipe.
4. Open the collar and push it over the
ongoing balanced flue pipe.
5. Pull the slide coupling out and push
it onto the incoming flue pipe.
6. Align the collar and close the toggle
fasteners.
General installation information
(cont.)
5780 223 GB
