Boiler Connections

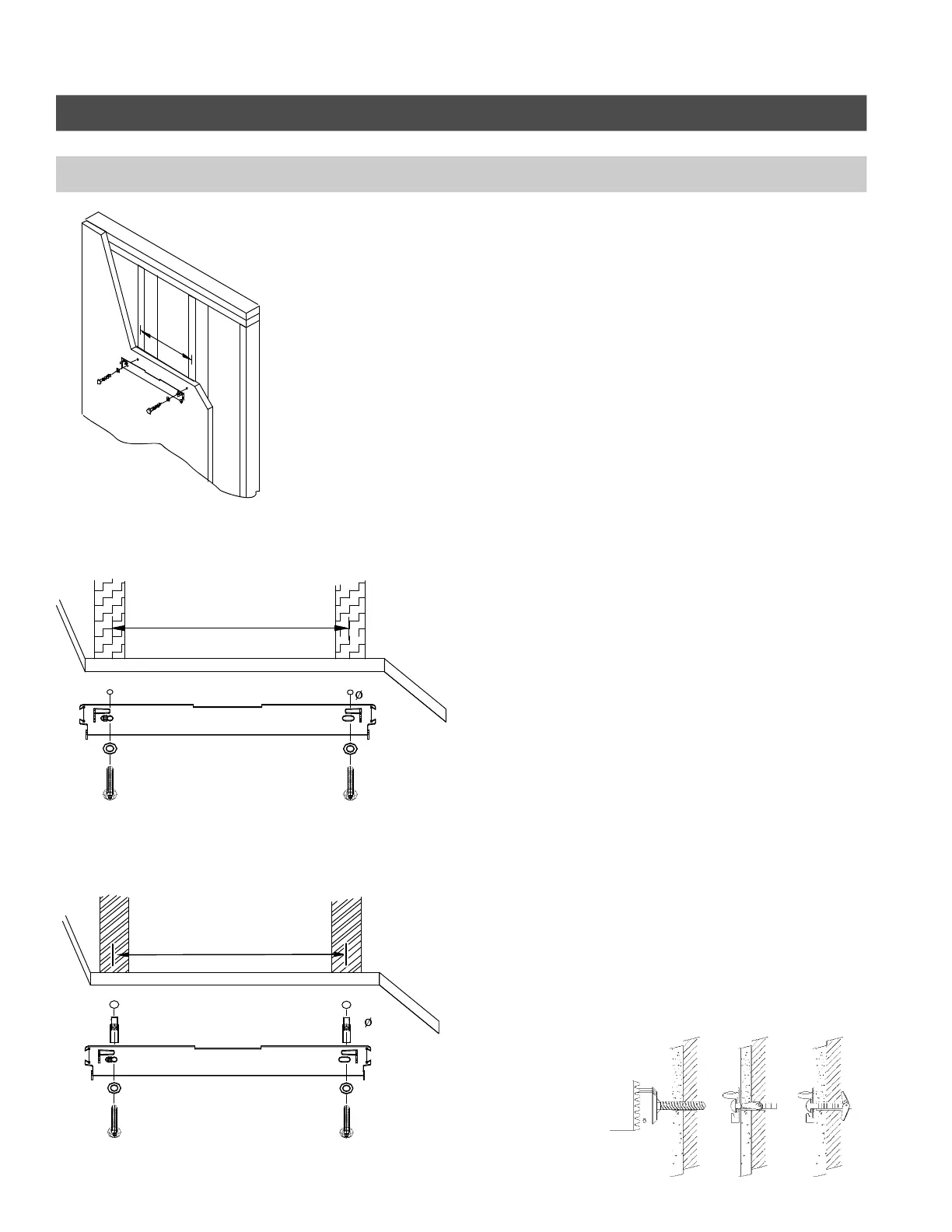

Fig. 6 General installation of mounting bracket
a
a = 16”/407 mm
Fig. 7 Installation of mounting bracket on wood studs
16”/407 mm
3/16”
2x
Fig. 8 Installation of mounting bracket on metal studs
5/8”
2x
16”/407 mm
14
Wall Mounting (continued)
Installing the wall mounting bracket (continued)
Installation of mounting bracket on
wood and metal studs
To mount the Vitodens 200-W WB2B
boiler on wood or metal studs, install
mounting bracket on wall as shown in
Fig. 6.
Install mounting bracket on wood studs
as per Fig. 7.
Drill
3
/
16
” pilot holes to insert mounting
bolts.
Ensure that holes are located in the
center of each wood stud.
Install mounting bracket on metal studs
as per Fig. 8.
Drill
5
/
8
” pilot holes to insert mounting
bolts.
Ensure that holes are located in the
center of each metal stud.
Secure mounting bracket with bolts to
metal studs as shown below.
5418 909 v1.6
