Wall Mounting
Installing the wall mounting bracket
Legend
Reference point for top of boiler
Mounting template
Finished floor level
Dimensions
a 19” / 483 mm
b 78” / 1975 mm
*1
Recommendation
The Vitodens 200-W WB2B can be
wall-mounted on
H a brick/concrete wall
H wood studs
H metal studs
Following are the installation
instructions for the mounting bracket
on each material. Skip to the
installation instructions applicable to
your installation requirements.
Installation of mounting bracket on
brick/concrete wall:
1. Drill holes (Ø
3
/
8
” / 10 mm), using
mounting template supplied with the
boiler.
2. Align wall mounting bracket and
attach to wall with the screws and
bolts supplied.
5418 909 v1.6
a
b*1
3
/
8
”/10 mm
2.
1.

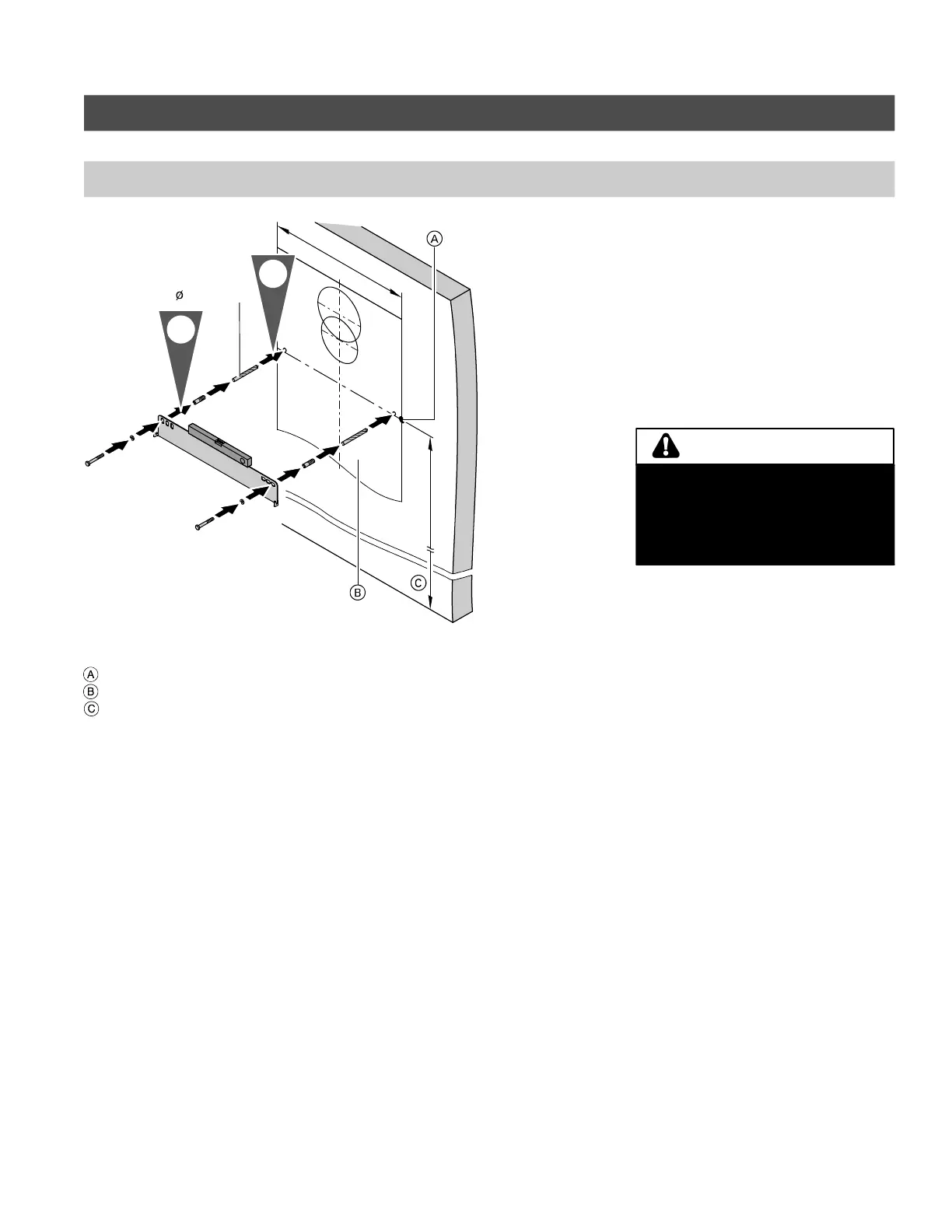

Fig. 5
Whichever mounting method is used,
ensure that the bracket is tightly and
securely fastened to wall. Failure to
secure boiler properly could cause
boiler to loosen, posing a severe
safety hazard.
CAUTION
