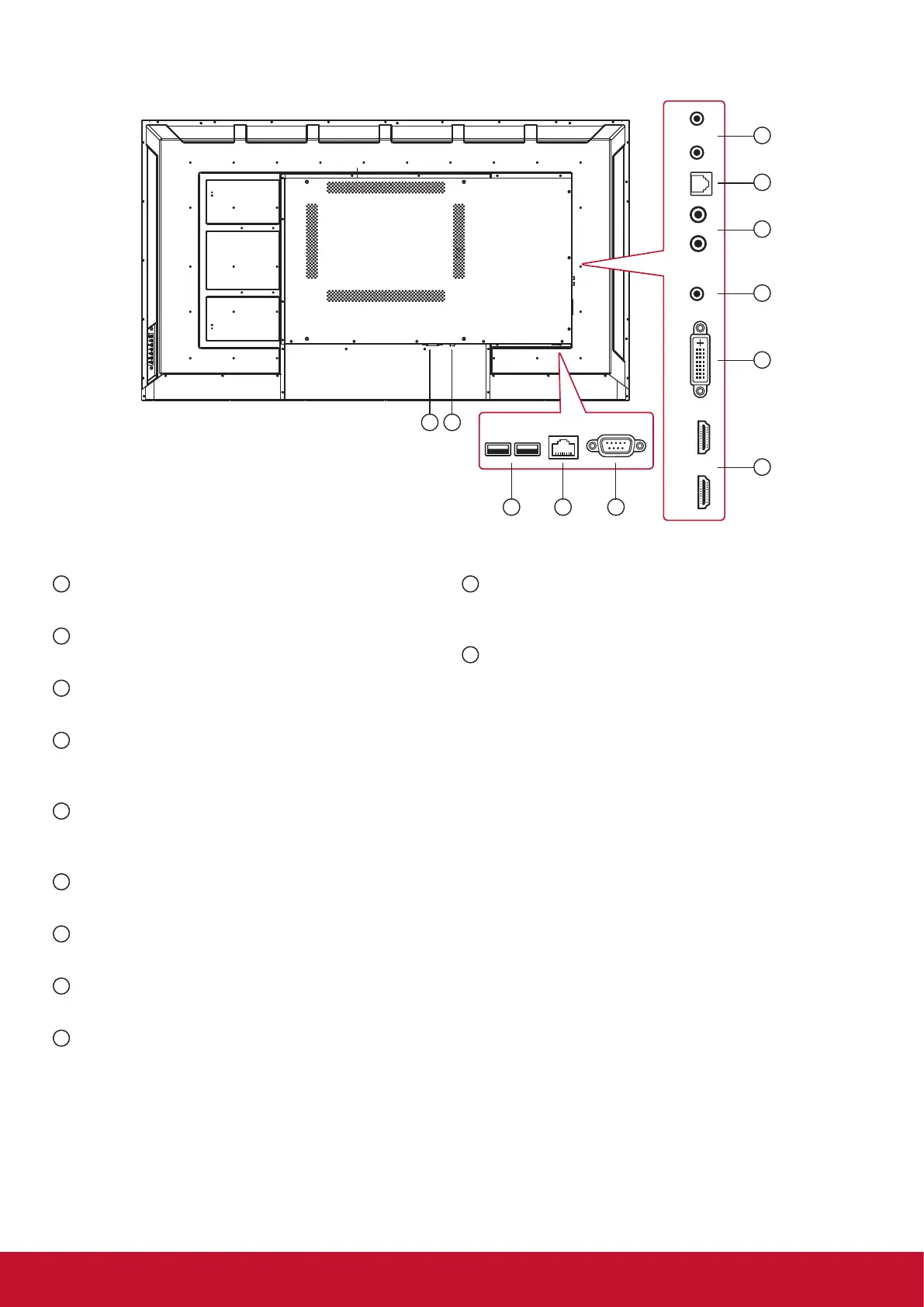

2.2. Input/Output Terminals
HDMI 1
(ARC)
HDMI 2 DVI-D AUDIO-IN AUDIO-IOUT SPDIF IR-IN IR-OUT
RS232LANUSB 2USB 1
1 2
3 4 5
6
7
8
9
10
11
1
MAIN POWER SWITCH
Switch the main power on/o󰀨.
2
AC IN
AC power input from the wall outlet.
3
USB PORT
Connect your USB storage device
4
LAN
LAN control function for the use of remote control
signal from control center.
5
RS232 IN
RS232-besturing voor het gebruik van het
afstandsbedieningssignaal van het controlecentrum.
6
HDMI 1 (ARC) / HDMI 2
HDMI video/audio input.
7
DVI-D IN
DVI-D video input.
8
PC LINE IN
Audio input from DVI source (3.5mm stereo phone).
9
AUDIO OUT
Audio output to external AV device.
10
SPDIF OUT
Digital audio signal output to connect your external
AV device.
11
IR OUT / IR IN
IR signal output /input for the loop-through function.
NOTES:
• This display’s remote control sensor will stop
working if the jack [IR IN] is connected.
• To remotely control your A/V device via this
display, refer to page 14 for or IR Pass Through
connection.
