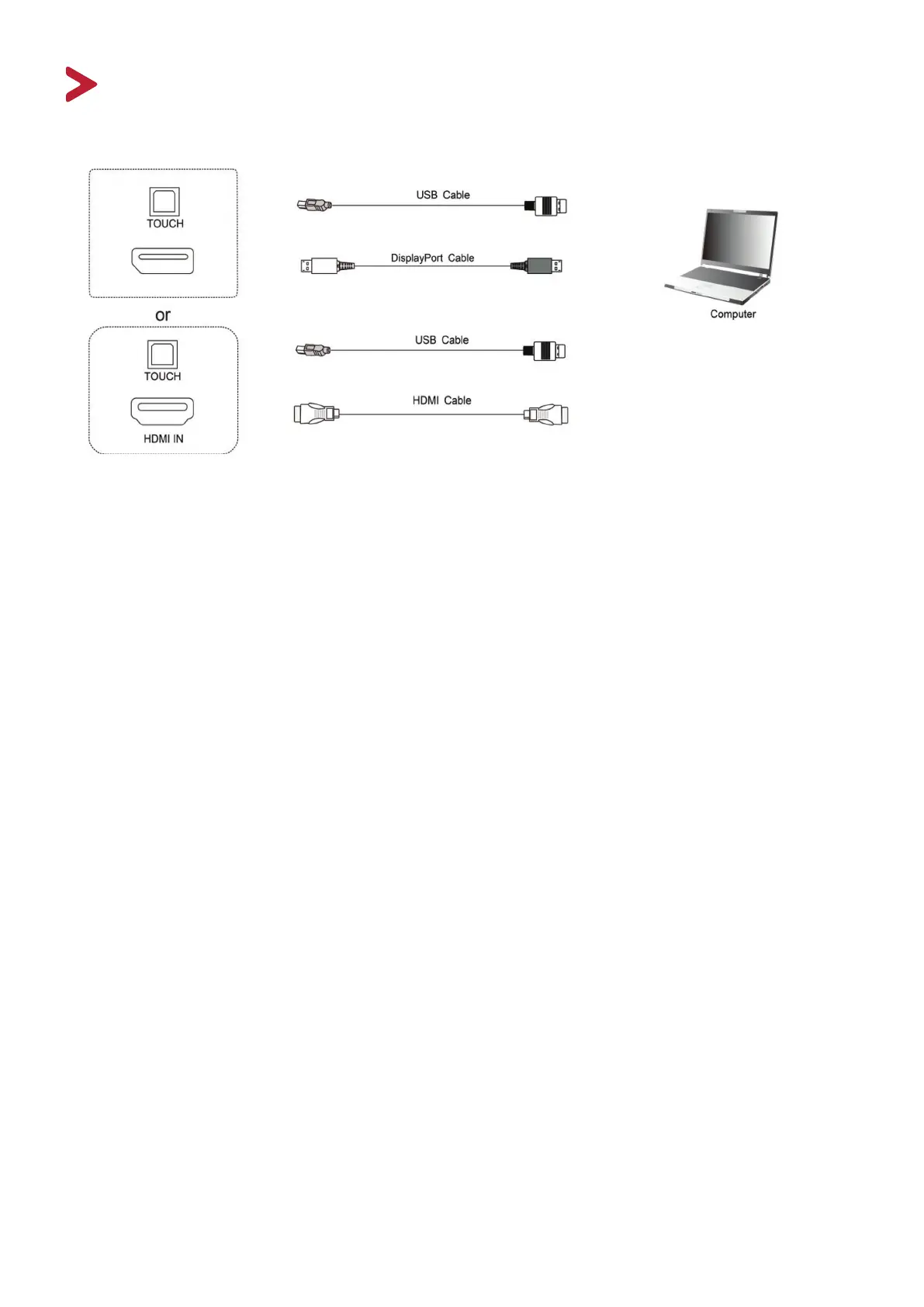

To connect via DisplayPort:
1. Connect a DisplayPort cable from your external device to the DisplayPort port on
the ViewBoard.
2. Connect a USB cable to the external device from the TOUCH port of the
ViewBoard.
To connect via HDMI:
1. Connect an HDMI cable from your external device to the HDMI IN port on the
ViewBoard.
2. Connect a USB cable to the external device from the TOUCH port of the
ViewBoard.
To connect via VGA:
1. Connect a VGA cable from your external device to the VGA port on the
ViewBoard.
2. Connect a USB cable to the external device from the TOUCH port of the
ViewBoard.
3. For audio, connect an audio cable from the external device to the PC Audio port
of the ViewBoard.
The front TOUCH port is arranged to pair with HDMI 1; the rear TOUCH
port is arranged to pair with HDMI 2/3, DisplayPort, and VGA.
