7
Projector exterior view

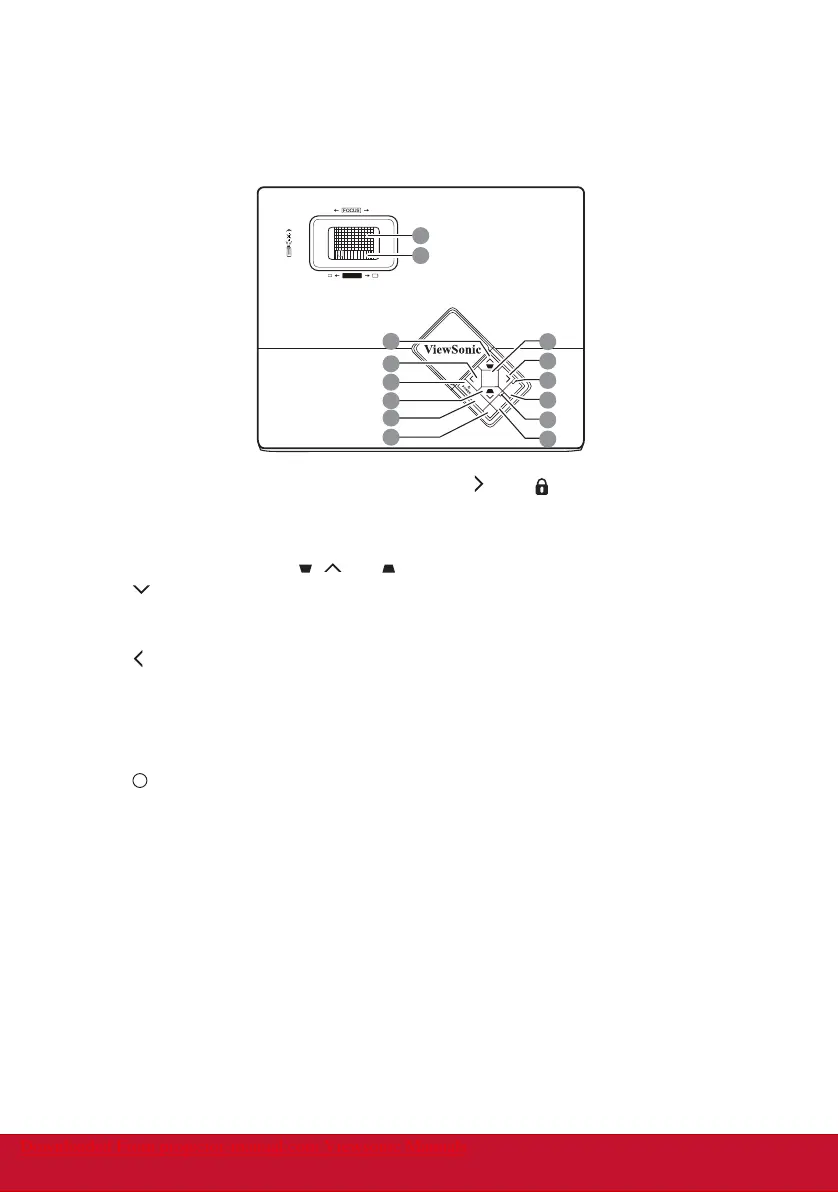

1. External control panel
(See "Projector" on page 8 for
details.)
2. Lamp cover
3. Vent (heated air exhaust)
4. Quick-release button
5. Lens cover
6. Focus and Zoom ring
7. Front IR remote sensor
8. Projection lens
9. Type B USB port
10. RJ45 LAN input port
11. RS-232 control port
12. HDMI port
13. RGB signal output socket
14. RGB (PC)/Component video
(YPbPr/YCbCr) signal input
socket-1/2
15. S-Video input socket
16. Video input socket
17. Audio signal input socket
Audio signal output socket
18. Kensington anti-theft lock slot
19. AC power cord inlet
20. Rear adjuster foot
21. Quick-release foot
22. Security bar
Connects a commercially available
theft prevention cable.
Warning
THIS APPARATUS MUST BE EARTHED.
When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring,
or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should
occur during operation of the unit, operate the disconnect device to switch the power supply
off, or disconnect the power plug.
Front/upper side
1
2
3
4
5
6
7
8
PJD6223/RC6/SD7
PJD6253/
PV731/FP586
PJD6553w
18
21
20
PJD5123p
TYPE B
USB
COMPUTER IN 2
RS-232
MONITOR OUT
COMPUTER IN 1
S-Viseo
Video
Audio in
Audio
out
9 10 12 13
15 16 17
11
14
9
15 16 17
11
1413
19
22
Rear/lower side
