ViewSonic PJD5123p - RS232 Command Table

71

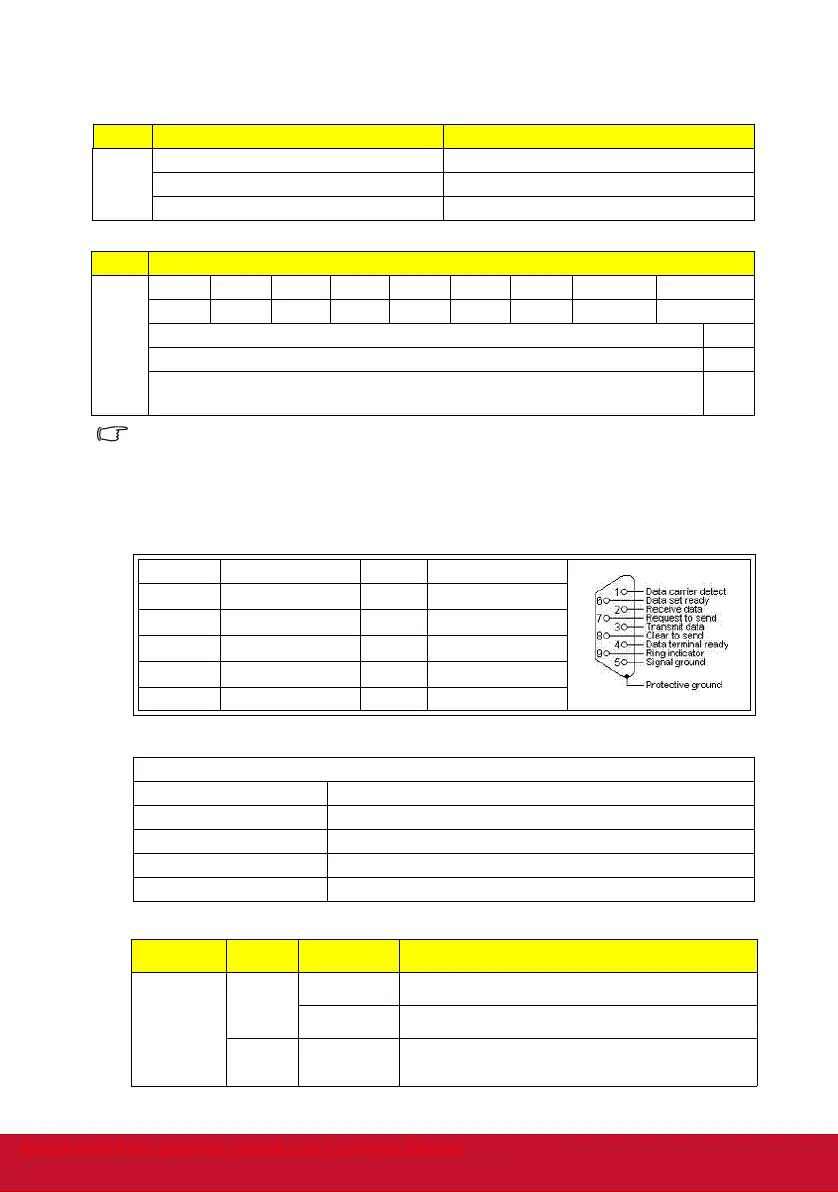

RS232 command table
<Pin assignment for this two end>
<Interface>
Pin Description Pin Description
1NC2RX
3TX4NC
5GND6NC
7RTSZ8CTSZ
9NC
RS-232 protocol
Baud Rate 115200 bps (default)
Data Length 8 bit
Parity Check None
Stop Bit 1 bit
Flow Control None
Function Status Action cmd
Power
Write
Turn on 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x00 0x00 0x5D
Turn off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x01 0x00 0x5E
Read
Power status
(on/off)
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x00
0x5E
Reset Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x02 0x00 0x5F
Splash
Screen
Write
Splash
Screen Black
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x00 0x67
Splash
Screen Blue
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x01 0x68
Splash
Screen
ViewSonic
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x02 0x69
Splash
Screen
Screen
Capture
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x03 0x6A
Splash
Screen Off
0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x04 0x6B
Read
Splash
Screen
status
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0A
0x68
