Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
• In the connections shown below, some cables may not be included with the projector (see
"Shipping contents" on page 5). They are commercially available from electronics stores.
• The connection illustrations below are for reference only. The rear connecting jacks
available on the projector vary with each projector model.
• For detailed connection methods, see pages 17-20.

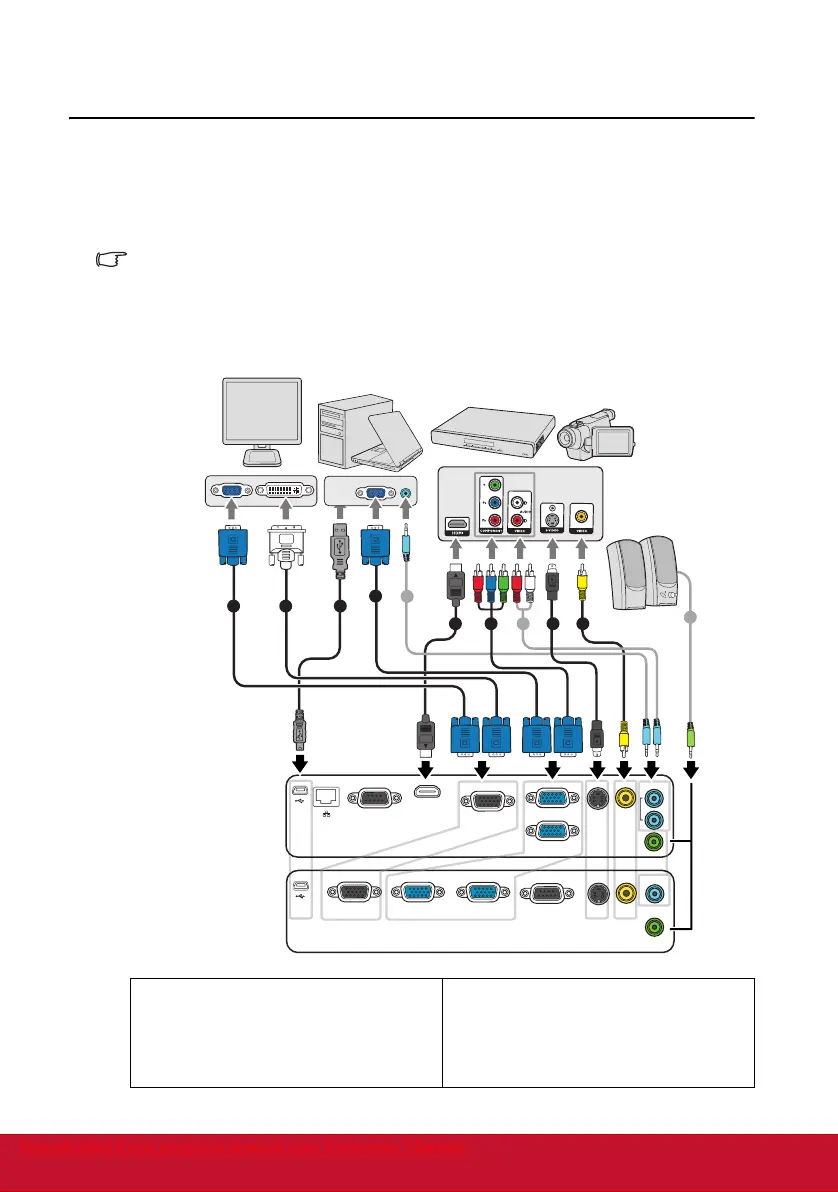

1. VGA cable
2. VGA to DVI-A cable
3. USB cable
4. Component Video to VGA (D-Sub)
adapter cable
5. S-Video cable
6. Video cable
7. Audio cable
8. HDMI cable
TYPE B
USB
LAN
COMPUTER IN 2
RS-232
HDMI
MONITOR OUT
COMPUTER IN 1
2
S-Viseo
Video
Audio in
1
Audio
out
TYPE B
USB
COMPUTER IN 2
RS-232
MONITOR OUT
COMPUTER IN 1
S-Viseo
Video
Audio in
Audio
out
5
7
7
7
48
1
6
3
1
2
PJD6223/PJD6253/
PJD6553w
PJD5126
Notebook or
desktop computer
Speakers
or
A/V device
Monitor
(DVI)
(VGA)
