Viglen BX130 – VIG385P User Manual
73
Keyboard Wake-Up
The JPWAKE jumper is used together with the Keyboard Wake-Up setting in BIOS.
Enable both to allow the system to be woken up by depressing a key on the

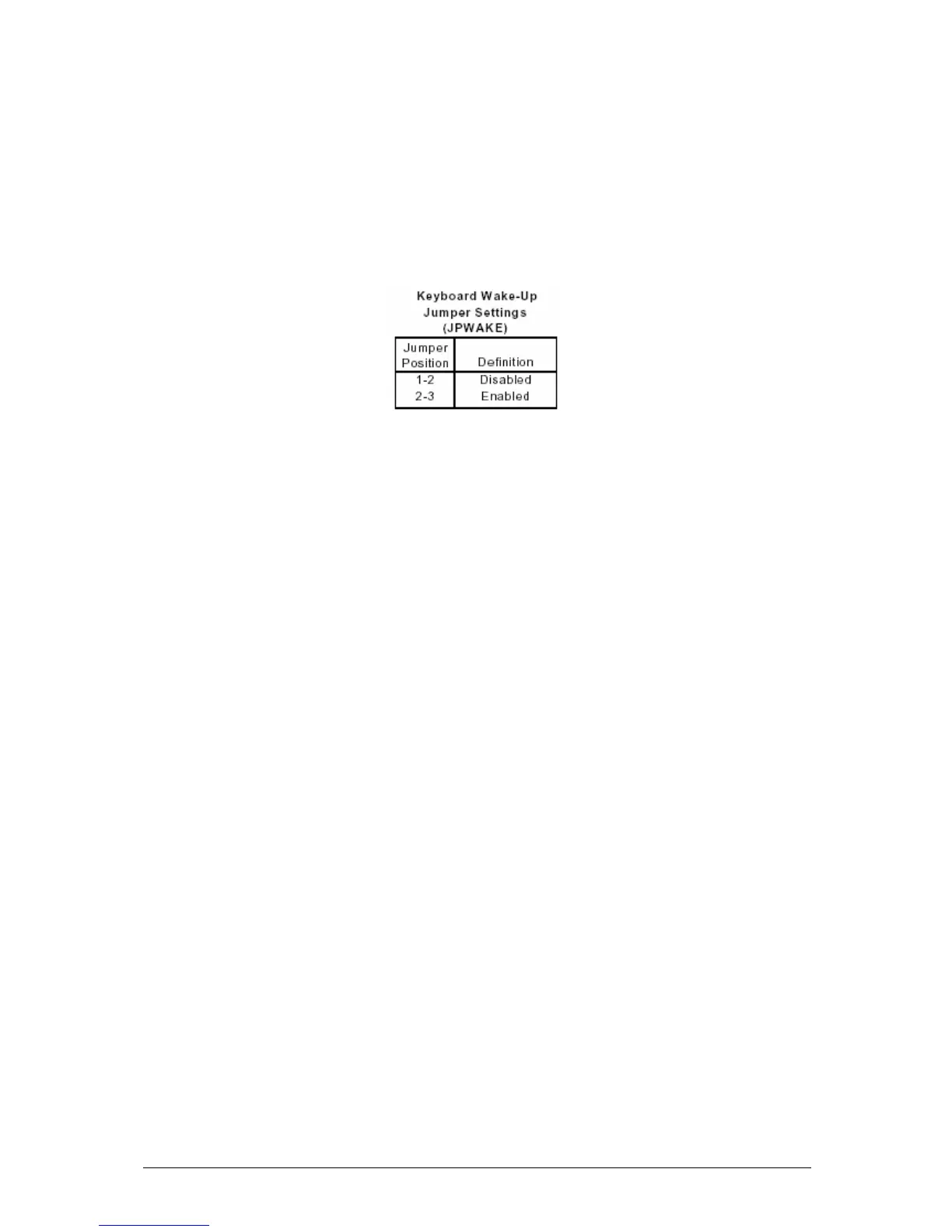

keyboard. See the table below for jumper settings.
Note: Your power supply must meet ATX specification 2.01 or higher and
supply 720mA of standby power to use this feature.
