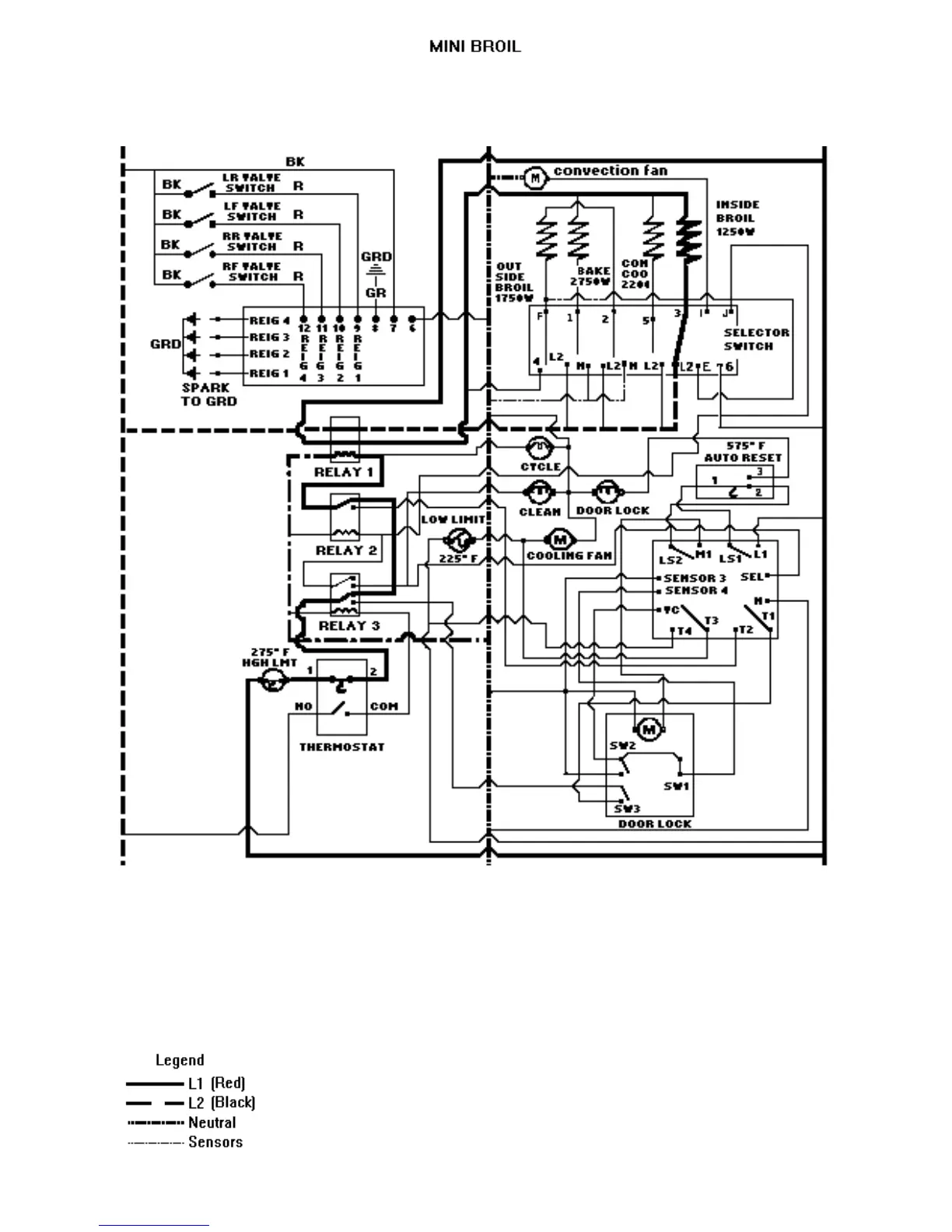

Viking 30'' W - Mini Broil Function Wiring and Operation; Selector Switch Mini Broil Logic

30
L2 (BLK) N (WH) L1 (RED)
Selector Mini Broil position closes Switches 3-L2. The Thermostat closes Switch Cy1-Cy2, powering Relay #1 and
the Oven Cycle Light. When Relay #1 closes, it powers the inside Broil Element at 208v/240v.
