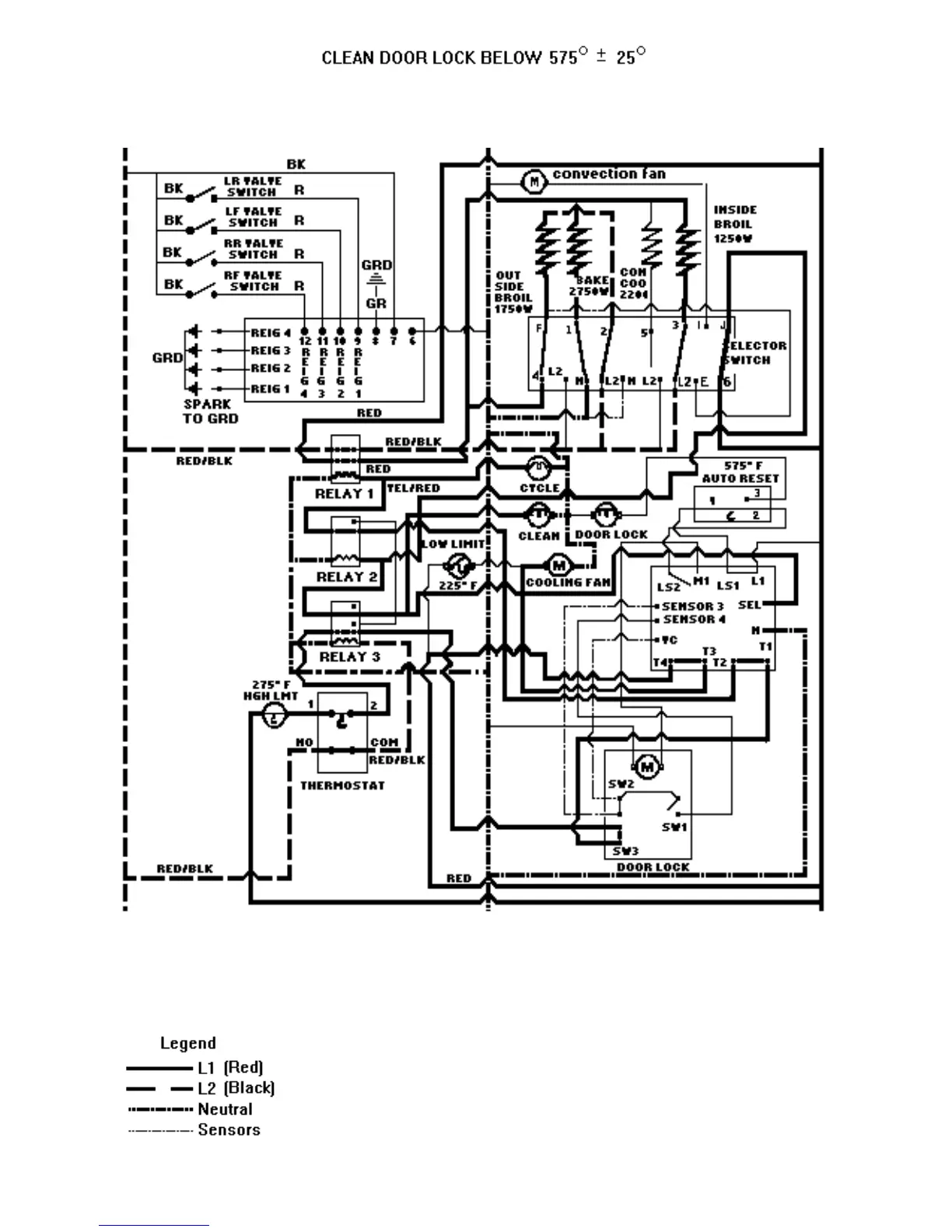

Viking 30'' W - Clean Door Lock Below 575°F Operation; Door Lock Motion Stop and Element Power

34
L2 (BLK) N (WH) L1 (RED)
10 seconds after the signal to Sensor #3, Switch LS2-M1 is opened, stopping the door lock motion and Switches T1-
T2, and T3-T4 which switches Relay #1, powering the Cooling Fan, which closes Relay #1 powering the inside and
outside Broil Elements to 208v /240v and the Bake Element to 120v.
