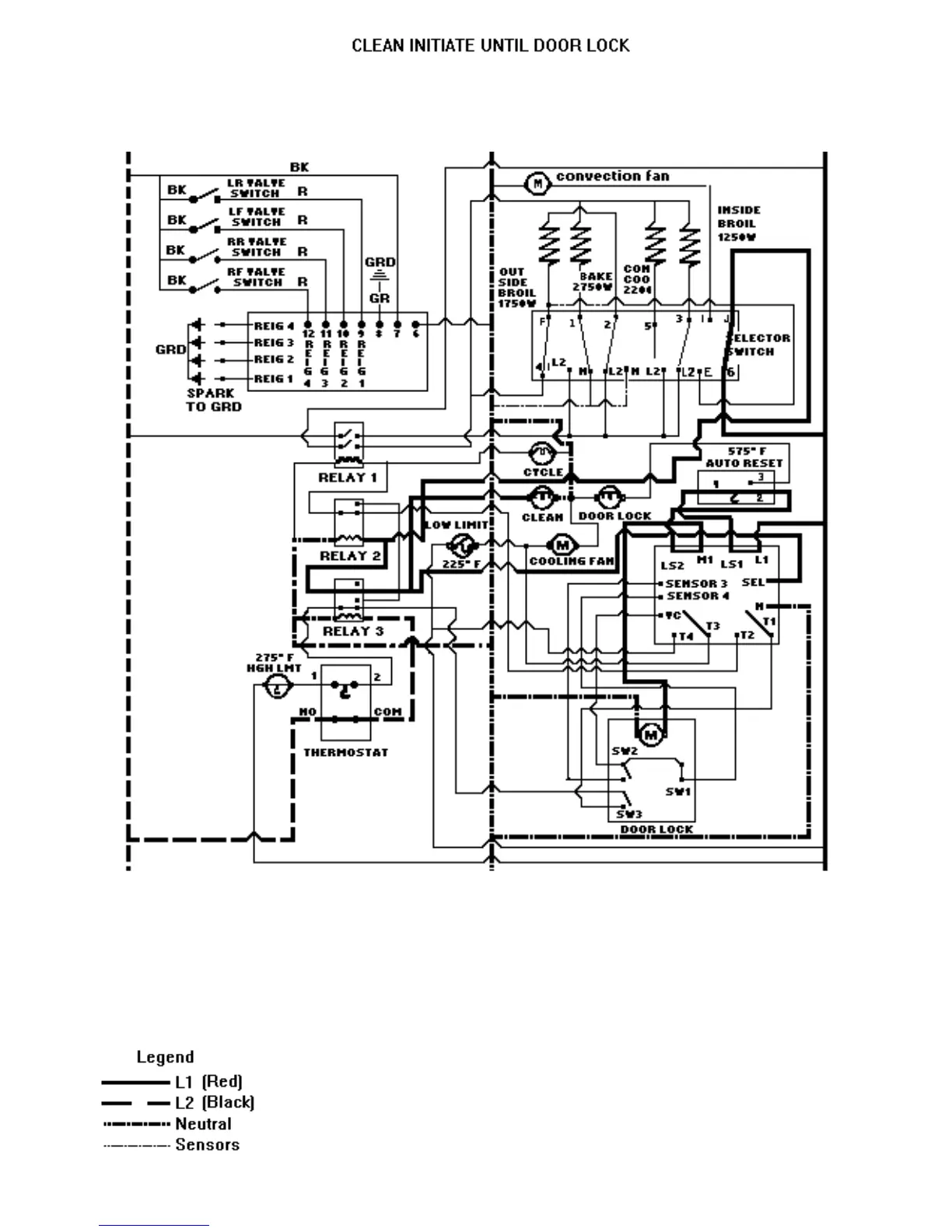

Viking 30'' W - Clean Initiate Until Door Lock Wiring; Selector Clean Position Circuit Logic

33
L2 (BLK) N (WH) L1 (RED)
Selector Clean position closes Heating Element circuits 4-F, 1-N, 2-L2, 3-L2 and Door Lock Module / Timer circuit
J-6 switches Relay #2. Thermostat clean position closes the Cycle Switch and Thermostat Clean Switch, which
switches Relay#3. Switching Relay #3 allows circuit J-6 to turn on the Clean Indicator Light and enable the Door
Lock Module / Timer which closes Relays LS1-L1 and LS2-M1. This powers the Door Lock Motor until 10 seconds
after Sensor #3 is signaled by VC that the Door Lock Switch SW2 has been closed mechanically (along with SW3)
by the Door Lock Bolt.
