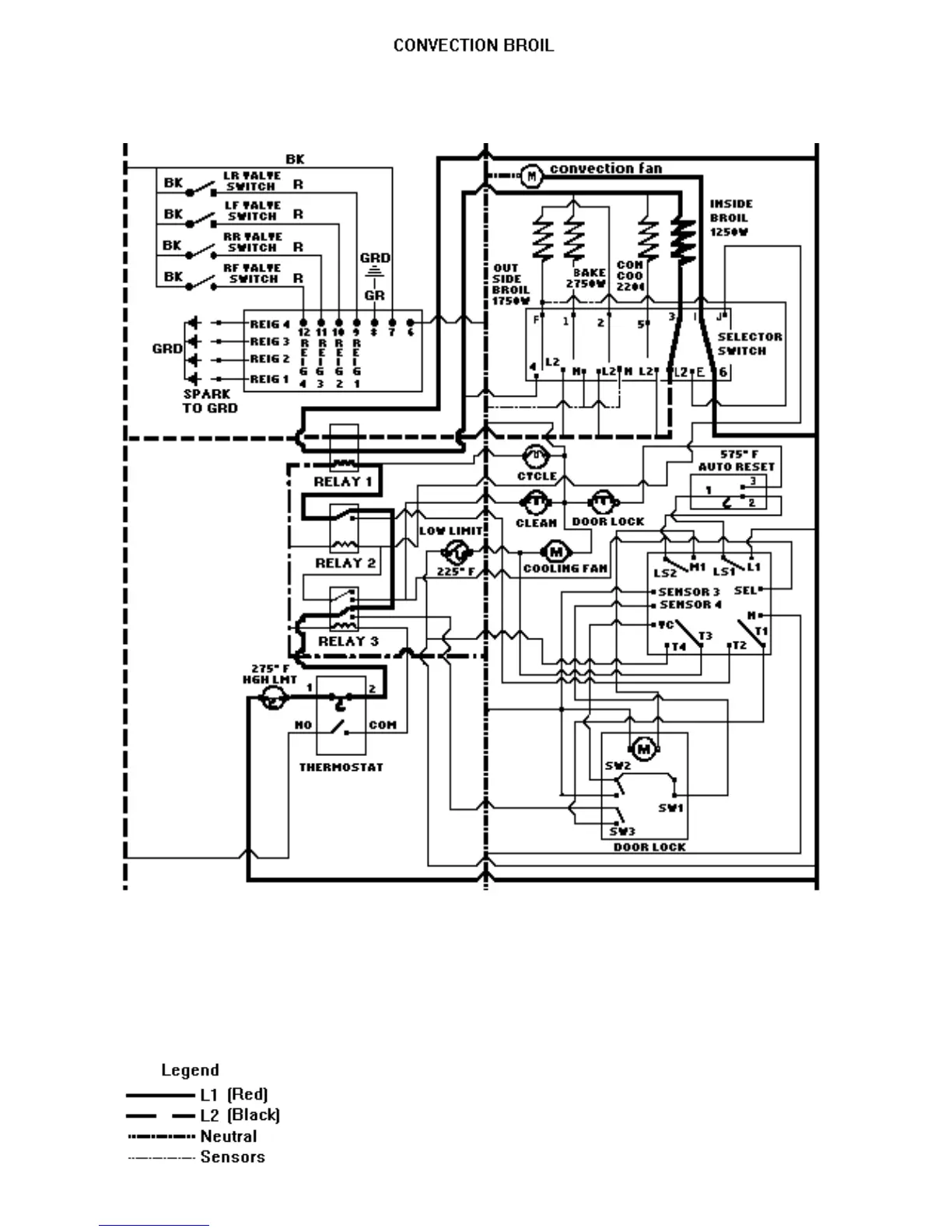

Viking 30'' W - Convection Broil Function Wiring and Operation; Selector Switch Convection Broil Logic

32
L2 (BLK) N (WH) L1(RED)
Selector Convection Broil position closes Switches 4-F, 2-L2, 3-L2, and 6-1. 6-1 powers the Convection Fan
through L1 at 120v. The Thermostat closes Switch Cy1-Cy2, which cycles the Oven temperature, powering Relay
#1 and the Oven Cycle Light. When Relay # 2 closes it powers the inside Broil Element at 208v / 240v and the
outside Broil Element at 208v / 240v.
