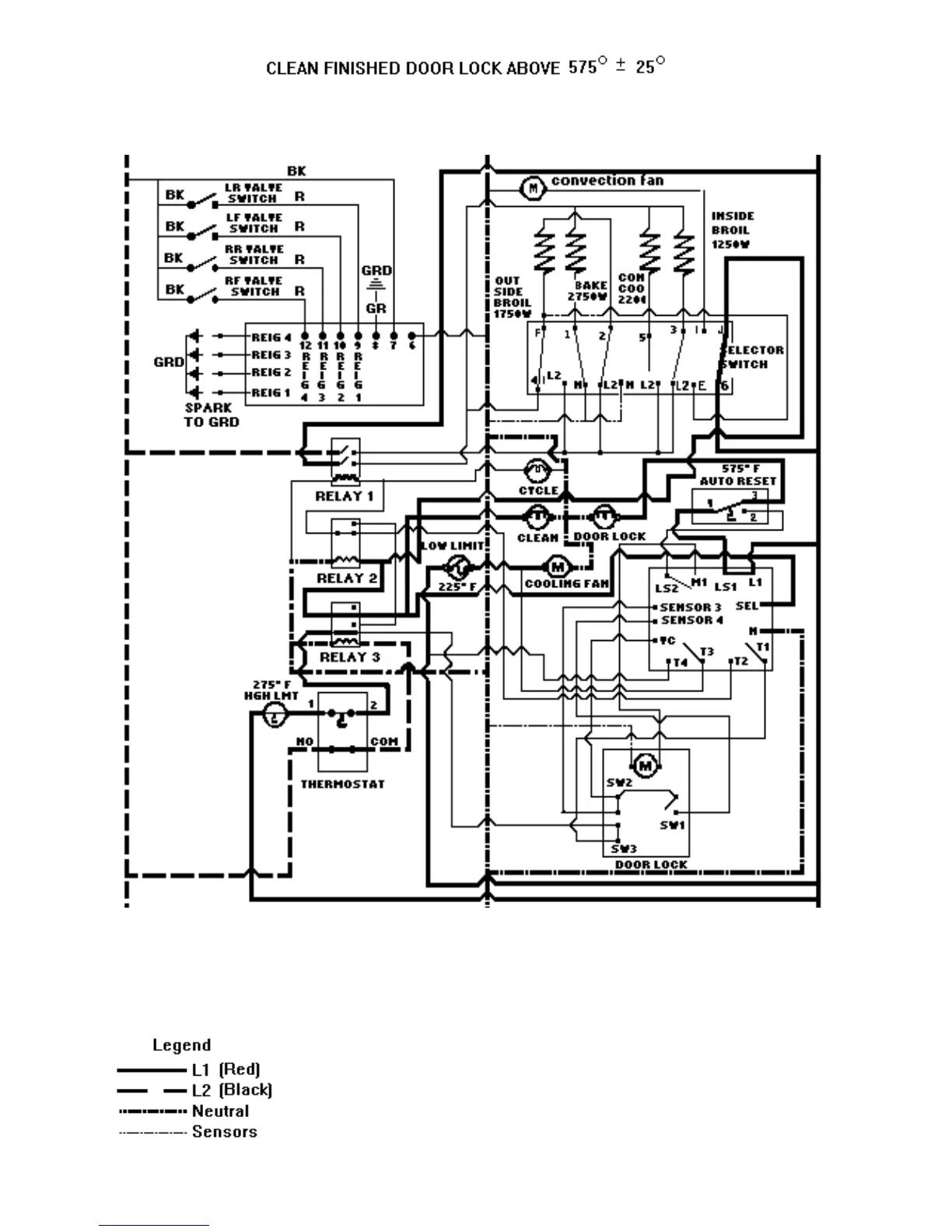

Viking 30'' W - Clean Finished Door Lock Above 575°F Operation; Cooling Fan Disable and Relay #1 Power Cutoff

36
L2 (BLK) N (WH) L1 (RED)
Timer Switches T3-T4, T1-T2 open, turning off the Cooling Fan, which will then be powered at 120v by the Fan
Limit Switch when needed, and opening the circuit to Relay #1 which disables the Heating Elements. Switch LS2-
M1 closes to power the Door Lock Motor.
