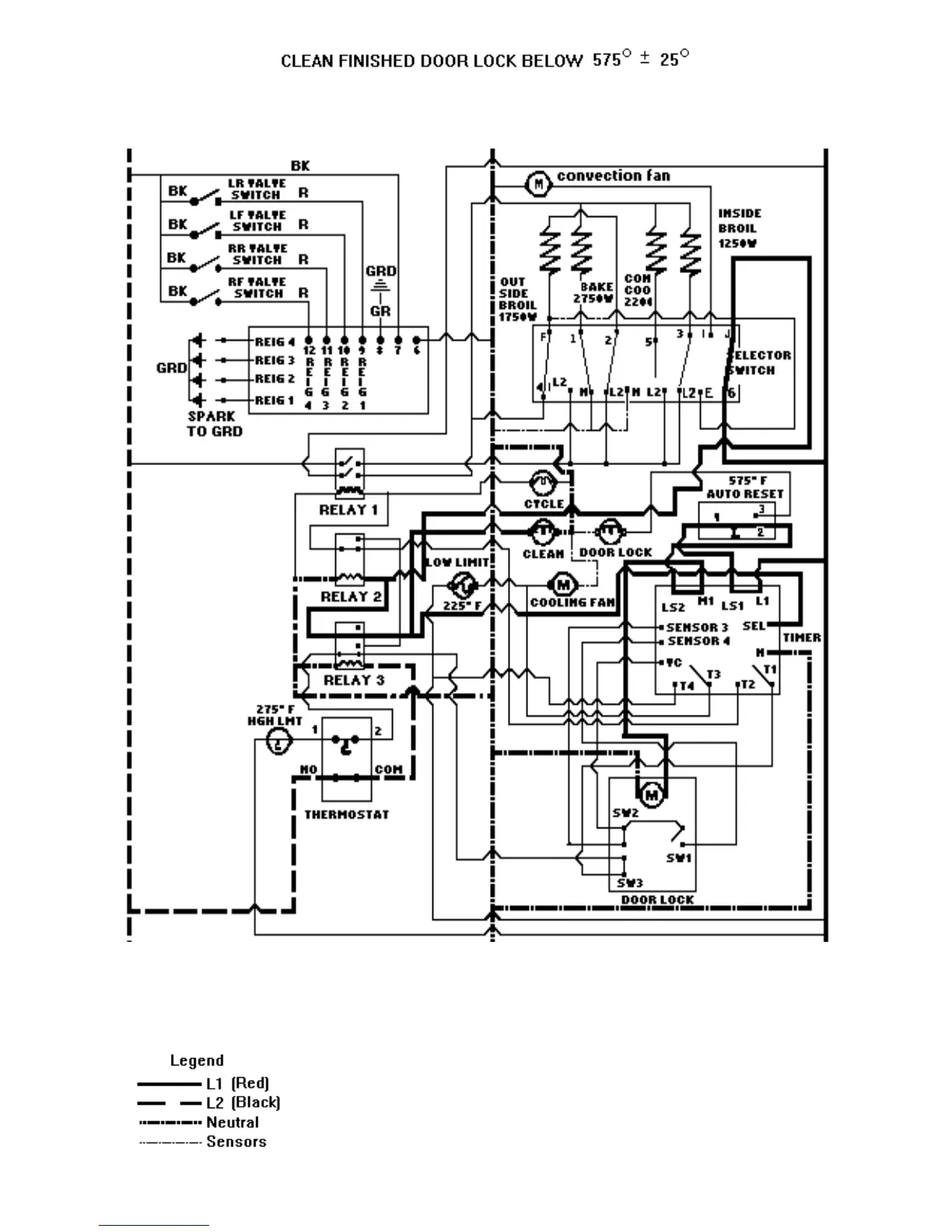

Viking 30'' W - Clean Finished Door Lock Below 575°F Operation; Door Lock Motor Activation and Timer Reset

37
L2 (BLK) N (WH) L1 (RED)
Auto Reset Switches 1-2 closed allowing the Door Lock Motor to operate and turning the Door Lock Light off. The
Door Lock Motor operates until 2 seconds after Sensor 4 is signaled be VC that the Door Lock SW1 has been closed
mechanically by the Door Lock bolt. The Door Lock / Timer switches LS2-M1 and LS1-L1 open and the Timer
resets.
