VESO / VEDO WALL OVENS DOOR REMOVAL / ADJUSTMENT

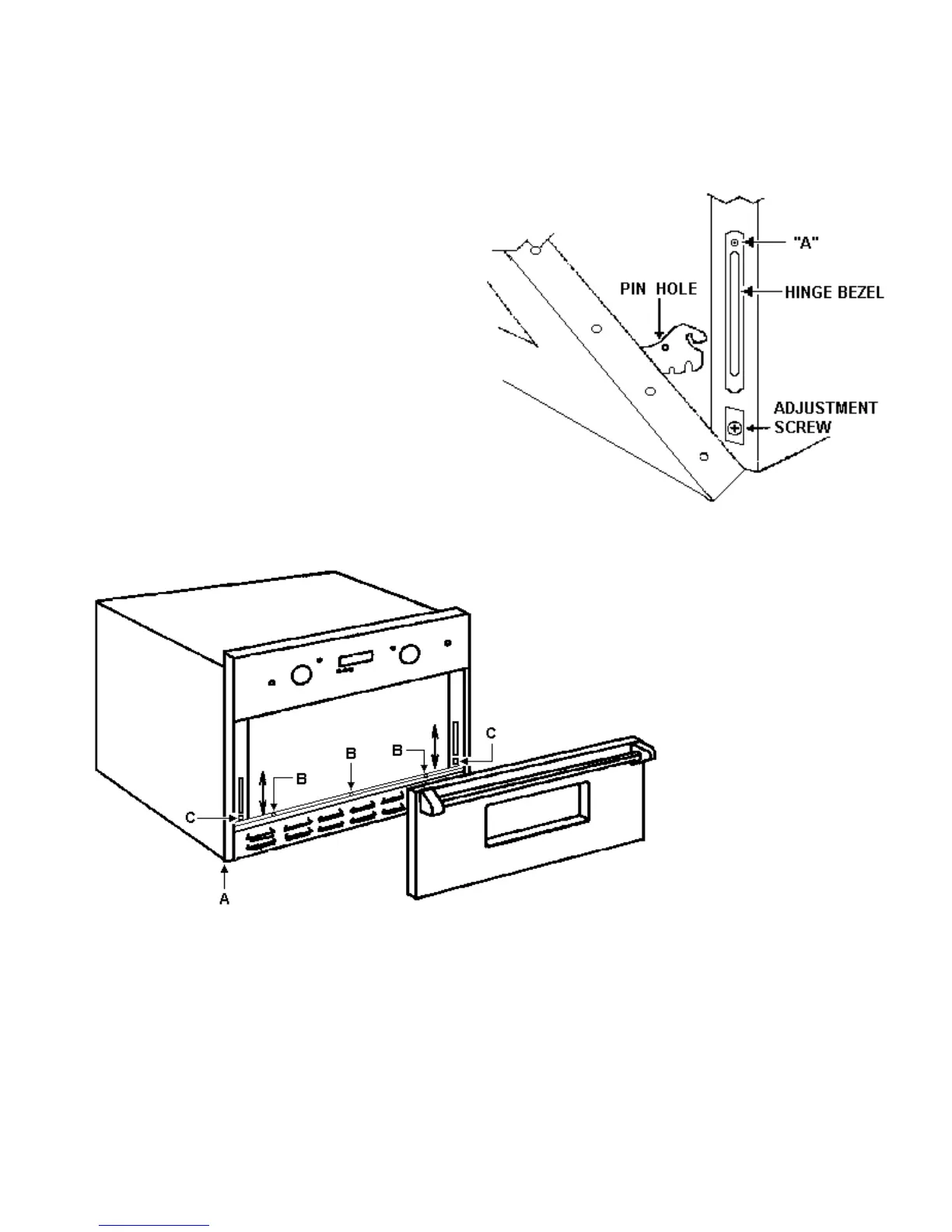

DOOR REMOVAL:
! Open door to the full open position.
! Place a pin in the pin hole.
! Close the door to the inserted pin.
! Remove screw “A”.
! Lift the door and hinge bezel out of the
door socket.
! Reverse the procedure to replace the
door.
DOOR ADJUSTMENT:
! Remove the lower access panel:
! Remove 2 screws at the bottom of
each side trim (“A”).
! Remove the 3 screws beneath the
door (“B”).
# DOOR ADJUSTMENT SCREWS –“C”--
(TURN CLOCKWISE TO RAISE)
(TURN COUNTERCLOCKWISE
TO LOWER).
