IP camera management
44
EN

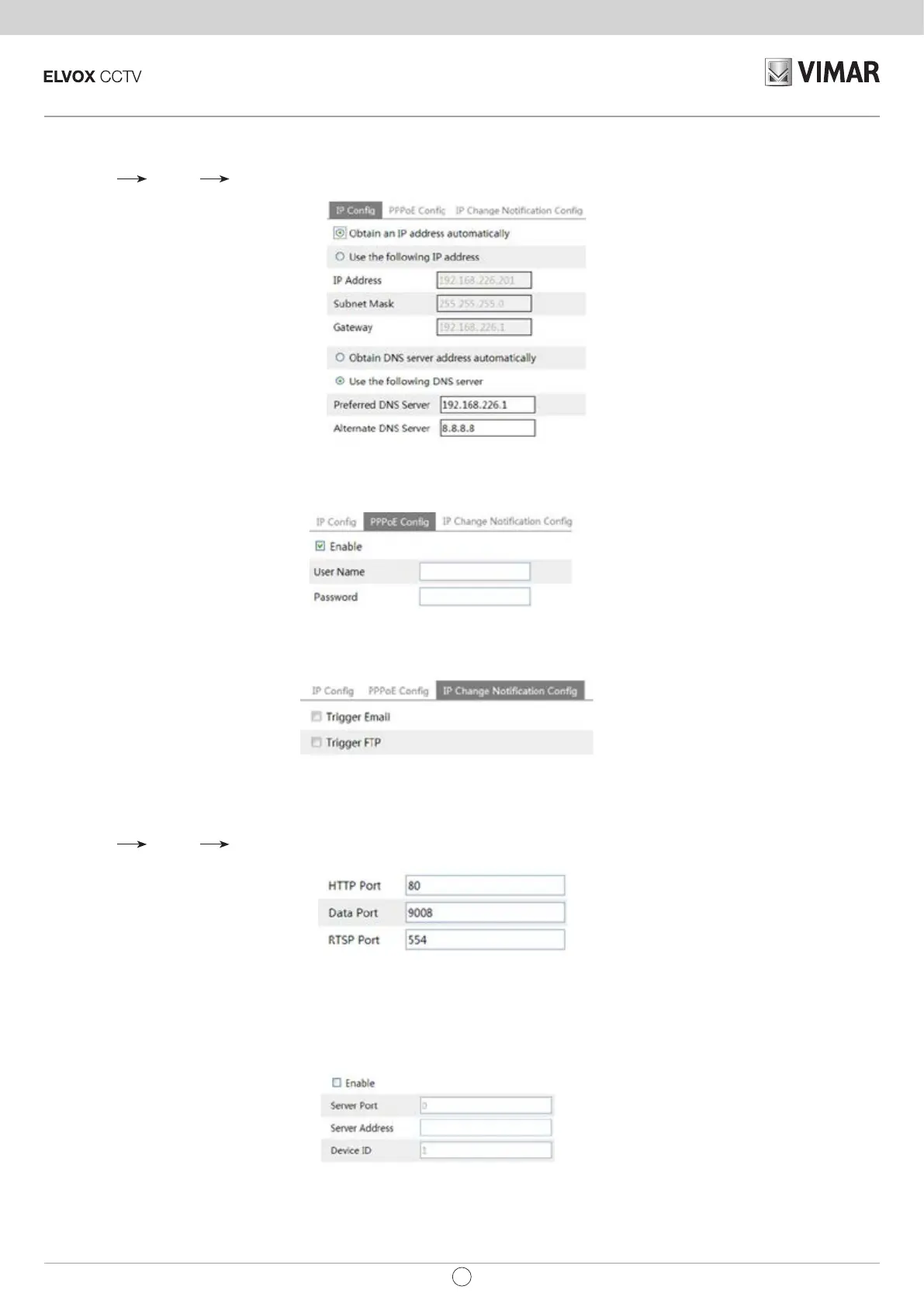

4.5 - Network Conguration
4.5.1 - TCP/IPv4
GotoCong Network TCP/IPv4.Therearetwowaysfornetworkconnection.
-UseIPaddress.TherearetwooptionsforIPsetup:obtainanIPaddressautobyDHCPprotocolandusethefollowingIPaddress.Pleasechooseone
ofoptionsforyourrequirements.
-UsePPPoE:EntertheusernameandpasswordfromyourISP.
Youcanchooseeitherwayofthenetworkconnection.IfyouusePPPoEtoconnectinternet,youwillgetadynamicWANIPaddress.ThisIPaddresswill
changefrequently.YoumayusethefunctionofIPchangenotication.
TriggerEmail:whentheIPaddressofthedeviceischanged,anewIPaddresswillbesenttotheappointedmailboxautomatically
TriggerFTP:whentheIPaddressofthedeviceischanged,anewIPaddresswillbesenttoFTPserver.
4.5.2 - Port
GotoCong Network Port.HTTPport,DataportandRTSPportcanbeset.
HTTPPort:ThedefaultHTTPportis80.Itcanbechangedtoanyportwhichisnotoccupied.
DataPort:Thedefaultdataportis9008.Pleasechangeitasrequired.
RTSPPort:Thedefaultportis554.Pleasechangeitasrequired.
4.5.3 - Central Server
Thisfunctionismainlyusedforconnectingnetworkvideomanagementsystem.
1-Check“Enable”.
2-ChecktheIPaddressandportofthetransfermediaserverintheCVMELVOX.ThenenabletheautoreportintheCVMELVOXwhenaddinganew
deviceintheCVMELVOX.Next,inputtheremaininginformationofthedevice.Afterthat,thesystemwillautoallotadeviceID.Pleasecheckitinthe
CVMELVOX.
3.Inputtheabove-mentionedserveraddress,serverportanddeviceIDintherespondingboxes.Click“Save”buttontosavethesettings.
