2-Check“Open”andthenclick“DrawArea”button.
3-DragthemousetosettheROIarea.
4-Setthelevel.
5-Click“Save”buttontosavethesettings.
Now,youwillseetheselectedROIareaisdetailedthanotherareasespeciallyinlowbitratecondition.
4.3 - PTZ Conguration (Fisheye)

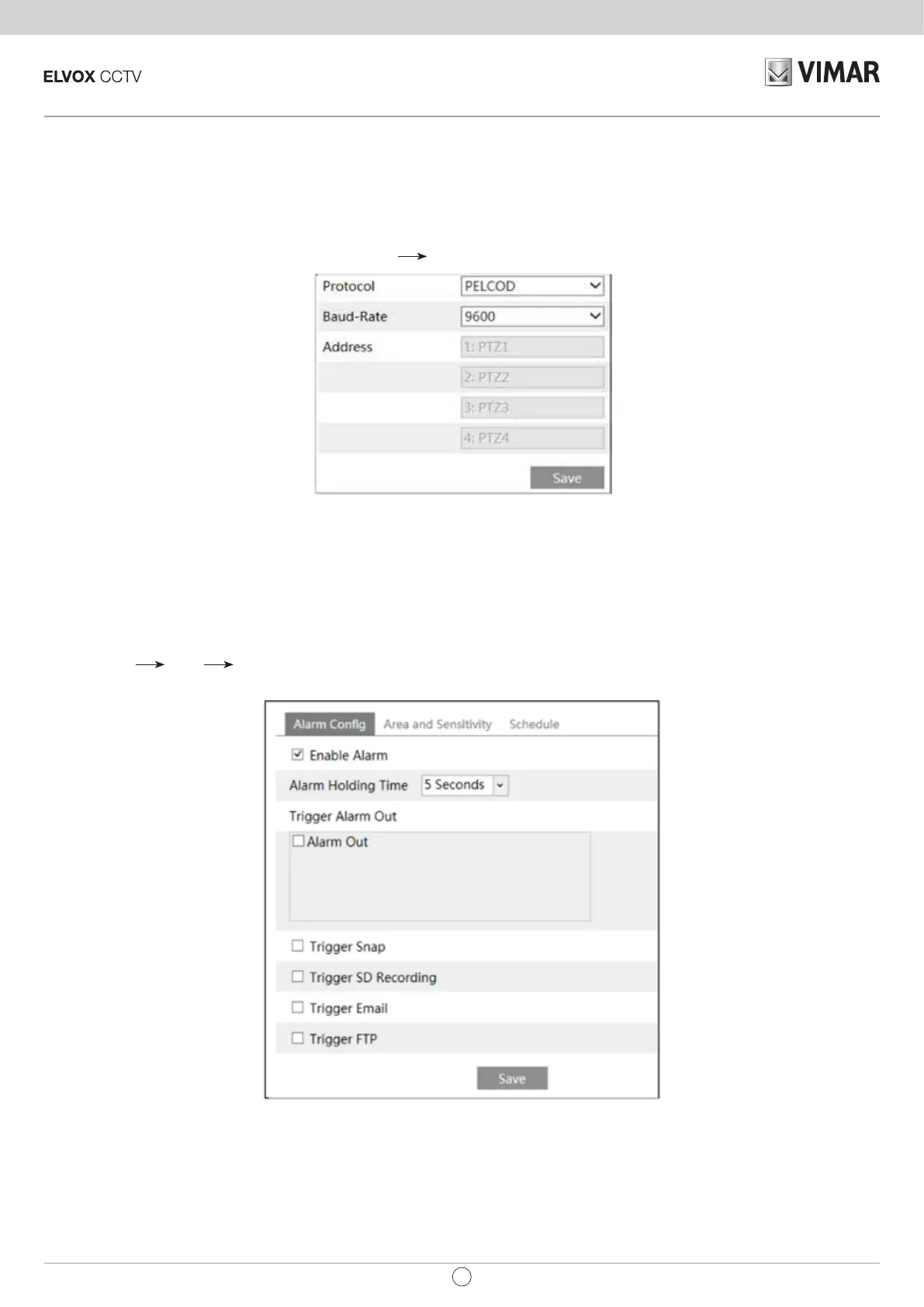

ThePTZofthiscameracanbecontrolledbythekeyboard.ConnectthekeyboardandthecamerathroughRS485interfaceandthensetthecorresponding
protocolandbaud-rateinthecameraandkeyboard.GotoPTZ
Protocolinterfaceasshownbelow.
Heretheprotocolandbaud-ratemustbethesamewiththeseofthekeyboard.
Address:1;youcancontrolPTZchannel1byusingthisaddressinthekeyboard.
Address:2;youcancontrolPTZchannel2byusingthisaddressinthekeyboard.
.....
4.4 - Alarm Conguration
Alarmcongurationincludesfoursubmenus:MotionDetection,AlarmIn,AlarmOutandAlarmServer.
4.4.1 - Motion Detection
To set motion detection:
1-GotoCong Alarm MotionDetectiontosetmotiondetectionalarm.
Check“EnableAlarm”checkboxtoactivatemotionbasedalarm,choosealarmholdingtimeandsetalarmtriggeroptions.
Alarm Out:Ifselected,thiswouldtriggertheexternalrelayoutputondetectingamotionbasedalarm.
Trigger Snap:Ifselected,thesystemwillcaptureimagesonanalarmandsavetheimagesinSDcard.
Trigger SD Recording:Ifselected,therecordwillbetriggeredandsavedinSDcardonanalarm.
Check“EnableAlarm”checkboxtoactivatemotionbasedalarm,choosealarmholdingtimeandsetalarmtriggeroptions.
Trigger Email: Iftheemailandattachpicturecheckboxischecked(EmailaddressshallbesetrstintheMailconginterface),thetriggeredsnappictures
andeventwillbesentintothoseaddresses.
Trigger FTP:If“Uploadingpicture”ischecked,thetriggeredsnappictureswillbesentintoFTPserveraddress.PleaserefertoFTPcongurationchapter
formoredetails.
