Vimar Idea 16577 - Data Display and External Controls

7

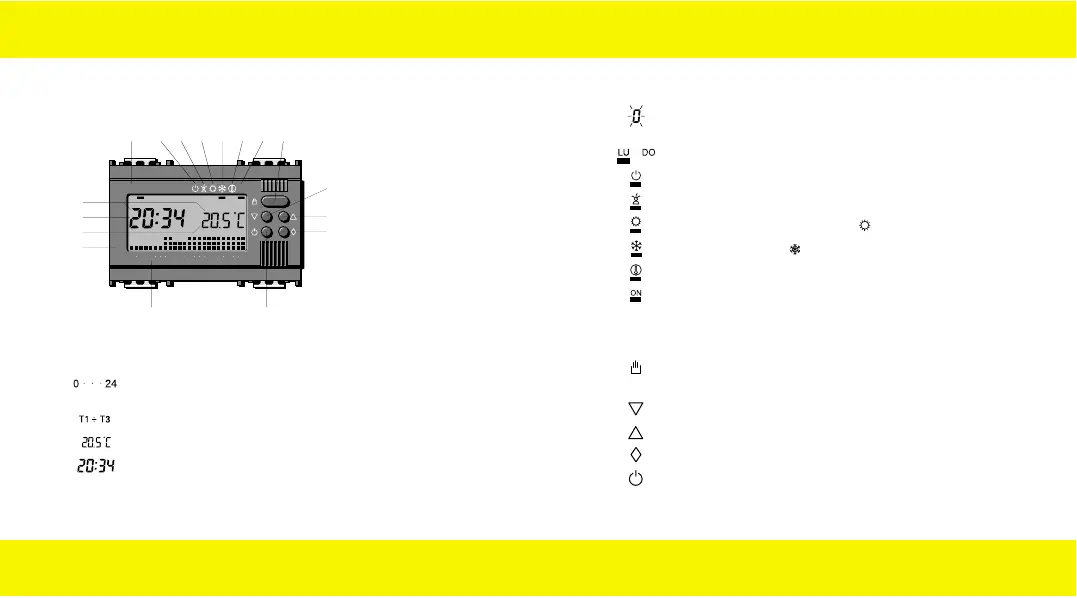

Data display
5 When the figures of the present time and temperature
blink, the batteries capacity is no longer sufficient
6 Day of the week
7 Exclusion of the installation
8 JOLLY program
9 AIR-CONDITIONING program
10 HEATING program
11 ANTIFREEZE function
12 Installation in operation
Controls
13 Selection of the MANUAL or AUTOMATIC operating
mode of the equipment
14 Decrease (temperature, hour, day, etc.)
15 Increase (temperature, hour, day, etc.)
16 Multifunction
17 Exclusion of the installation
÷
6
2. Data display and external controls
Data display
1 Time scale of the daily program diagram
The blinking point in the diagram matches the time displayed
2 Temperature levels
3 Digital thermometer
4 Digital clock
MALU ME GI VE SA DO ON
048121620
T3
T2
T1
117
5
4
3
16
15
14
2
6*
6*: Days of the week

LUMonday
MATuesday
MEWednesday
GI Thursday
VEFriday
SASaturday
DOSunday
7 8 9 10 11 12 13
