2.5 "POSITION" menu
In the "position" menu you can define the floor data, deceleration zones, parking locations.
NB: The first thing to do is to "Zero" (moving the machine to the magnet installed on the rail). The
maximum permitted length is 50 metres.

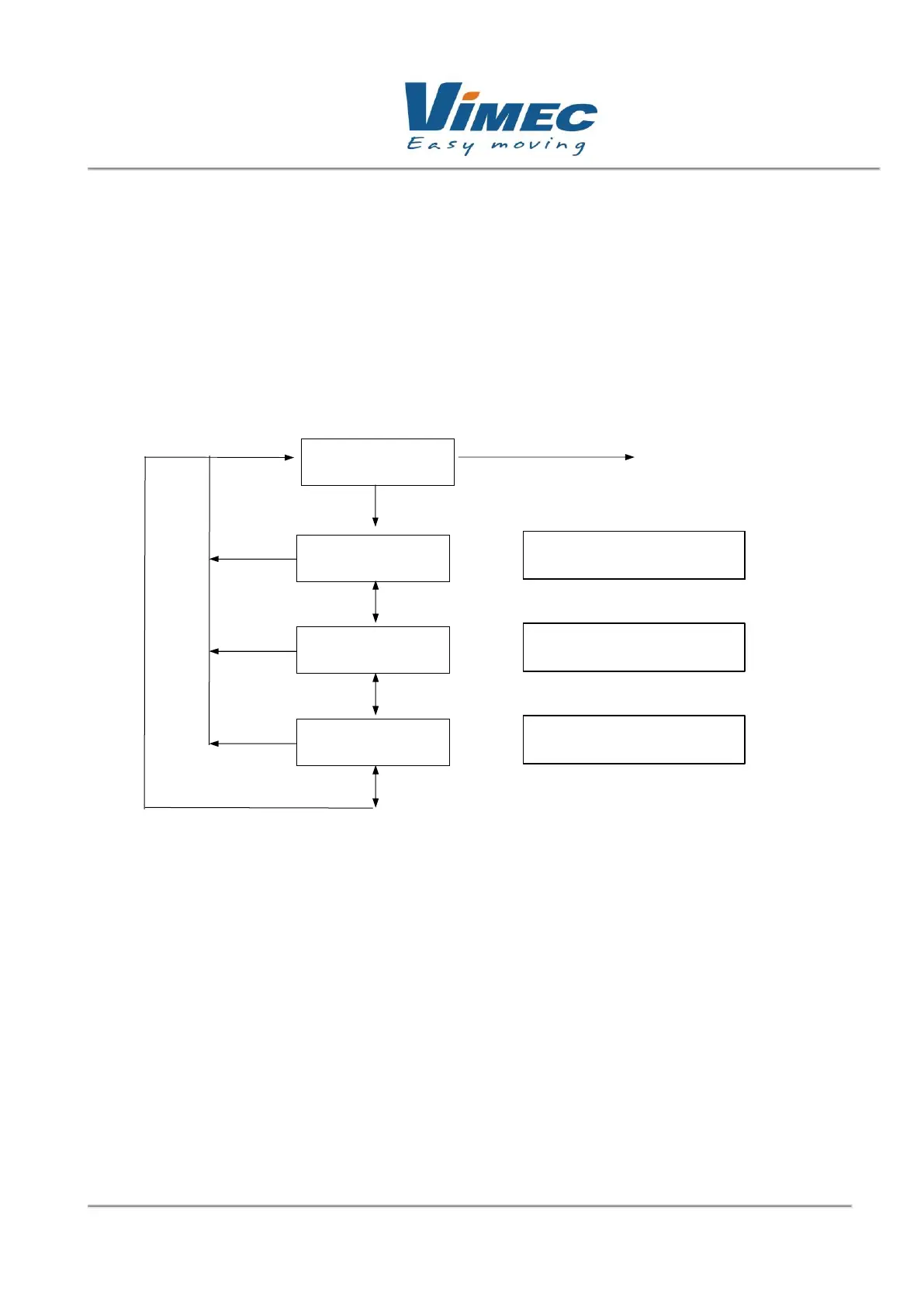

Figure 8: "POSITION" submenu block diagram.
Select mode :
Position
Floor data from floor 0 to
floor 1….5
Esc
“
MAIN”
MENU
Enter
Position :
Floors
x
Up
Down
Esc
Position :
Park.
x
Up
Down
Esc
Position :
Slow zone
speed
x
Up
Down
Esc
Esc
Floor recall value
parking
location
Slow zone data from zone 1
to zone 15
