vimec V59 User Manual

Page 6
The "inputs test" menu is a submenu of the "test" menu and allows you to check the status of all
inputs:
Eg. Ascent. If pressed the console displays 1, not pressed the console displays 0.

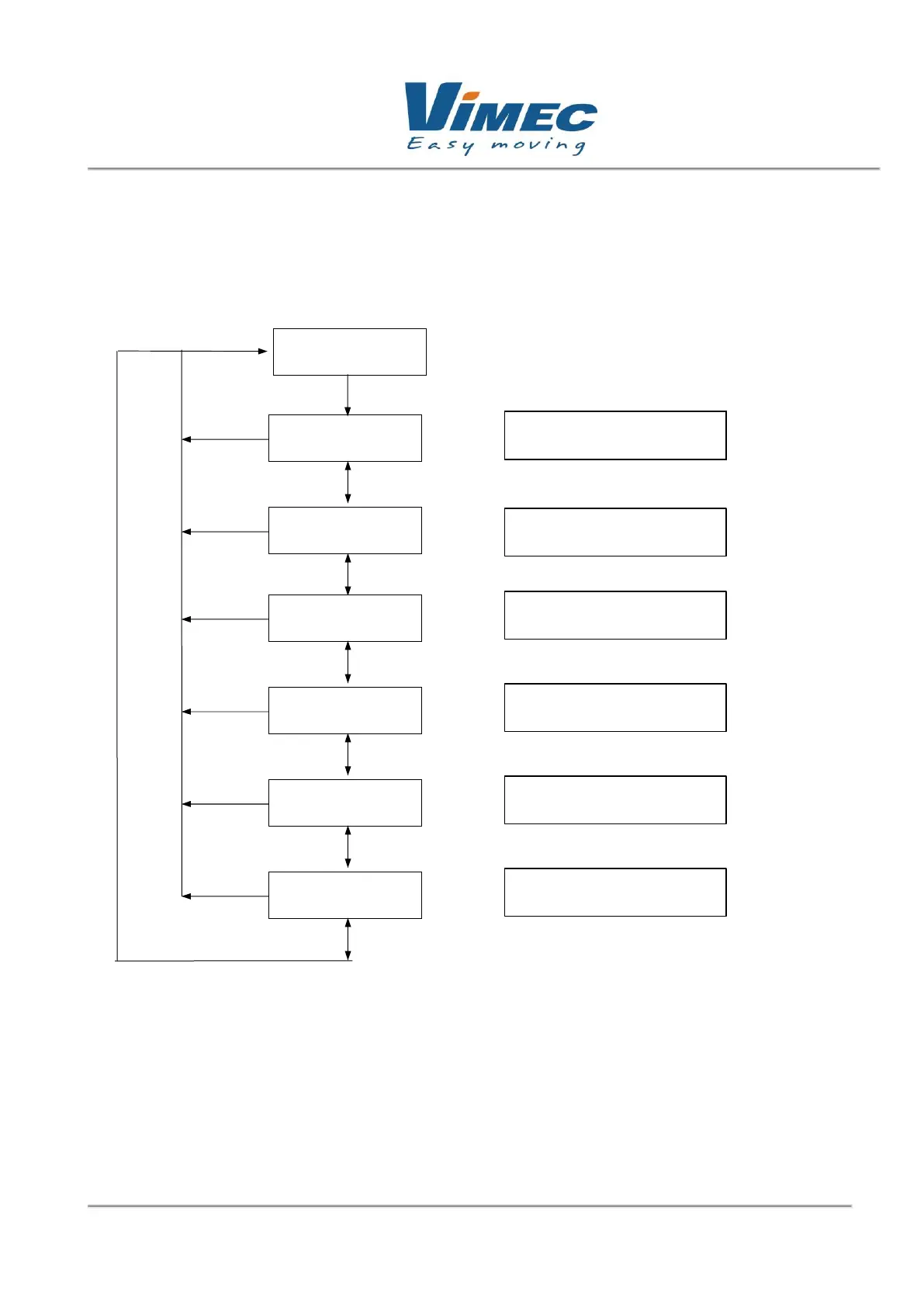

Figure 4: "INPUTS TEST" submenu block diagram
Line: tilt-housing-SB0
Inputs :
Tilt/SB0
x
Up
Down
Esc
Inputs :
inputs Test
Enter
Inputs :
Zero
Enc.
SQ16
x
Up
Down
Esc
Inputs :
Descent x
Up
Down
Esc
Inputs :
Park x
Up
Down
Esc
Inputs :
SQ2/SQ4 x
Up
Down
Esc
Inputs :
Ascent x
Up
Down
Esc
Zero sensor
Descent
Parking Recall
Safety gear – Over-run
Ascent
Esc
