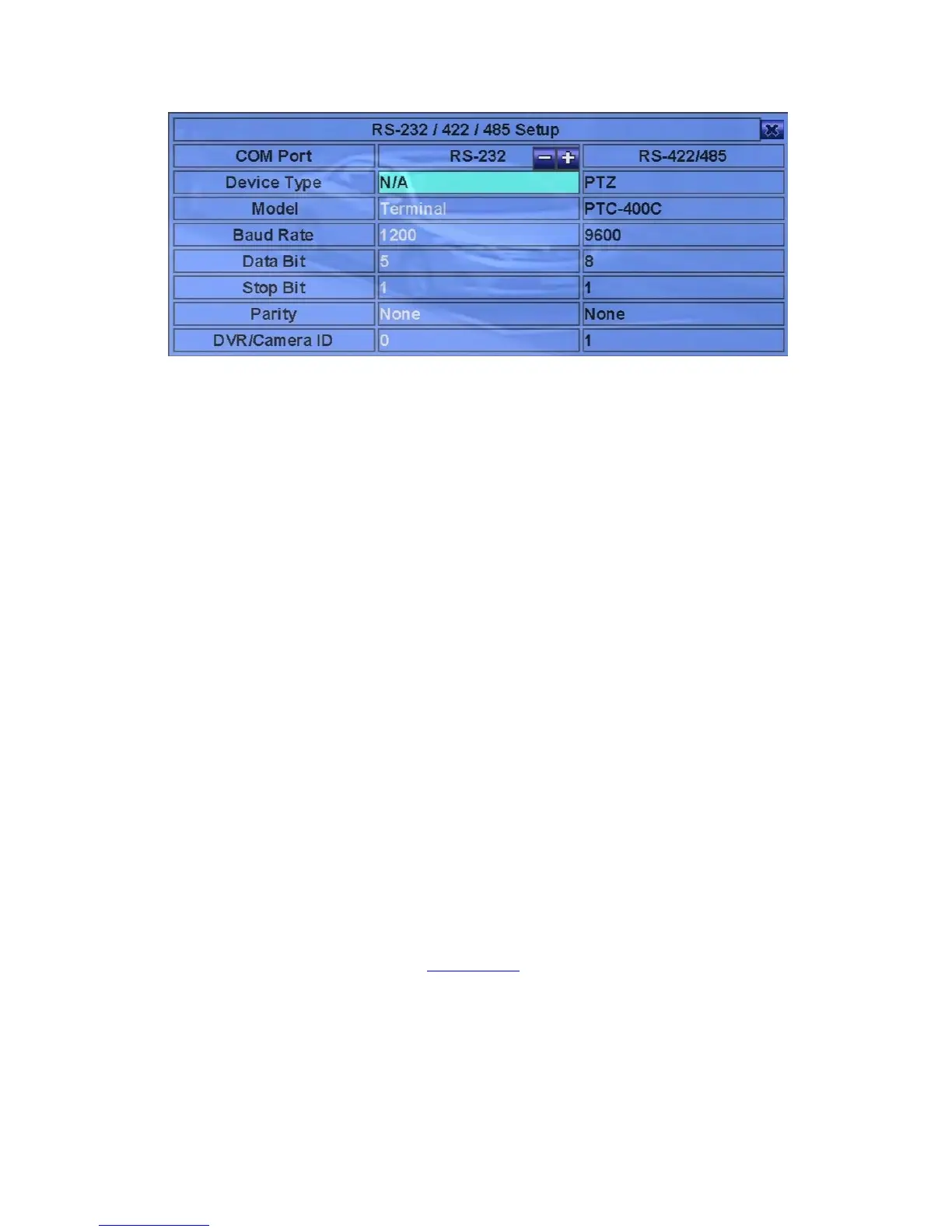

The RS-232/422/485 Setup allows the administrator to setup RS-232 control port, and
RS422 or RS-485 control port. Please refer to the manuals for the connected devices
- PTZ cameras or keyboard controllers – to set these items in RS-232/422/485 Setup.
The general operations are as below:
! ▲▼◄► (Mouse: Left click)
Press these buttons to select the items.
! ESC (Mouse: Right Click)
Press this button to escape from this screen, and return to Setup Menu display. If
the Save dialog is shown, press ENTER to exit and save, ESC (Mouse: Right
Click) to exit without saving.
Following is a brief description for each item and its specific operations:
! Device Type – PTZ, Keyboard, GPS, POS, PTZ+Keyboard or N/A (Not
Available). Press +/- buttons to change the type. Please note that PTZ can
only be selected for either RS-232 or RS-422/485, but not both.
! Model – PTZ model (for PTZ and PTZ+Keyboard), Keyboard model, GPS
protocol, or POS printer type of the connected devices. The PTZ models
supported include Pelco D protocol Dome, SamSung SCC-641P, Kalatel
Cyber Dome, PIH-series, Dynacolor, Bosch AutoDome, Video Trek, etc.
The Keyboard models supported include Terminal (EX. VT-100) and Control
Protocol. For Terminal type, please use the corresponding ASCII characters
for code as described in Appendix-C. The GPS protocol supported is
NMEA0183. The POS printer types supported include Epson General (EX.
Epson-TM200, Epson-TMU300, Epson-TMU675, Epson-TMT882,
Epson-RPU420, and Epson-MD332S) and Epson-TMU295. Press +/-
buttons to change the supported model (or protocol). Please note that if
PTZ+Keyboard is selected for Device Type, the Keyboard model is
always Control Protocol, and the other settings (Baud Rate, Data Bit,
