Viper 480XV - Wiring Quick Reference Guides

50
©
2005
Directed Electronics, Inc. all rights reserved

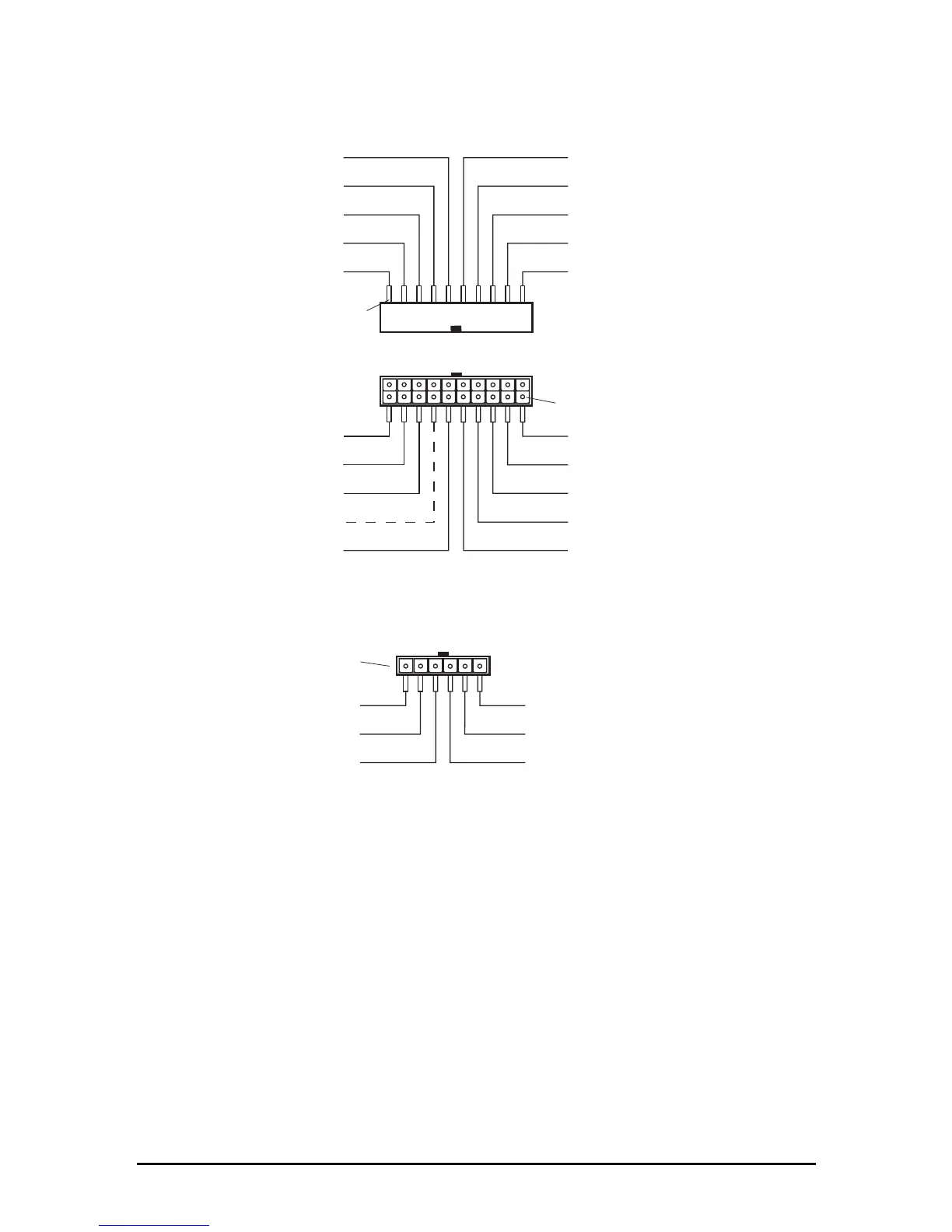

Wiring Quick Reference Guide H1 & H2
6 Pin Aux Harness H2
Pin 1
LT. GREEN/BLACK - Factory Alarm Disarm
VIOLET/BLACK - Channel 4
WHITE/BLACK - Channel 5
LT. BLUE - 2nd Unlock
ORANGE/BLACK - Acc
GREY/BLACK - Channel 6
20 Pin Main Harness H1
Pin 1
Pin 20
ORANGE - Ground When Armed
BLACK - Ground
GREEN - Door (-)
BLUE - Boot (-)
VIOLET - Door (+)
RED/WHITE- CH 2 (-)
BLACK/WHITE 1 - Interior Light CO
M
BLACK/WHITE 2 - Interior Light N.O.
WHITE 2 - Indicator Light
WHITE 1 - Indicator Light (+/-)
BROWN/BLACK - Unlock N.C.
WHITE/BLUE - CH 3 (-)
BROWN - Horn (-)
Not Used
GREY - Bonnet (-)
VIOLET/BLACK - Lock N.O.
GREEN/BLACK - Lock COM
WHITE/BLACK - Lock N.C.
VIOLET - Unlock N.O.
BLUE/BLACK - Unlock COM
