H1/1 ORANGE (-) ground-when-armed output
This wire supplies a (-) ground as long as the system is armed and will turn off when the system is
disarmed. This wire does not provide a ground when AutoImmobilised only. This output can be
used to control additional accessories such as window closers, voice modules or pagers.
H1/2 BLACK (-) chassis ground connection
(see
Pigtail Harness Wire Connection Guide
section)
H1/3 GREEN (-) door trigger input

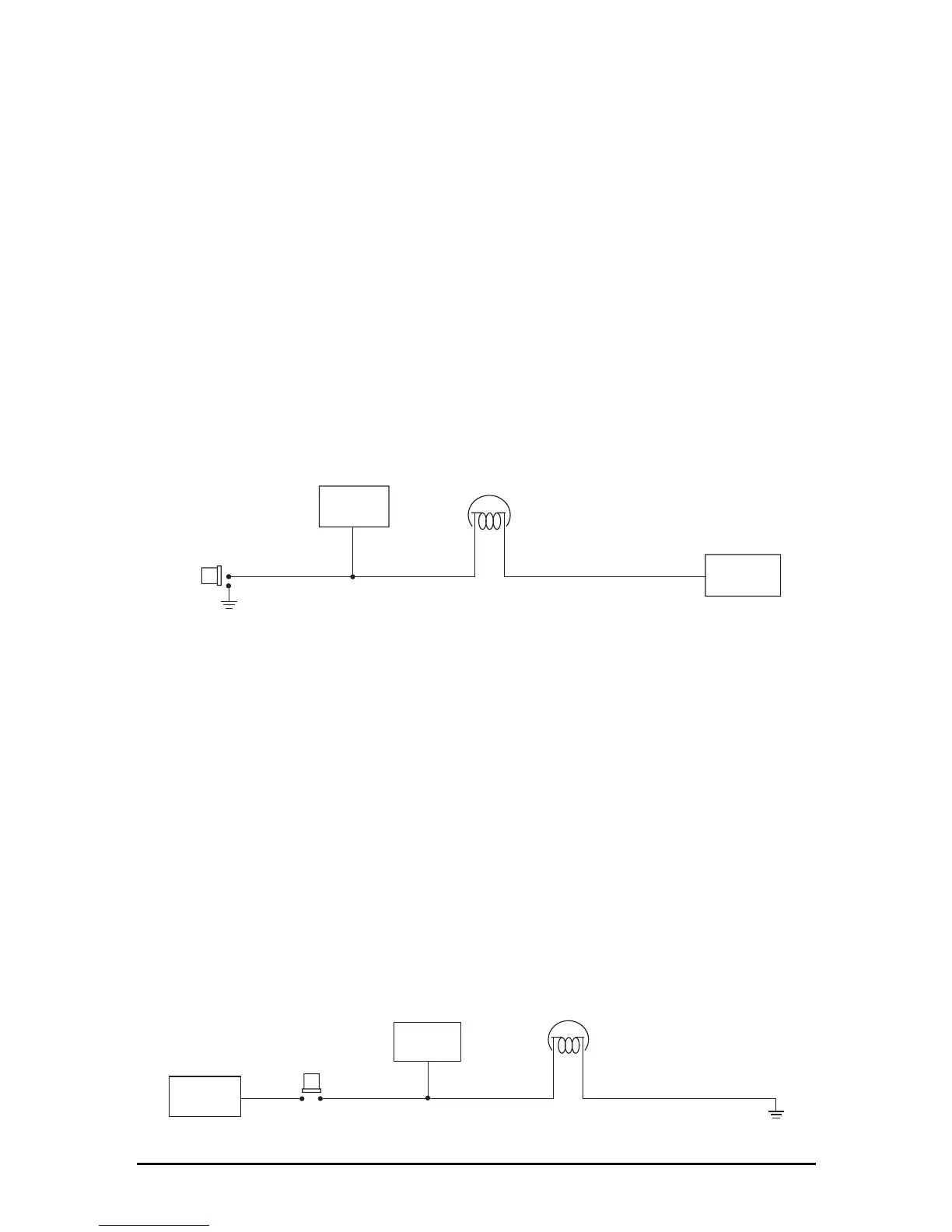

Most vehicles use negative door trigger circuits. Connect the GREEN wire to a wire showing
ground when any door is opened. When connecting to newer model vehicles there is generally a
need to use individual door triggers. This wire will report Zone 3 if triggered.
NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6, or the 998T
Bitwriter
®
can be used to turn Bypass Notification off.
H1/4 BLUE (-) instant trigger input
This input will respond to a negative input with an instant trigger. It is ideal for boot pins and will
report on Zone 1. It can also be used with Directed single-stage sensors. The wire can also be used
to shunt sensors during operation of auxiliary channels or remote start. (See
Bypassing Sensor
Inputs
section of this guide.)
H1/5 VIOLET (+) door trigger input
Connect this VIOLET wire to a wire that shows (+)12V when any door is opened. This wire will
report Zone 3.
NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6, or the 998T
Bitwriter
®
can be used to turn Bypass Notification off.
