Vision Engineering EVO Cam User Manual

ASSEMBLY
www.visioneng.com/support
4

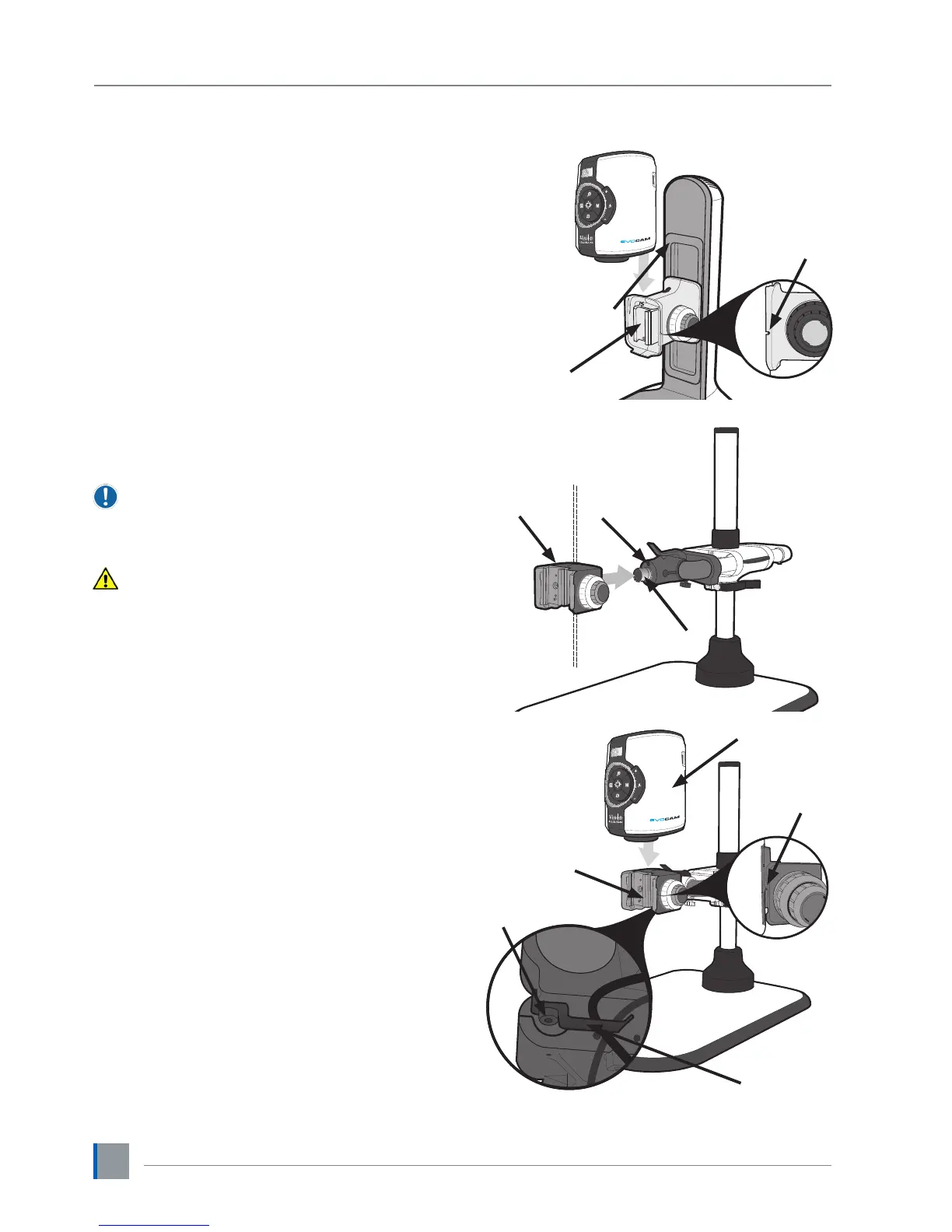

Stand mounts
Ergo stand
` Locate EVO Cam
u
on to the stand’s dovetail
interface
v
.
` Tighten securing grub screw
w
with Allen key
provided
Multi-axis stand
` Place focus assembly
u
on the mounting post
v
so that the locator pin is located in the locator pin
recess
w
.
To change the camera rotation, remove the
locator pin from the focus assembly before
attaching it to the mounting post and attach the
focus assembly in the desired orientation.
Take care when mounting EVO Cam.
` Ensure the mounting plate is perpendicular to the
base or work bench.
` Tighten the 2x grub screws
x
at the top of the focus
assembly and the 2x grub screws
y
at the bottom of
the focus assembly.
` Locate EVO Cam
u
on to the stand’s dovetail
interface
v
.
` Tighten securing grub screw
w
with Allen key
provided
` Secure the cable retaining clip
x
under the knuckle
of the multi-axis stand using the screw
y
provided.
The clip can be secured to the left or right side.
v
w
u
v
w
u
y
x
w
u
v
y
x
