Vision Engineering EVO Cam User Manual

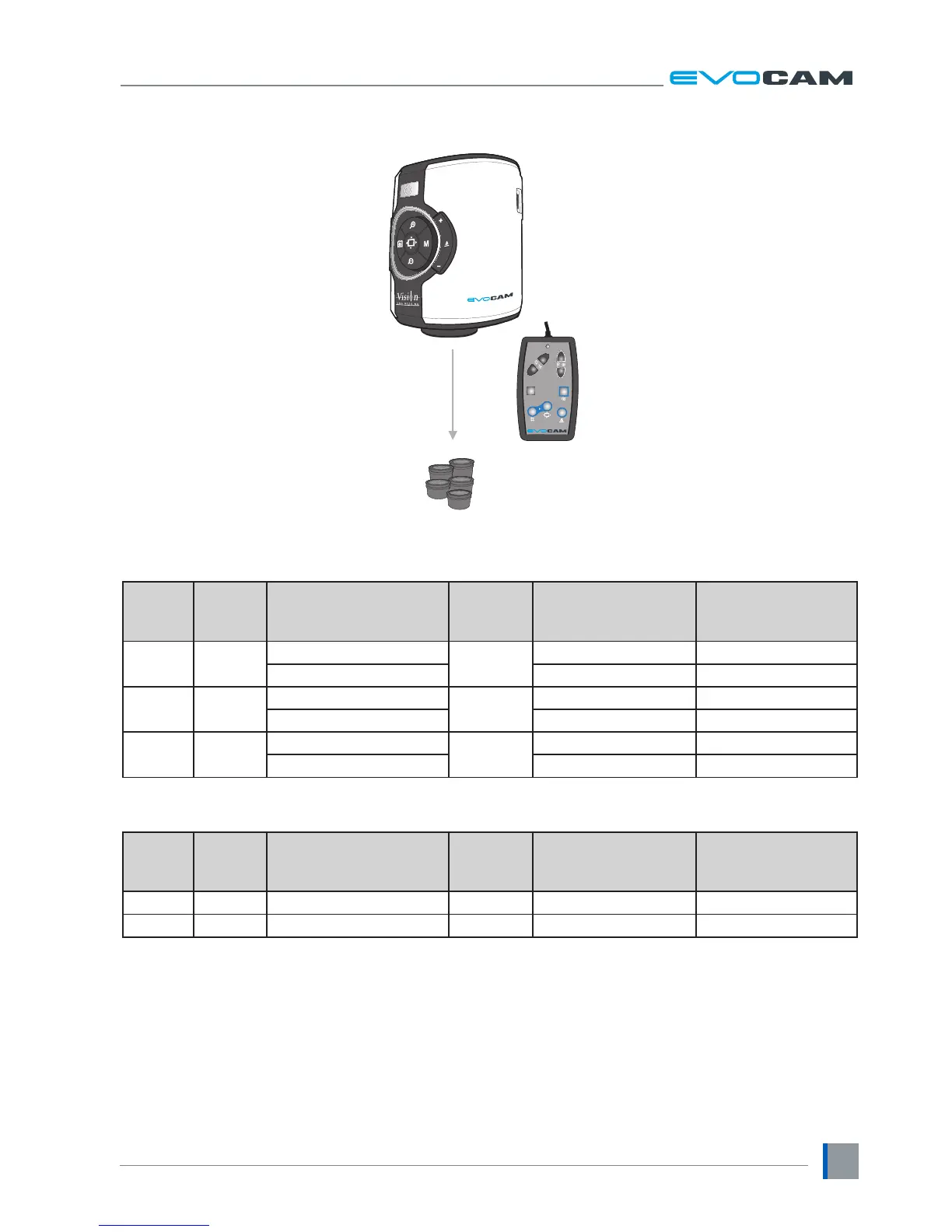

SYSTEM DIAGRAM
www.visioneng.com/support
1
SYSTEM DIAGRAM
Sub-assemblies
Optical data
Objective
lens
Part
number
Magnication
zoom range*
Working
distance
Field of view
at min. zoom
(width / height)
Field of view
at max. zoom
(width / height)
0.45x ECL045
Full eld: 4.0x – 67x
176mm
134mm / 75mm 8.0mm / 4.5mm
Optimal: 6.7x – 67x 80mm / 45mm 8.0mm / 4.5mm
0.62x ECL062
Full eld: 5.5x – 92x
128mm
95mm / 53mm 5.7mm / 3.2mm
Optimal: 9.2x – 92x 57mm / 32mm 5.7mm / 3.2mm
1.0x ECL100
Full eld: 8.9x – 148x
75mm
55mm / 31mm 3.3mm / 1.9mm
Optimal: 14.8x – 148x 33mm / 19mm 3.3mm / 1.9mm
* with 25” monitor
Objective
lens
Part
number
Magnication
zoom range*
Working
distance
Field of view
at min. zoom
(width / height)
Field of view
at max. zoom
(width / height)
4 dioptre ECL040 1.8x – 52x 250mm 295mm / 172mm 10.3mm / 5.8mm
5 dioptre ECL050 2.3x – 65x 200mm 234mm / 137mm 8.2mm / 4.6mm
* with 25” monitor
Objective lenses
Control Console
EVO Cam
(see Optical data tables)
MEM
M3
AF/MF
M2
M1
AE/ME
ECH 002
ECX150
