Vision Engineering EVO Cam User Manual

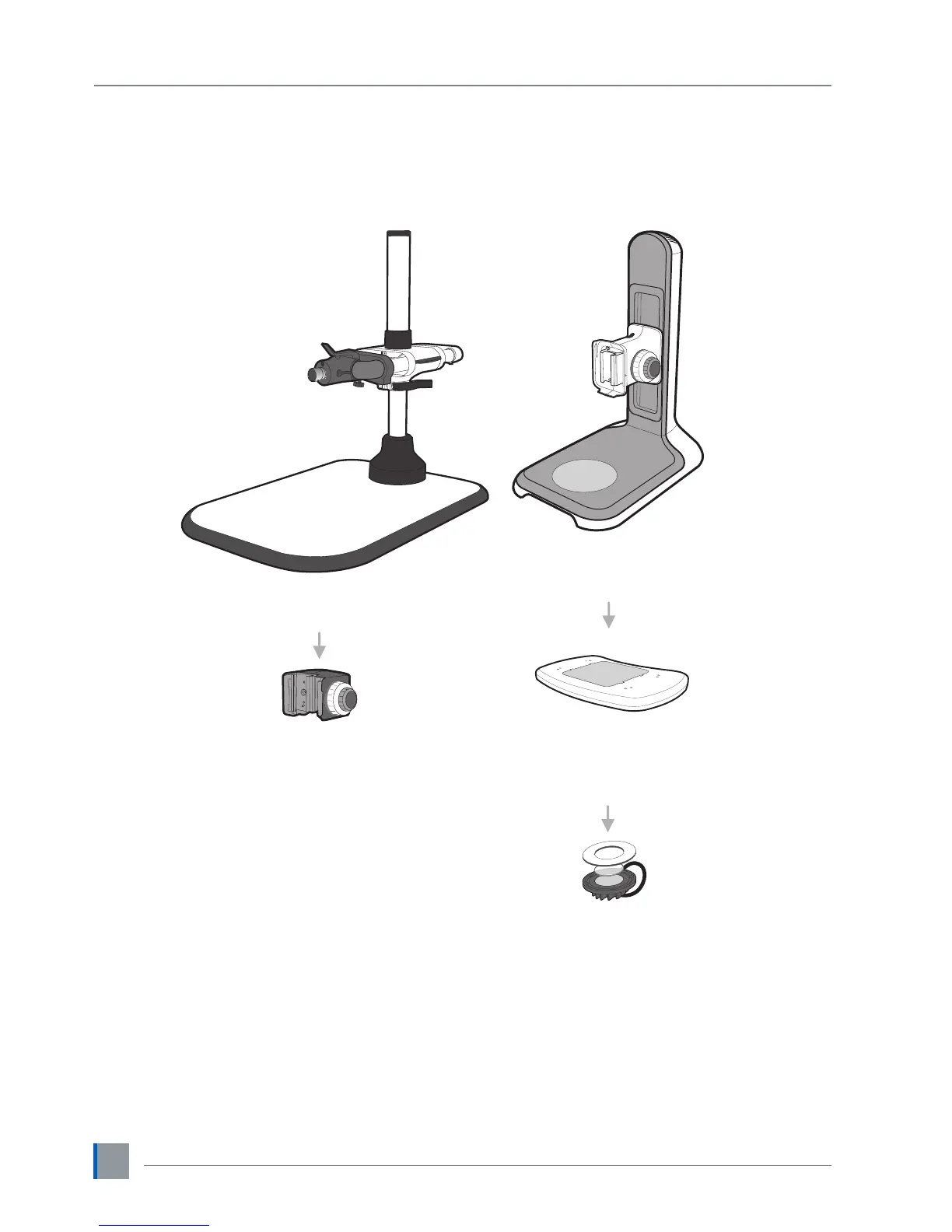

SYSTEM DIAGRAM
www.visioneng.com/support
2
Stand options
Multi-axis stand
Focus assembly
Ergo stand
with focus
Note: WD denotes Working Distance.
Transmitted substage illumination
EVS011
EVB020
EVF111
Multi-directional
floating stage
EVS120
EVB010
EVL0450.45x
2.7x – 27x magnification super-long working distance lens (0.45x),
WD 176mm - supplied secondary ringlight lens to optimise illumination
EVL0620.62x
3.7x – 37x magnification extra-long working distance lens (0.62x),
WD 128mm - supplied secondary ringlight lens to optimise illumination
EVL1001.0x
6.0x – 60x magnification lens (1.0x), WD 75mm
EVL1501.5x
9.0x – 90x high magnification lens (1.5x), WD 42mm
- supplied secondary ringlight lens to optimise illumination
EVL2002.0x
12x – 120x high magnification lens (2.0x), WD 29mm
- supplied secondary ringlight lens to optimise illumination
Objective lenses
