Operation 53
© 2015 Vision Engraving Systems

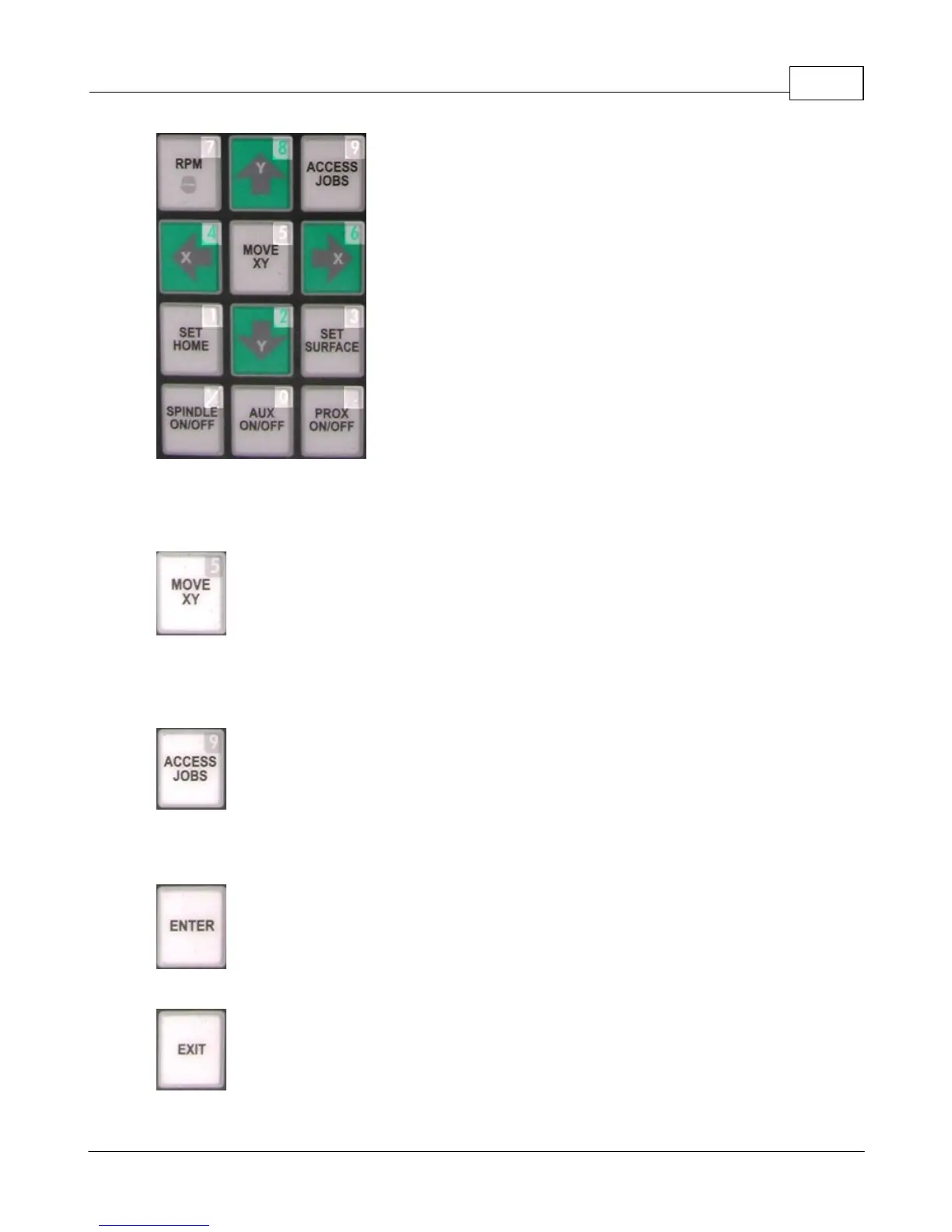

Numeric Buttons - The Numeric buttons are used when entering
numbers. The Pendant will automatically switch to numeric mode when accessing menu items that
require numerical input. The numbers 0 - 9, as well as the forward slash "/" and period "." are available.
Move XY Button - The Move XY button allows the user to move the spindle to an exact
location. Press the Move XY button, then using the Numeric buttons, enter the X coordinate and press
the Enter button. Enter the Y coordinate using the Numeric buttons, then press the Enter button. Press
the Enter button one more time to jog the spindle to these coordinates, or press Exit to cancel this
operation.
Access Jobs Button - When connected to Vision Machine Tools - If there is no job in
the machine, pressing Access Jobs will display a list of jobs that are stored on the computer's hard
drive. Use the Y up and down jog buttons to move the cursor on the Pendant screen to the job to be
engraved and then press Enter to select the job. Pressing Start will run the job.
Enter Button - The Enter button is used to confirm an operation or to select a highlighted
item in the menu system.
Exit Button - The Exit button is used to either cancel an operation, or to exit a menu.
