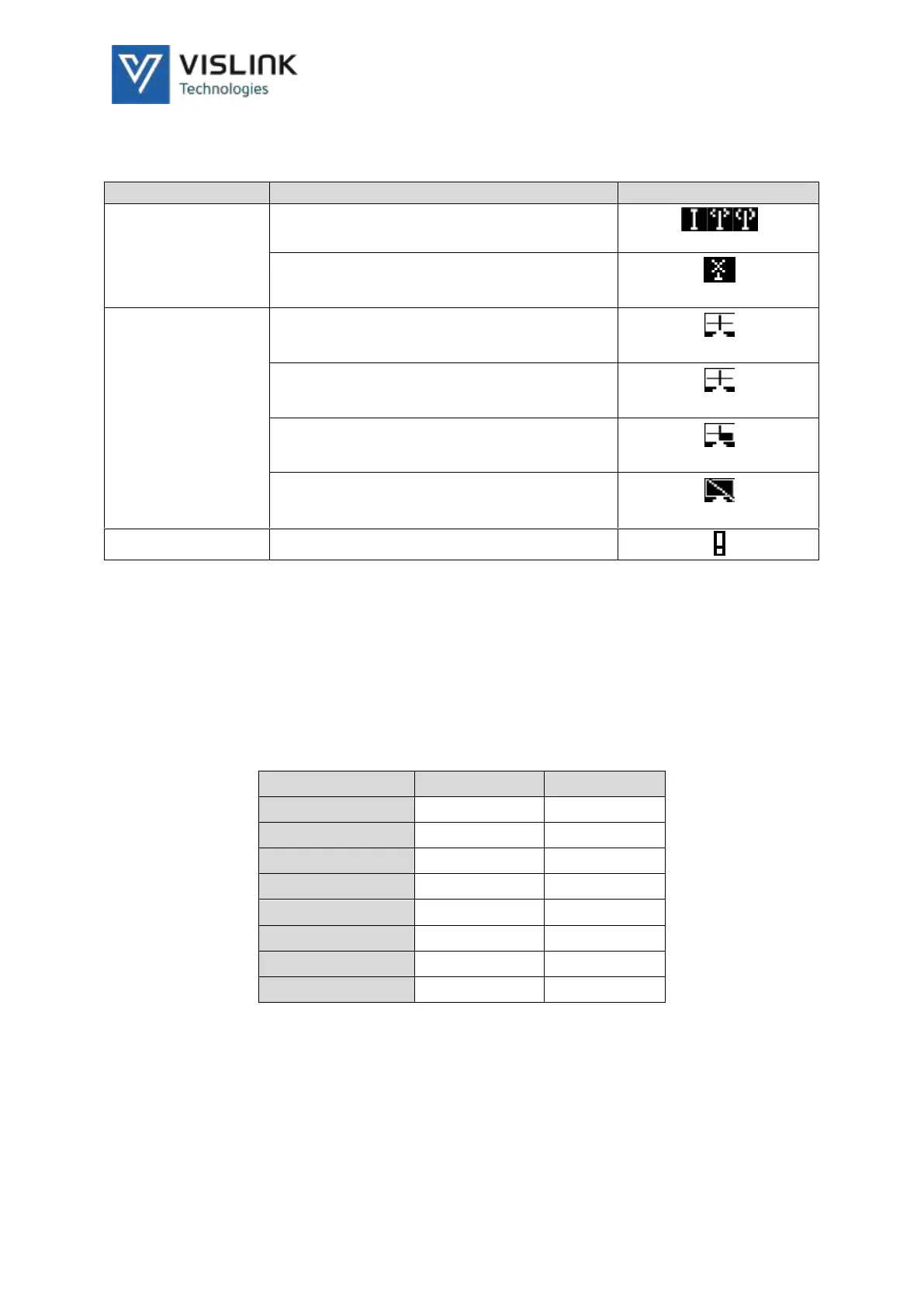

5. Software Menus
5.1. Icons
Icon
Condition
Format
Tx Icon
RF on
(Animated antenna icon)
RF off
(Antenna icon with cross)
Video Icon
Video input locked
(Quadrant solid white)
Video not locked
(Quadrant flashes)
Video input not selected
(Quadrant blank)
All Video inputs not selected
(Screen out icon)
Alarm
indicates a system error or warning
Table 5-1 Icons Table
NOTE: The Video locked icon shows any active screens shaded in white.
5.2. SDI Input Type
The InCam accepts both Level-A and Level B 3G-SDI streams. When using
UHD or 4K video formats, the video carries over a quad link SDI interface.
-
Quad Link
SMPTE ST-
UHDp60
4x 3G-SDI
425-5
UHDp59
4x 3G-SDI
425-5
UHDp50
4x 3G-SDI
425-5
UHDp30
4x HD-SDI
425-3
UHDp29
4x HD-SDI
425-3
UHDp25
4x HD-SDI
425-3
UHDp24
4x HD-SDI
425-3
UHDp23
4x HD-SDI
425-3
Table 5-2 SDI Input Type
5.3. Audio Settings
The InCam supports up to eight AAC or four MPEG compressed audio pairs
at various bit rates from 32kbps up to 576kbps. It also supports four
uncompressed PCM or Dolby-E pass-through pairs.

Vislink InCam-HG Specifications

General

Brand	Vislink
Model	InCam-HG
Category	Transmitter
Language	English
