Vislink InCam-HG User Manual

Template Operators Manual
InCam Setup
Issue No: 1 Page: 37
Ref: INHG-ASUM-70XX Copyright © 2020 IMT and Vislink are Vislink Technologies Inc. companies
7. InCam Setup
7.1. Camera Hardware
The InCam-HG requires the Grass Valley LDX-86N 4K-RF camera for 4K
wireless transmission,
The InCam-HG interfaces with all Grass Valley LDX cameras with up to
1080p standards.
Please refer to Grass Valley camera manuals for License options and Video
Format limitations.
7.2. Turning on
WARNING: Do not power Transmitter without OFDM Antenna fitted.
The Grass Valley LDX camera powers through the Battery Plate or EXT DC
IN, XLR
The InCam Back has a three-position power switch:
Position
Function
Down
Off
Mid-Point
Standby (no video into
InCam/no RF output)
Up
On (Video/RF output active)
Table 7-1 On/Off Switch Position

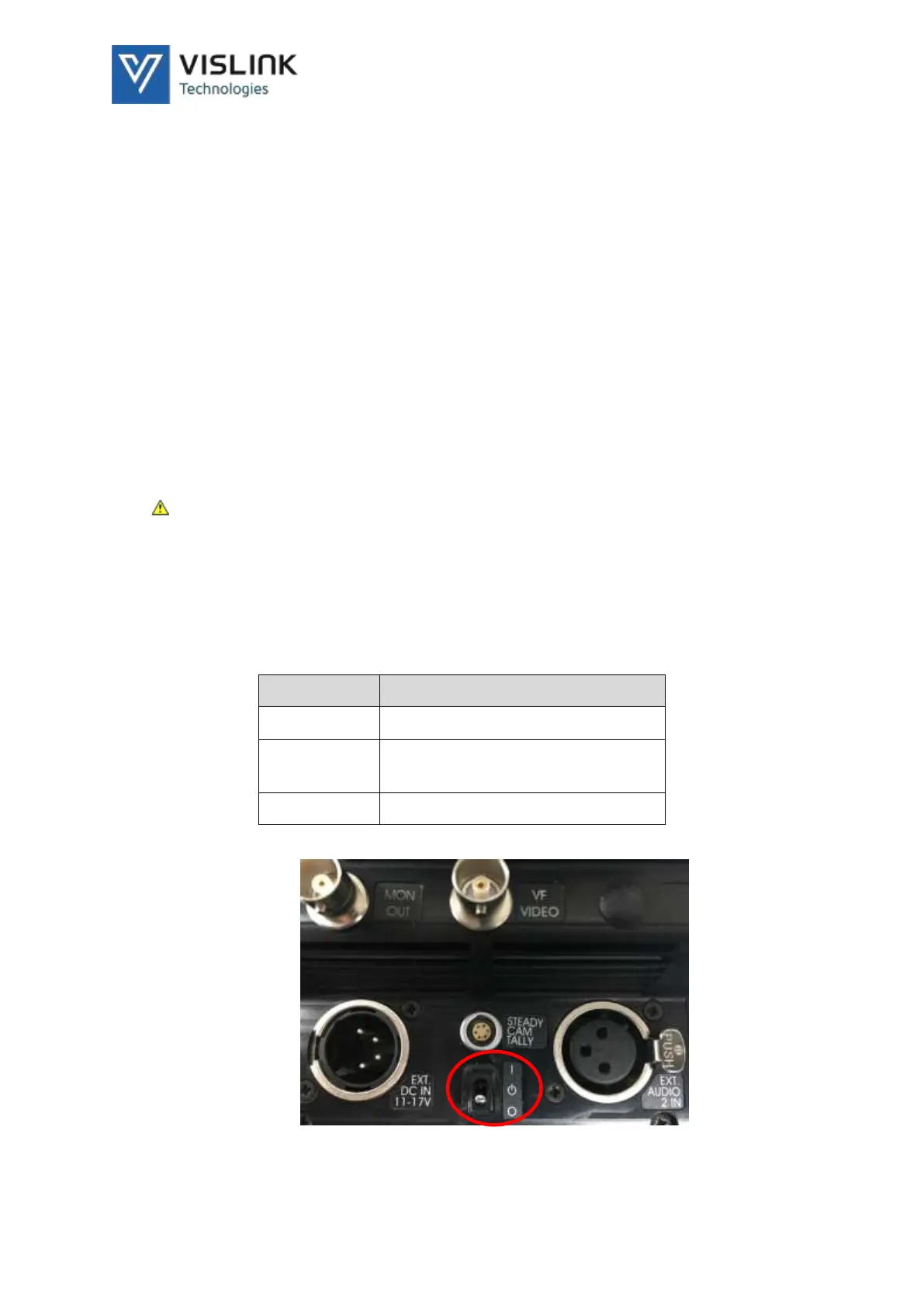

Figure 7-1 On/Off Switch
