Decoder audio output:
o Channel 1 – Analogue Camera Head
o Channel 2 – Analogue Camera Head (duplicated)
o Channel 3 – SuperSlot AES 1
o Channel 4 – SuperSlot AES 2
7.4.2. External Audio 2
The Rear External Audio 2 requires configuring as Audio Pair 1. The
Camera Analogue audio requires configuring as Pair 2,
o Audio 1, Pair 1,
▪ Analogue (Ext Audio 2)
o Audio 1, Pair 2,
▪ Embedded – Group 1, Pair 1 (Camera analogue Audio)
Decoder audio output:
o Channel 1 – Analogue Ext Audio 2
o Channel 2 – No Audio
o Channel 3 – Analogue Camera Head
o Channel 4 – Analogue Camera Head (duplicated)
NOTE: Decoder outputs based on the Decoder Service mode set to
Program Number.
7.5. InCam Back Indications
The InCam-HG has camera control Green LED indications:
• TX LED – Only flashes when in Generic (Transparent) mode or Return Data
mode is on to indicate data from the camera to the MVL transmitter.
• RX LED – Flashes to indicate valid Camera Control data received. Only
flashes when UHF frequency and Camera address (ID) is correct.

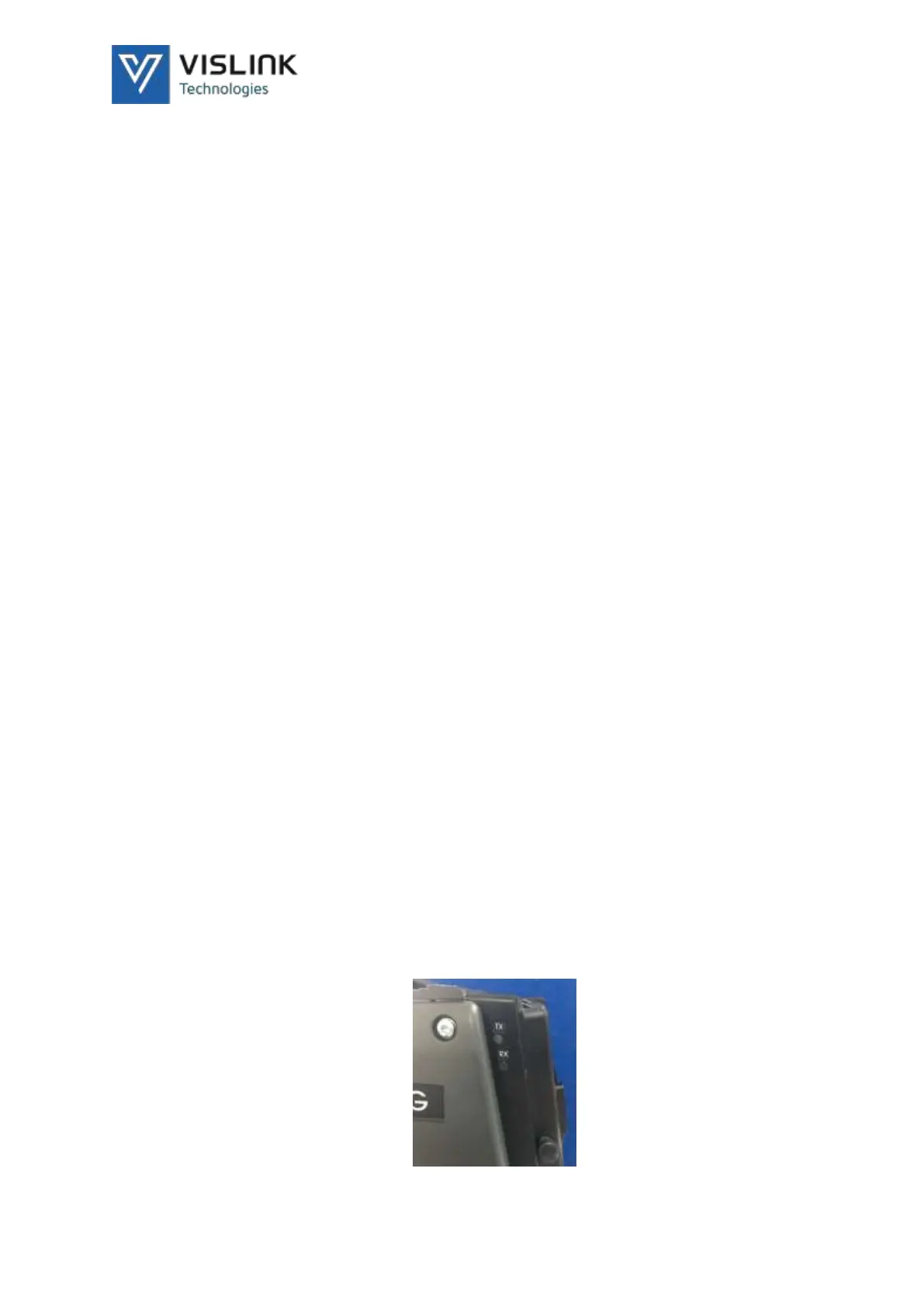

Figure 7-2 Camera Control Indication LED’s
