Network Video Decoder SVP-1000 Full Manual
11

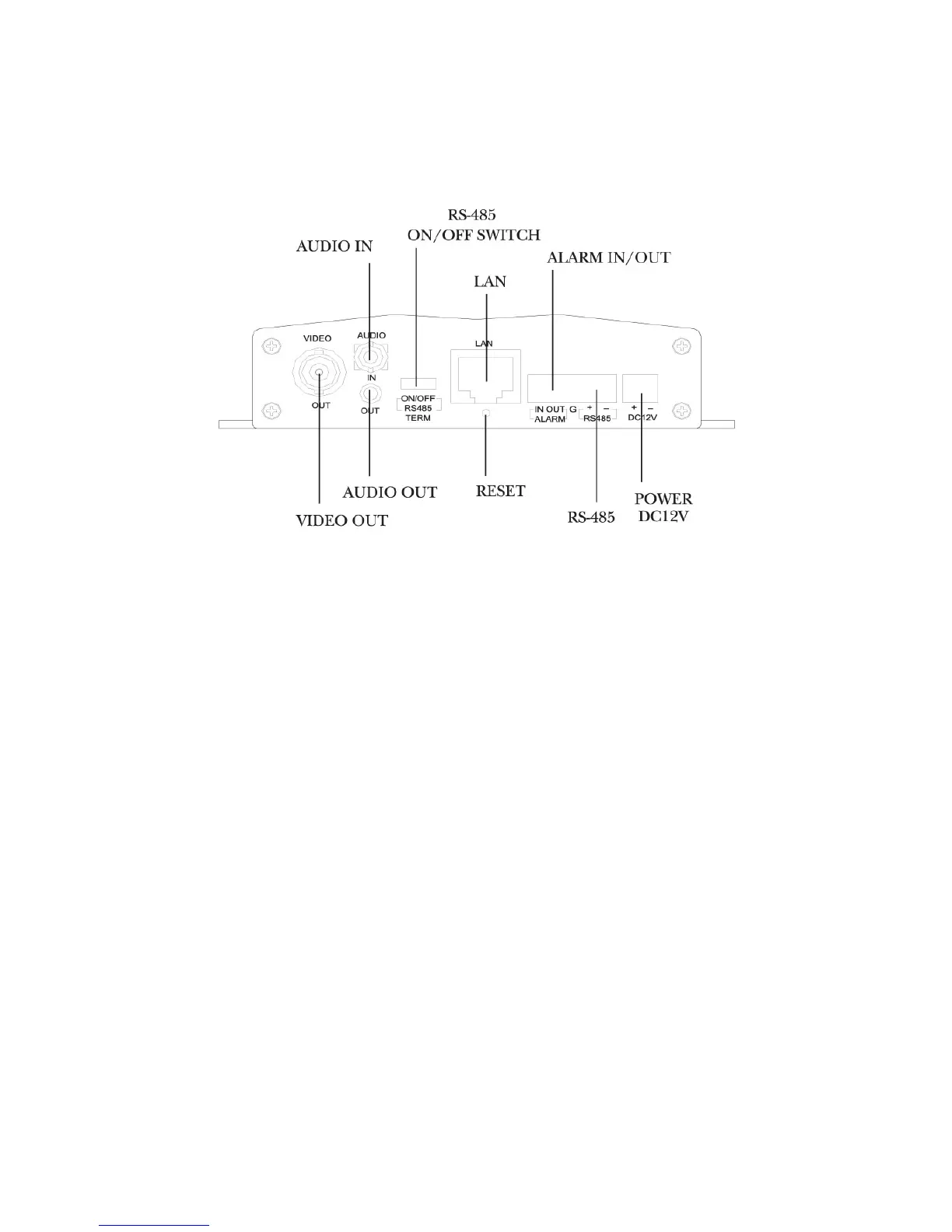

1) VIDEO OUT : 1Vp-p Composite, 1Channel
2) AUDIO IN : MONO Audio Input, 1Channel
3) AUDIO OUT : MONO Audio Output, 1Channel
4) POWER : DC12V /1A
5) ALARM IN/OUT : Port for alarm input, output
6) RS-485 : Port for P/T/Z control.
7) LAN : RJ-45 Ethernet Connector
8) RESET : Initial state which is factory default
9) RS-485 ON/OFF : RS-485 On/Off switch
10) ALARM IN/OUT : TTL LEVEL input/output
