6 Loc3-10Tx Transmitter
Select the “Transmitter Link”. Check that the radio module is enabled. If not, press the return button to enable the Transmitter
Link.
After a short scan, the available devices will be displayed. Highlight the one to be selected and press the return button. Press
the information button to return to the main menu.
Transmitter Link
Transmitter Link
Loc3-10Tx
Enabled
Forget 40%
The “Beacon” icon on the transmitter should not be ashing anymore at this point. A solid icon indicates that the link has been
established.
From the main menu select “Transmitter Control” option that will become visible when the two devices are linked.
Menu
Imp/Metric
Continuous info.
GPS source
Bluetooth Pairing
Transmitter Link
Transmitter Control
Meter
Off
Internal

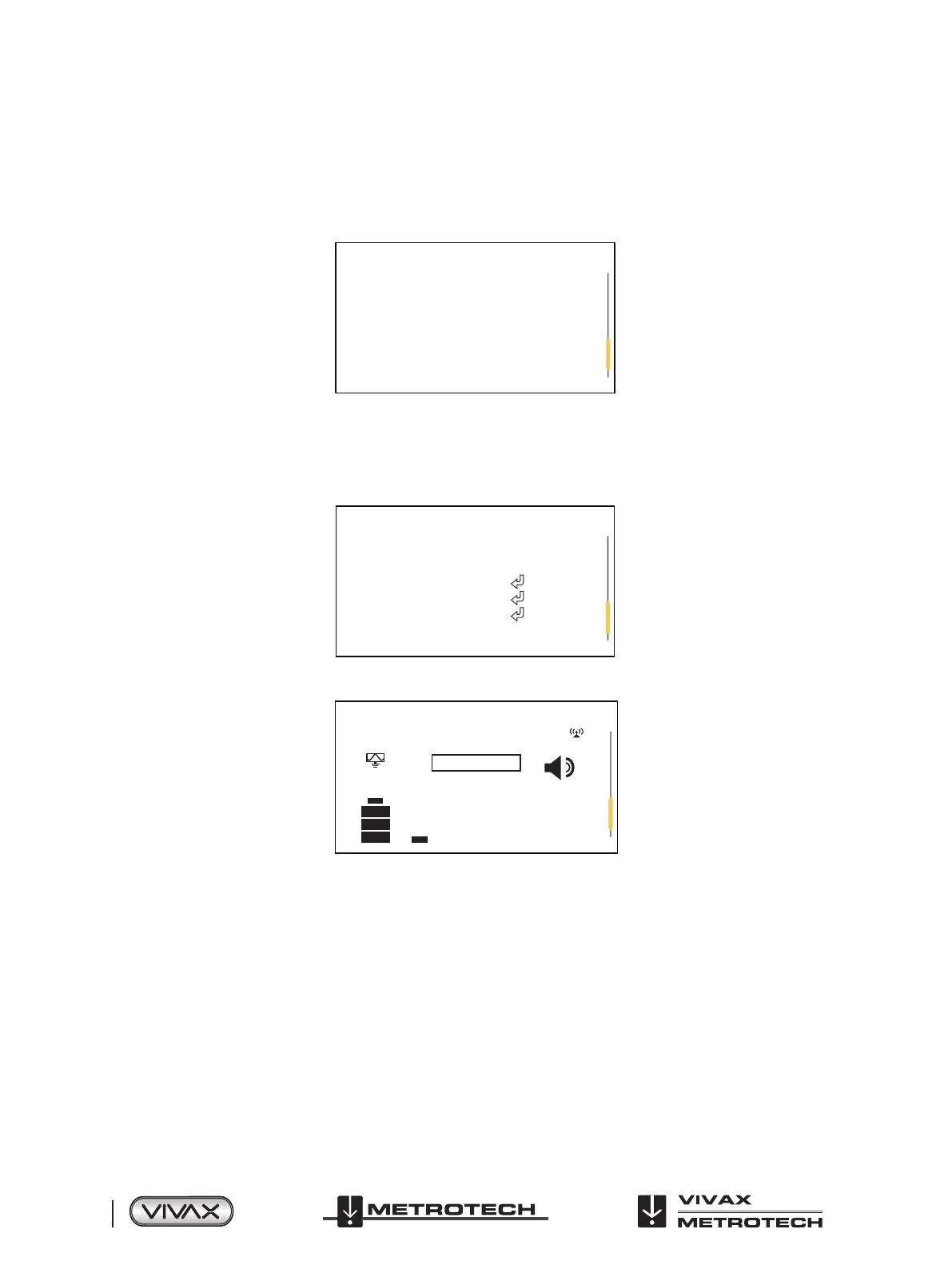

A screen similar to this should be seen:
Transmitter link status Connected 40%
Transmitter Control
640 Hz
100
mA
From this screen, if the link status shows “Connected”, it is possible to:
a. Alter the output level of the transmitter using the “+” and “-” buttons.
b. Alter the transmit frequency using the “f” button.
Also shown is the:
Radio link signal strength, in this case 40%.
Output mode, in this case direct connection.
Output current, in this case 100mA.
Beeper volume setting, in this case level 2.
Transmitter battery level.
To Next Page
