IR Extender Connection:

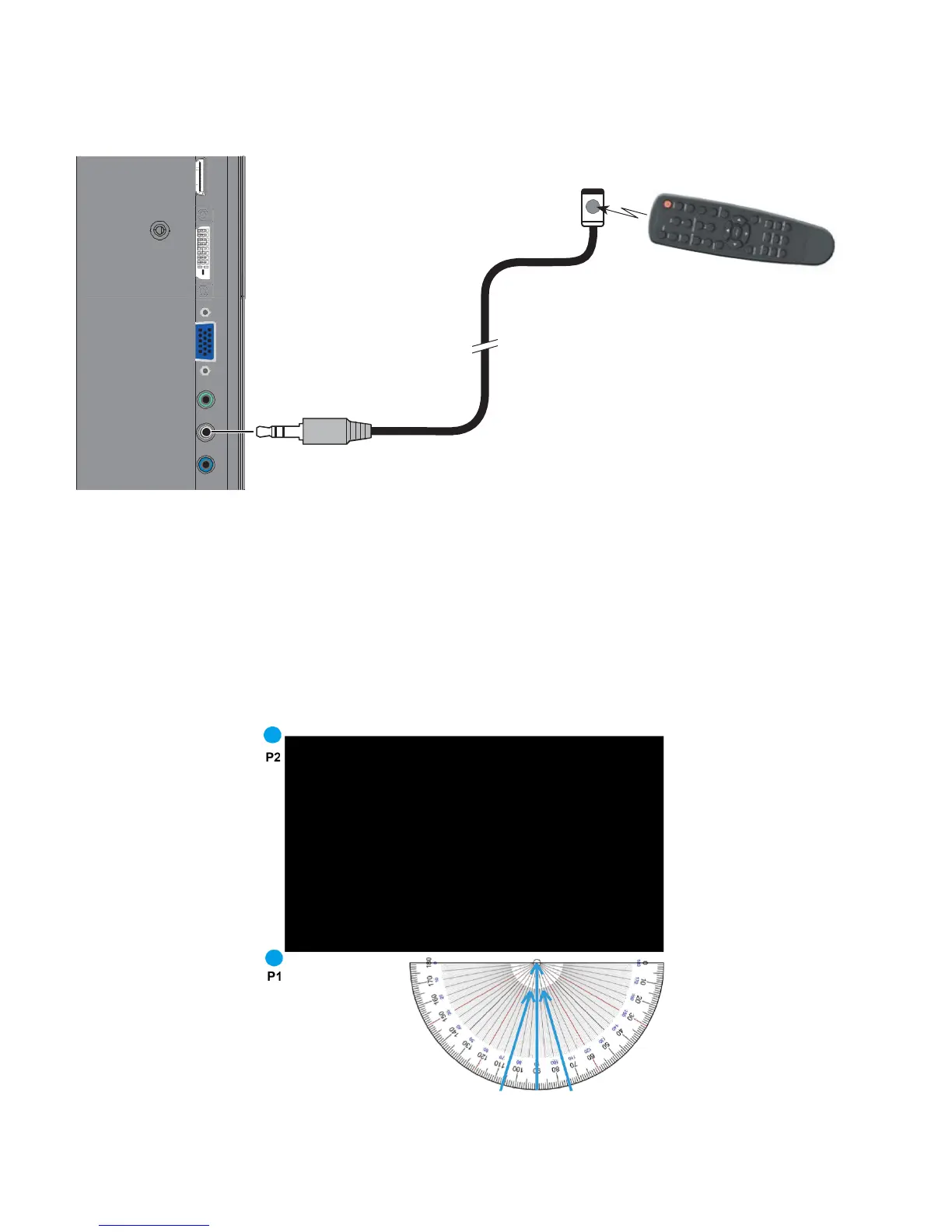

Connect the provided IR extender cable to the IR Extender input as shown in Figure 3-4.
Figure 3-4. IR Extender Connection
Recommended IR Extender Positions for Cascading 32" Displays
In controlled testing, the IR range is approximately 1.5 metres directly on-axis, and about 1 metre at plus or minus 15
degrees off-axis using the IR extender.
Best performance is obtained in either position P1 or position P2.
Figure 3-5. Recommended IR Extender Position
(3.5-mm, mini
phono plug)
