Vivitek DS262 - Connector Information

16
1.5 Connector Information
This section provides each connector location on boards and function of each board. They
will be useful for your detecting the defective boards.

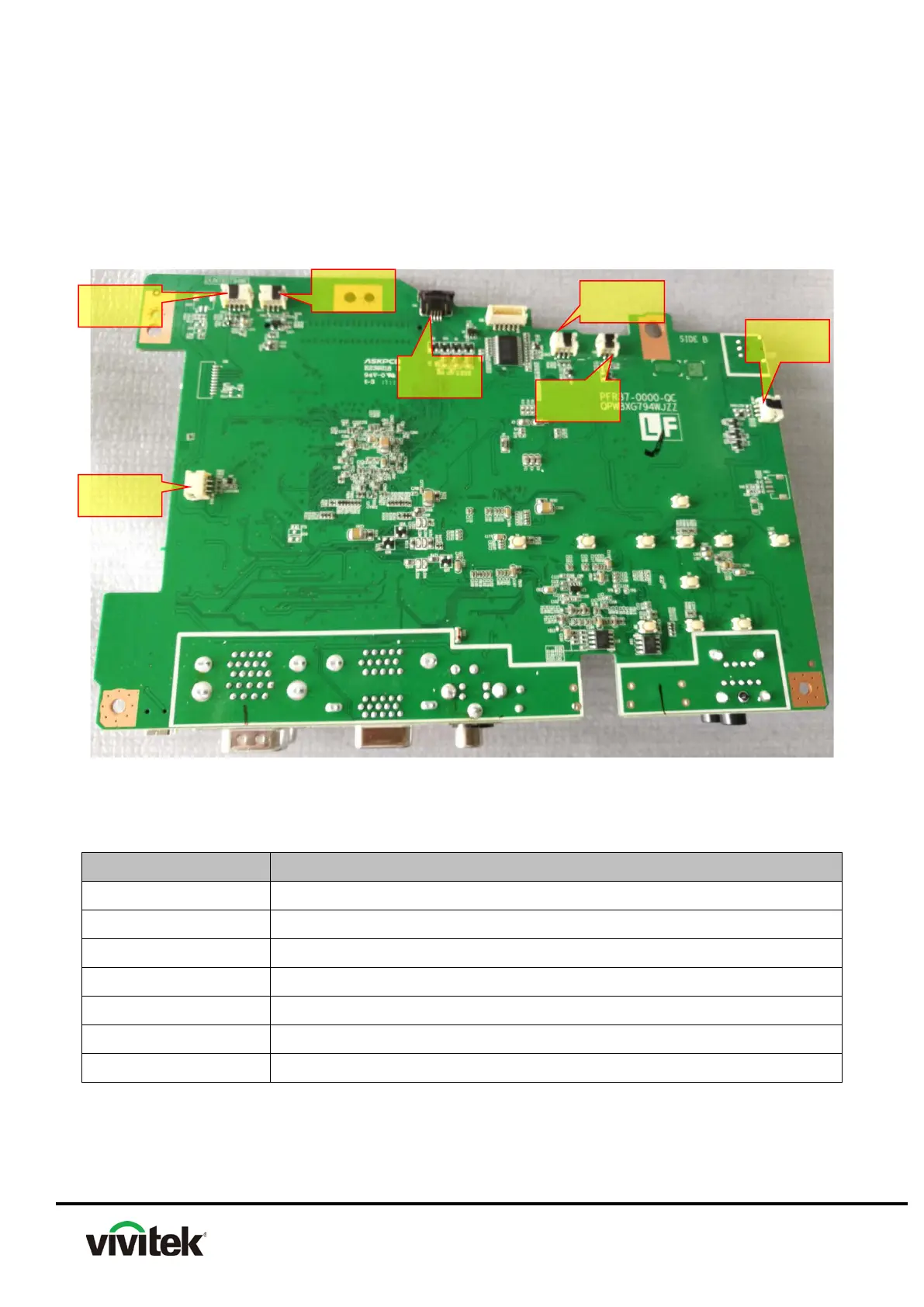

A. Main Board
Connector
Description
No 1
Connect to LFET FAN
No 2 Connect to IR
No 3
Connect to Color Wheel control
No 4 Connect to Color Wheel FFC
No 5
Connect to TUBRO FAN
No 6 Connect to TEMPERATURE CONTROL WIRE
No 7
Connect to RIGHT FAN
No 04
No 03
No 02
No 01
No 05
No 07
No 06
