(3) Confirm cable connection well.
Note: Swapping modules that may be defective with others known to be good is generally an ideal
way to find the module responsible for the problem. A failure symptom is rarely caused by more than
one module, so you will not usually need to replace more than one to correct a particular failure.
Whatever main board, ballast, IR board, power board, lamp module or optical engine are all suitable
to check by swapping modules.
3.2 Main Procedure

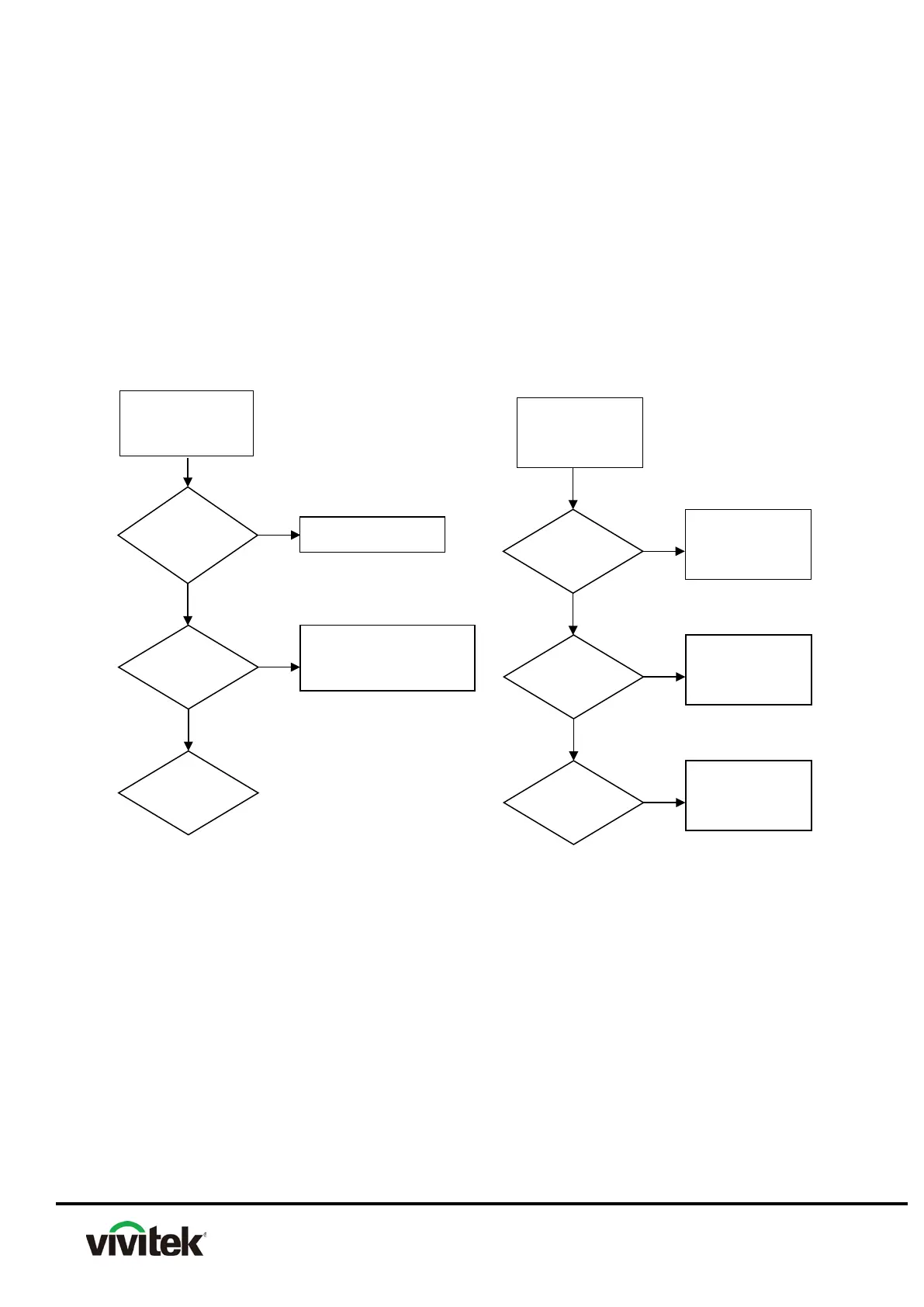

Power Source Troubleshooting:
No Power Source
after turning on
Replug AC socket
Replace AIO power
board
OK
OK
NG
NG
Check 9 pin
Power output
Check AC socket
connection
Replace main
board
Fan failure after
turning on
Reconnect fan
Replace fan
Replace Main
board
NG
NG
NG
OK
OK
Check
Main board
Check
Fan
Check fan
connection

Vivitek DS262 Specifications

General

Native aspect ratio	4:3
Projection distance	1.6 - 11.3 m
Projection technology	DLP
Contrast ratio (typical)	15000:1
Screen size compatibility	40 - 240 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	-40 - 40 °
Offset	105.7 %
Throw ratio	1.94 - 2.32:1
Focal length range	21.8 - 25.6 mm
Aperture range (F-F)	2.46 - 2.66
DVI port	No
HDMI version	1.4
AC (power) in	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	0
S-Video inputs quantity	1
Component video (YPbPr/YCbCr) in	-
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	240 W
Power consumption (economy mode)	203 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	7000 h
RMS rated power	2 W
Noise level	31 dB
Noise level (economic mode)	28 dB
Cables included	AC, VGA
Placement	Desktop
Product type	Standard throw projector
Product color	White
Supported graphics resolutions	800 x 600 (SVGA), 1920 x 1200 (WUXGA)

Weight and Dimensions

Depth	243 mm
Width	332 mm
Height	107 mm
Weight	2600 g
