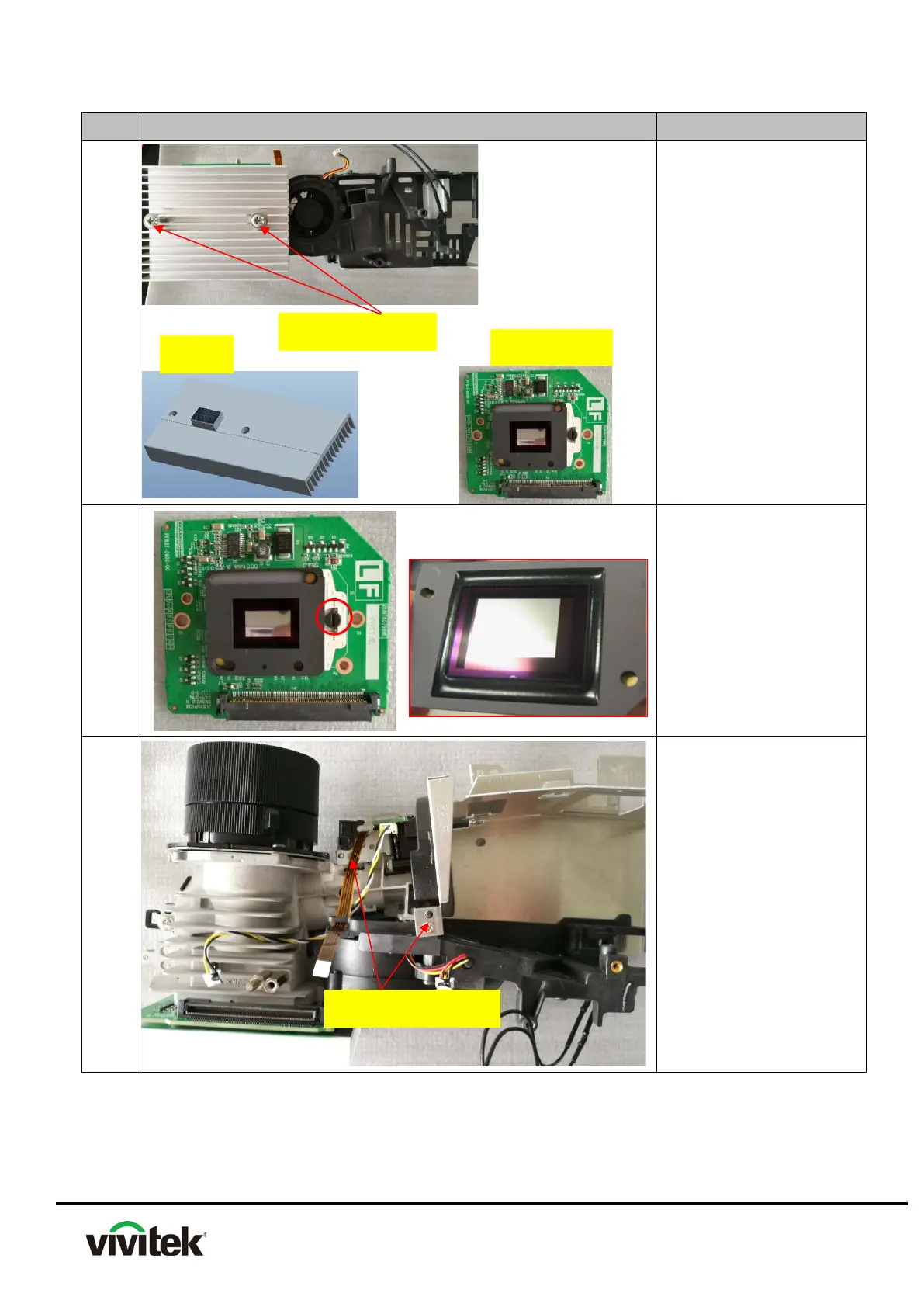

25
Step
Figure
Description
18
1. Loosen the screws on
DMD Board.
2.
Remove the heat sink
and DMD Board.
19 Move the screw to the
other side,then pick up
the DMD gently.
ot20 Loosen the two screws,
then remove the color
wheel.
SCREW:J1635-D564-00
SCREW: J1635-D570-00
Heat sink
DMD BOARD
