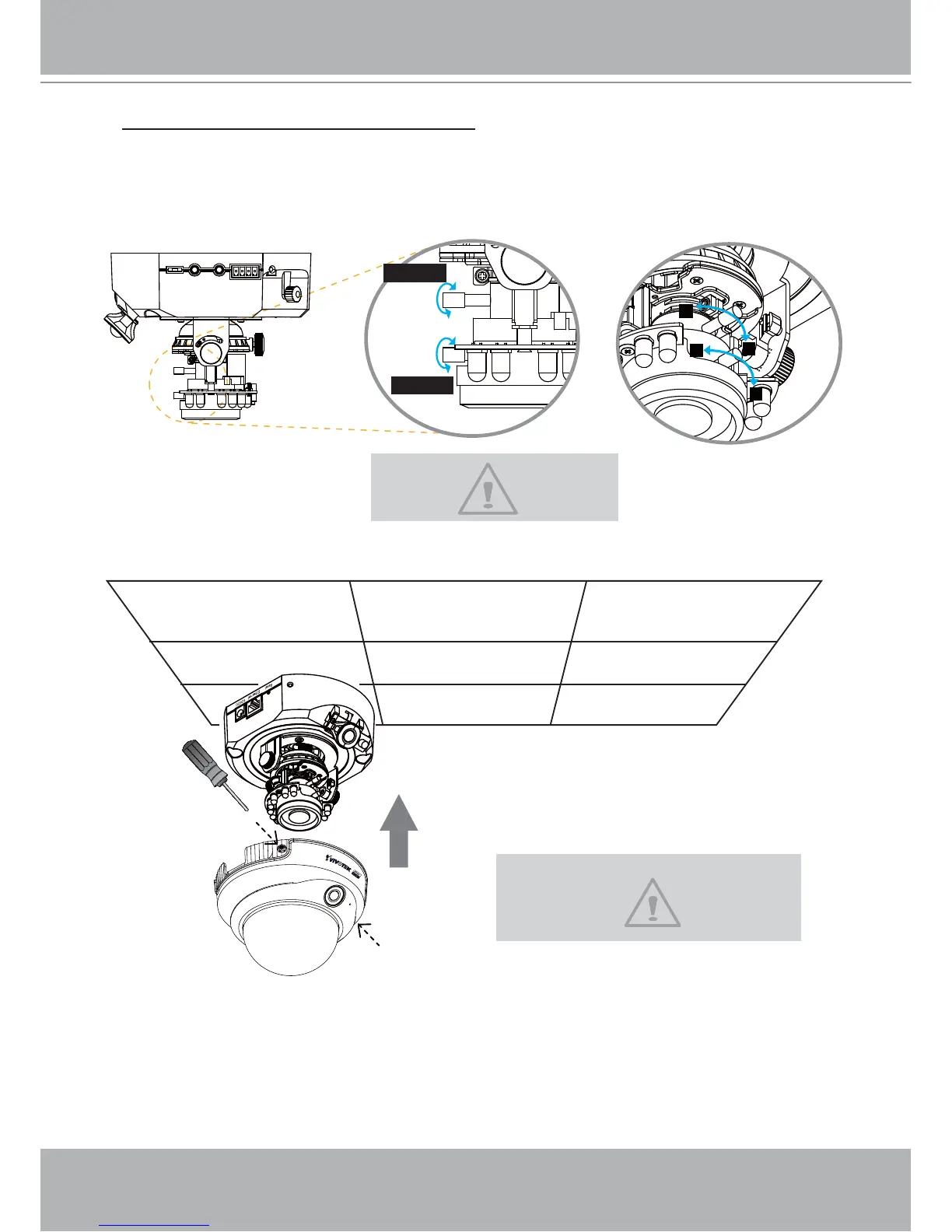

To adjust the zoom factor and focus range
■ Loosen the zoom controller and then adjust zoom factor by moving the controller left and
right. Upon completion, tighten the zoom controller.
■ Loosen the focus controller and then adjust focus range by moving the controller left and
right. Upon completion, tighten the focus controller.
7. Attach the dome cover to camera. Secure the two dome screws with a screwdriver.
Finally, make sure all parts of the camera are securely installed.
Audio Out Mic. In Ext. Int.
1 2 3 4
I/O
W
T
8
N
Loosen
Tighten
DO NOT over tighten the controllers.
Doing so can damage the structure
of camera lens.
The supplied screwdriver is exclusively
designed to match the dome screws. In
case you will need to adjust the lens at a
later time, do not discard the screwdriver.
