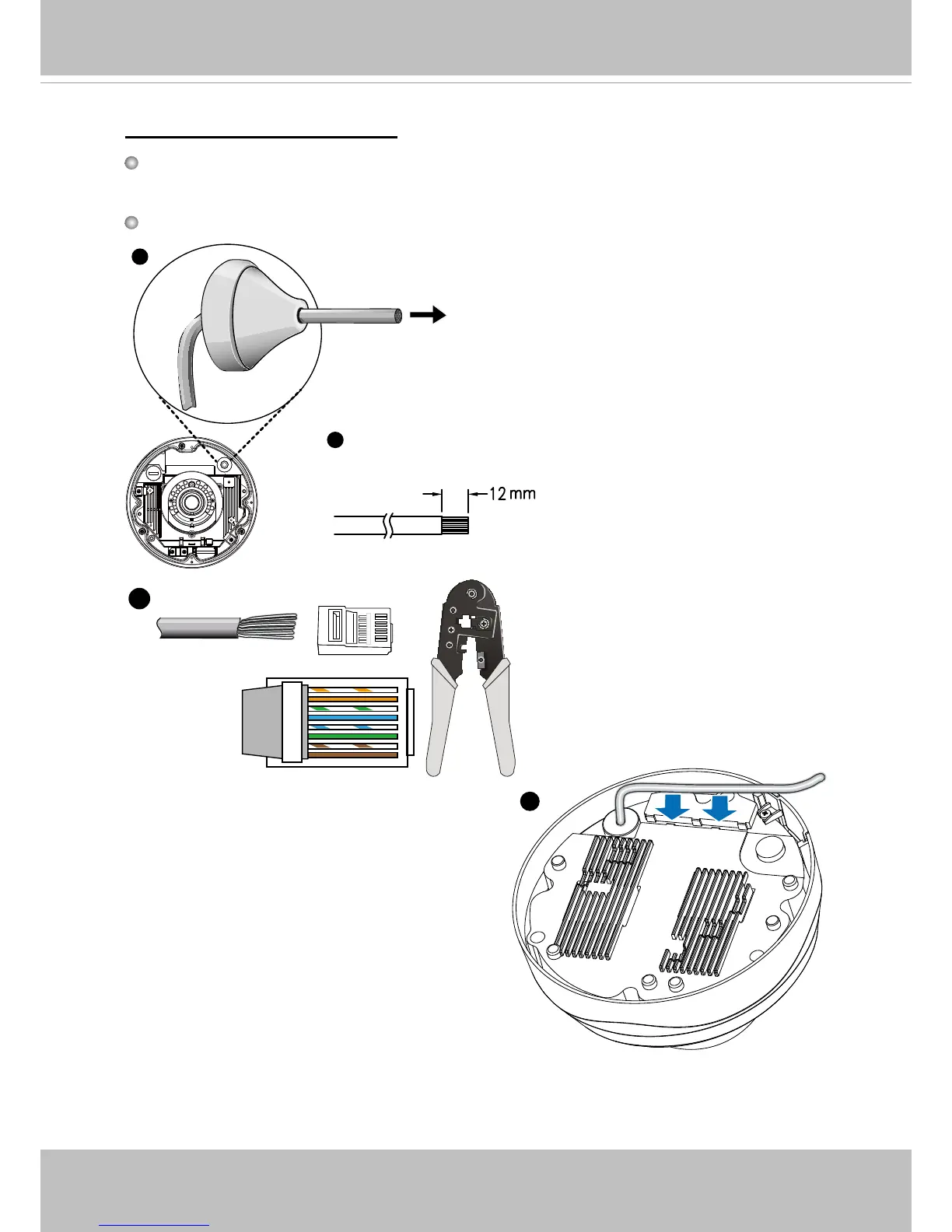

RJ45 Cable Dimension (unit: mm)
2� Strip part of the sheath from the
Ethernet cable�
1� Drill a hole on the rubber seal
plug and insert an Ethernet ca-
ble through the opening�
Rubber Seal
Plug
Assembling Steps
Recommended cable gauge: 24AWG (0.51 mm)
Connecting RJ45 Ethernet Cable
4
3
o
O
g
B
b
G
br
BR
1
2
3
4
5
6
7
8
o: white/orange stripe
O: orange solid
g: white/green stripe
B: blue solid
b: white/blue stripe
G: green solid
br: white/brown stripe
BR: brown solid
3� You will need an RJ45 crimping tool
to attach the Ethernet wires to a
connector� When done, connect the
cable to the camera’s Ethernet RJ45
socket�
4� Press the Ethernet cable into the routing
path at the bottom of the camera so that the
cable will not get in the way when the metal
mounting plate is attached�
