64 - User's Manual

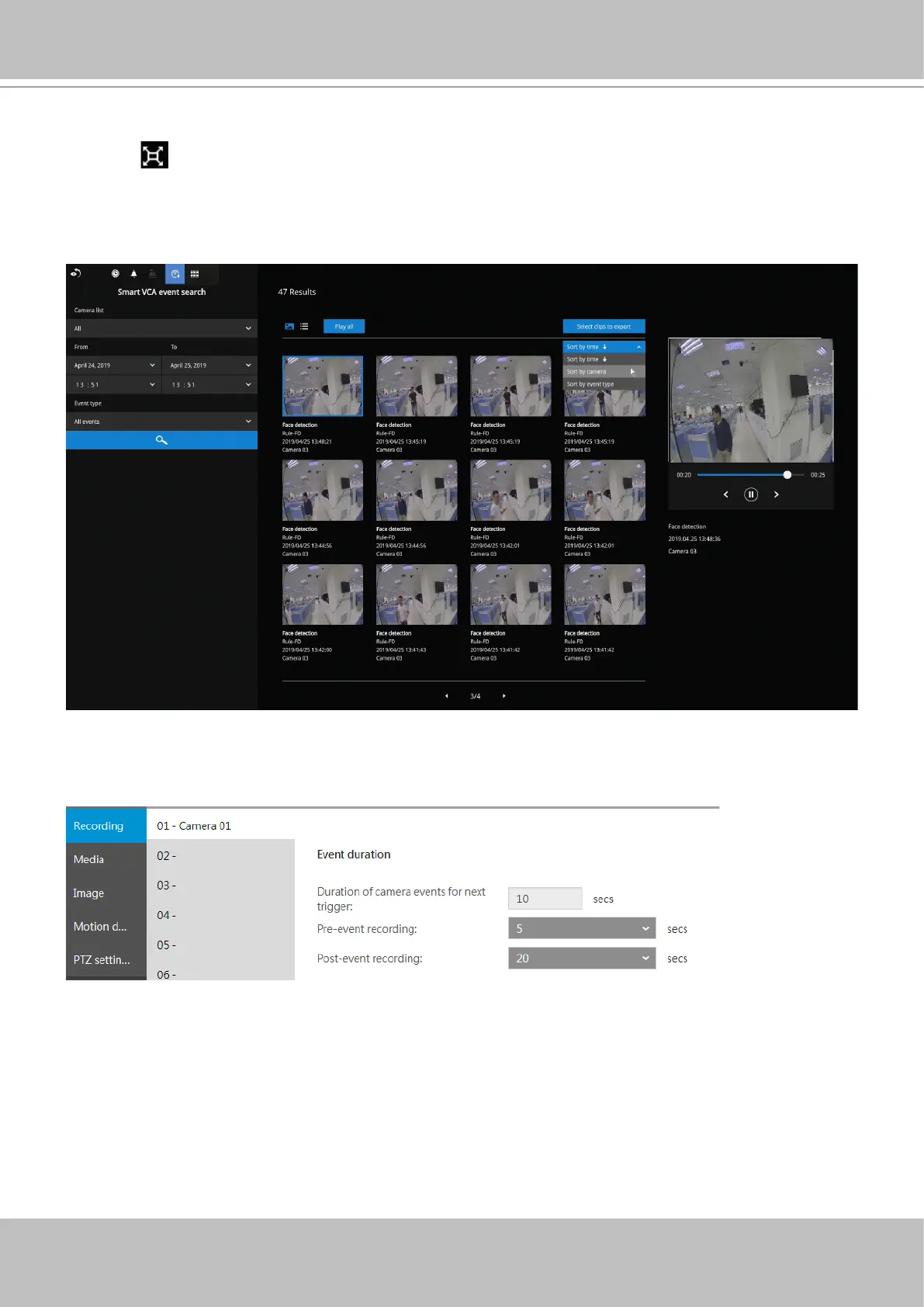

5. The search results will display as thumbnail images. To view each short video clip, click on
the thumbnail. The playback video window is located on the right. Click on the Expand/Shrink
button
to watch the video in a full screen.
You can use the Esc button to leave the full screen. Click to select another thumbnail, or use
the < or > buttons to view the previous or successive clips.
The default for the event recording setting is 5 seconds for pre-event, and 20 seconds for the
post-event recording. You may change the parameters if the need should arise.
You may then select clips of your interest and click the "Select clips to export" button. The
associated clips can be exported to a USB thumb drive.

Vivotek ND9425P Specifications

General

PTZ control	Yes
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265
Operating system installed	Embedded LINUX
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
VGA (D-Sub) output ports	1
HDD size	3.5 \
RAID levels	0, 1
HDD capacity	0 GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1)
Maximum storage capacity	16 TB
Number of HDDs installed	0
Product color	Black
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	255 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	320.3 mm
Width	366 mm
Height	46 mm
Weight	2500 g
