Technical Specifications
Model
ND9441P
16- CH Embedded Plug & Play NVR
ND9541P
32- CH Embedded Plug & Play NVR
Memory 2 GB or above
Ethenet 10/100Mbps
Display Resolution 1024x768 pixels or above
Web Browser Internet Explorer 10 (32 bit) or above
Software AP Installation Wizard 2, Shepherd, VAST
Mobile/Tablet App VIVOCloud (iOS/Android), iViewer (iOS/Android)
Accessories
CD User's Manual, Quick Installation Guide, Installation Wizard 2
Others
Power Adapter, Power Cord, Quick Installation Guide, 32x H.D.D. Screws, 8x H.D.D. Brackets, 1x
USB Mouse, 4x SATA Cables
Software Information
Record
Maximum Channel 16 32
Record Throughput (MB) 192 Mbps
Network Throughput (MB) 96 Mbps
Audio Format G.711, G.726
Video Format MJPEG, H.264, H.265
Video Resolution Up to 12MP Camera
Recording Time (sec.) Pre- Record: 5 (Max. 10) Post- Record: 20 (Max. 300)
Recording Stream Single
Recording Mode Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
Recording Setting Recycle (unit: Day)
Recording Path Local Path
Record Video Format 3GP
LiveView (Local Display)
Stream Application Auto Adaptive Stream
LiveView Display
16 Channels
Multiple Layout Display:
1x1, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+ 6, 3V,
1M+12, 4x4
32 Channels
Multiple Layout Display:
1x1, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+ 6, 3V,
1M+12, 4x4, 1M+31
Monitor Enhancement
OSD Display (NVR), OSD Display (Camera), Camera Information, Remote I/O Control, Event
Notification, Aspect Ratio, Fisheye Dewarp (1O,1P,1R,1O3R, 1O8R)
PTZ Control Panel Control/joystick
PTZ Operation Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control
Playback (Local Display)
Playback Display
4 Channels
Multi Layout Display: 2x2, 1V+3, 1P+3
Playback Control
Regular (Play, Pause, Stop), Rewind, Next/Previous Frame, Speed Control, Calendar, Event,
Timeline, Timeline Scale, Thumbnail (Storyboard)
Video Search By Calendar, Date/Time, Alarm
Thumbnail Explorer (Storyboard) Listing the thumbnail of recorded video (Max. 2 CH)
Monitor Enhancement
OSD Display (Camera), Event Notification, Aspect Ratio, PiP Control,
Fisheye Dewarp (1O,1P,1R,1O3R, 1O8R)
Snapshot JPEG
Video Clip Export EXE
LiveView (Remote)
Stream Application Stream Selection
Audio Capability One Way
LiveView Display
16 Channels
Multiple Layout Display: 1x1, 2x2, 3x3, 4x4,
1V+3, 1M+ 5, 1M+12
32 Channels
Multiple Layout Display: 1x1, 2x2, 3x3, 4x4,
1V+3, 1M+ 5, 1M+12, 1M+31
Monitor Enhancement
OSD Display (NVR), Drag & Drop, Image Freeze, Audio Control, Remote I/O Control, Event
Notification, Bookmark, Fisheye Dewarp (1O, 1P, 1R)
PTZ Control Panel Control
PTZ Operation Direction Control, Home, Zoom, Focus, Iris, Preset, Patrol (Group), PiP Control
Snapshot JPEG
Watermark Supported
Technical Specifications
Model
ND9441P
16- CH Embedded Plug & Play NVR
ND9541P
32- CH Embedded Plug & Play NVR
Playback (Remote)
Playback Display
4 Channels
Multi Layout Display: 1x1, 2x2, 1V+3
Playback Control
Regular (Play, Pause, Stop), Next Frame, Speed Control, Calendar, Timeline, Timeline Scale,
Bookmark
Monitor Enhancement OSD Display (NVR), Drag & Drop, Audio Control, PiP Control, Fisheye Dewarp (1O, 1P, 1R)
Snapshot JPEG
Video Clip Export EXE
Alarm Management
Schedule Type Continuous, Schedule, Manual
Event
Motion Detection, PIR Detection, Tampering Detection, Digital Input (Camera
), Digital Output
(Camera), Connection Abnormal, Storage Abnormal, Storage Full, Camera Network Loss, DI, DO
Action
Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO,
Camera DO
Recording Time (sec.) Pre- Record: 5 (Max. 10), Post- Record: 20 (Max. 300)
Backup
Manual USB Dongle (FAT Format)
System
User Management
User Account: 16
User Account Time Limit: 10 mins
User Level: Administrator, Regular User
User Feature Definition: By Camera
Log Sys
tem, Recording, User, Error
Date&Time Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Firmware Manual update
Restore Default Supported
Backup/Restore (Configuration) Supported
Language
Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish,
Simplified Chinese, Traditional Chinese, Polish
Camera Intergration
Insert Camera Manual, Search
ONVIF Compliant Supported
Video (Media) Setting Compression, Resolution, FPS, Video Quality
Imag
e Setting Image Display, Image Adjustment
PTZ Control Panel Control, Joystick
PTZ Operation Direction Control, Home, Preset, Patrol (Group)
Motion Detection Supported
Device Intergration
UPS APC Model Compatible
Joystick IPD- USB, AJ001

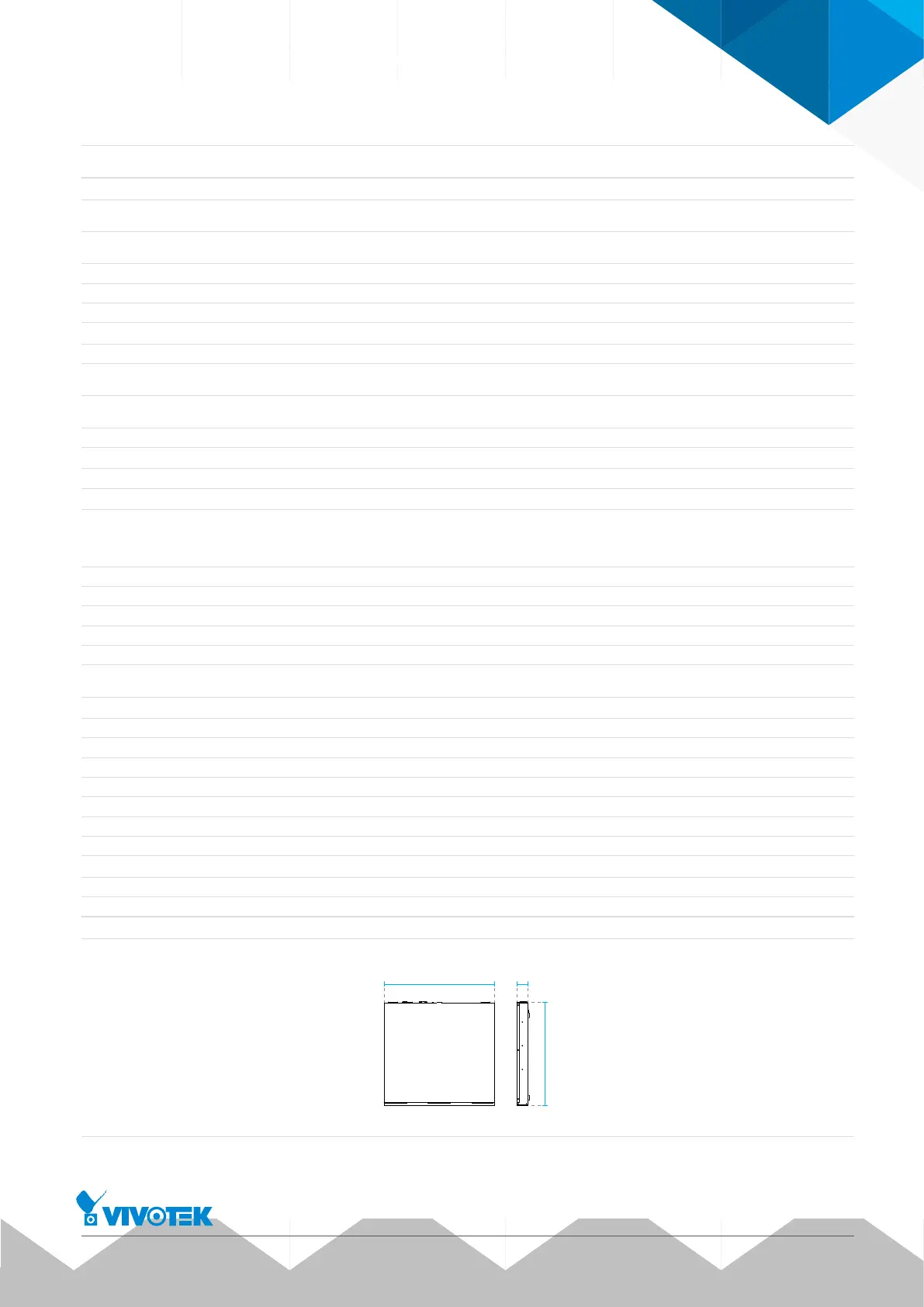

Dimensions
430 mm
400 mm
45 mm
All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved. Ver. 2
6F, No.192, Lien- Cheng Rd., Chung- Ho, New Taipei City, 235, Taiwan, R.O.C. | T: +886- 2- 82455282 | F: +886- 2- 82455532 | E: sales@vivotek.com | W: www.vivotek.com

Vivotek ND9541P Specifications

General

PTZ control	Yes
Playback modes	Pause, Play, Speed Adjust, Stop
Internal memory	256 MB
Number of users	16 user(s)
Recording modes	Continuous, Event, Manual, Schedule
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Internal memory type	Flash
Throughput data rate	96 Mbit/s
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	2560 x 1920, 1920 x 1080, 1280 x 720, 720 x 480
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265, MPEG
Operating system installed	Embedded LINUX
Resolution at capture speed	2560x1920@30fps, 720x480@960fps, 1280x720@240fps, 1920x1080@120fps
Minimum RAM	4 GB
Browser supported	Internet Explorer 10 (32 bit) or above
Mobile operating systems supported	Android, iOS
HDD capacity	- GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Maximum storage capacity	8 TB
Number of HDDs installed	-
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Power over Ethernet (PoE) power per port	160 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
Product color	Black
LED indicators	HDD, Network, Status, Y
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	SATA

Weight and Dimensions

Depth	400 mm
Width	430 mm
Height	44.5 mm
Weight	4500 g
