User's Manual - 137
3. If you are creating a regular user with limited access to cameras, deselect the checkboxes by
the cameras to deny the user access.
4. Click Apply to close the conguration window. Repeat the process to create more users.

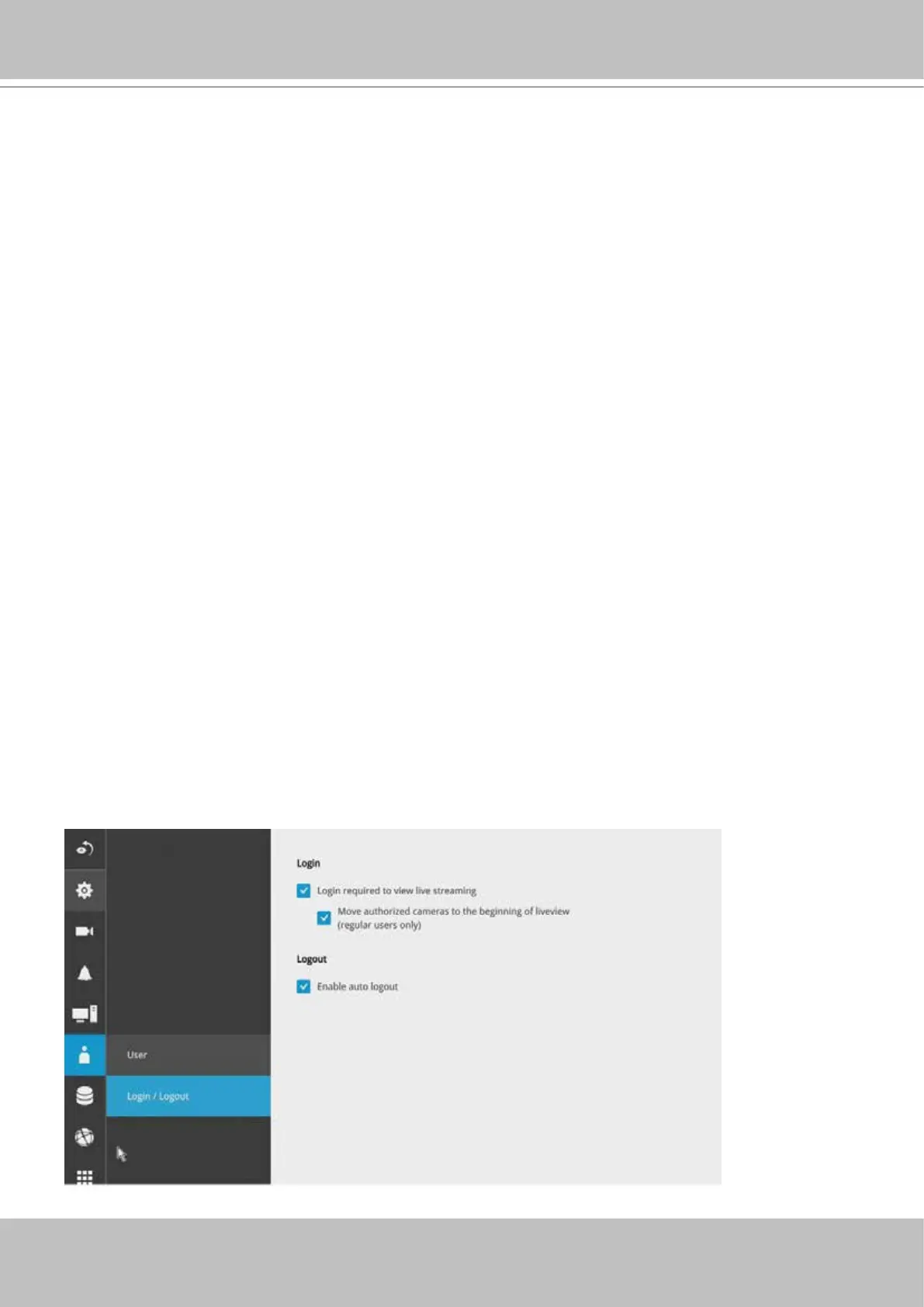

3-5-21. Settings–User-Login / Logout
Login
1. Login required to view live streaming: If selected, users will be required to enter his/her
credentials before displaying a live view. If not selected, the NVR displays live view rst. Login
will be required when performing specic tasks, such as entering the Settings page.
Auto Logout should also be enabled when the NVR can be left unattended for an extended
period of time. Default is 10 minutes.
Camera views will be available for users according to their privilege settings as designated in
the User account conguration. Some camera views will be available for some users, while
others are not.
2. Move authorized cameras to the beginning of live view (regular users only): For users who
have access to specic cameras only, he will be required to enter his credentials before
viewing a live view.
Logout
1. Enable auto logout: By default, a user is logged out automatically after being idle for 10
minutes. If not selected, the NVR will not log out automatically. A user can only log out
manually.

Vivotek ND9541P Specifications

General

PTZ control	Yes
Playback modes	Pause, Play, Speed Adjust, Stop
Internal memory	256 MB
Number of users	16 user(s)
Recording modes	Continuous, Event, Manual, Schedule
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Internal memory type	Flash
Throughput data rate	96 Mbit/s
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	2560 x 1920, 1920 x 1080, 1280 x 720, 720 x 480
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265, MPEG
Operating system installed	Embedded LINUX
Resolution at capture speed	2560x1920@30fps, 720x480@960fps, 1280x720@240fps, 1920x1080@120fps
Minimum RAM	4 GB
Browser supported	Internet Explorer 10 (32 bit) or above
Mobile operating systems supported	Android, iOS
HDD capacity	- GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Maximum storage capacity	8 TB
Number of HDDs installed	-
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Power over Ethernet (PoE) power per port	160 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
Product color	Black
LED indicators	HDD, Network, Status, Y
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	SATA

Weight and Dimensions

Depth	400 mm
Width	430 mm
Height	44.5 mm
Weight	4500 g
