202 - User's Manual

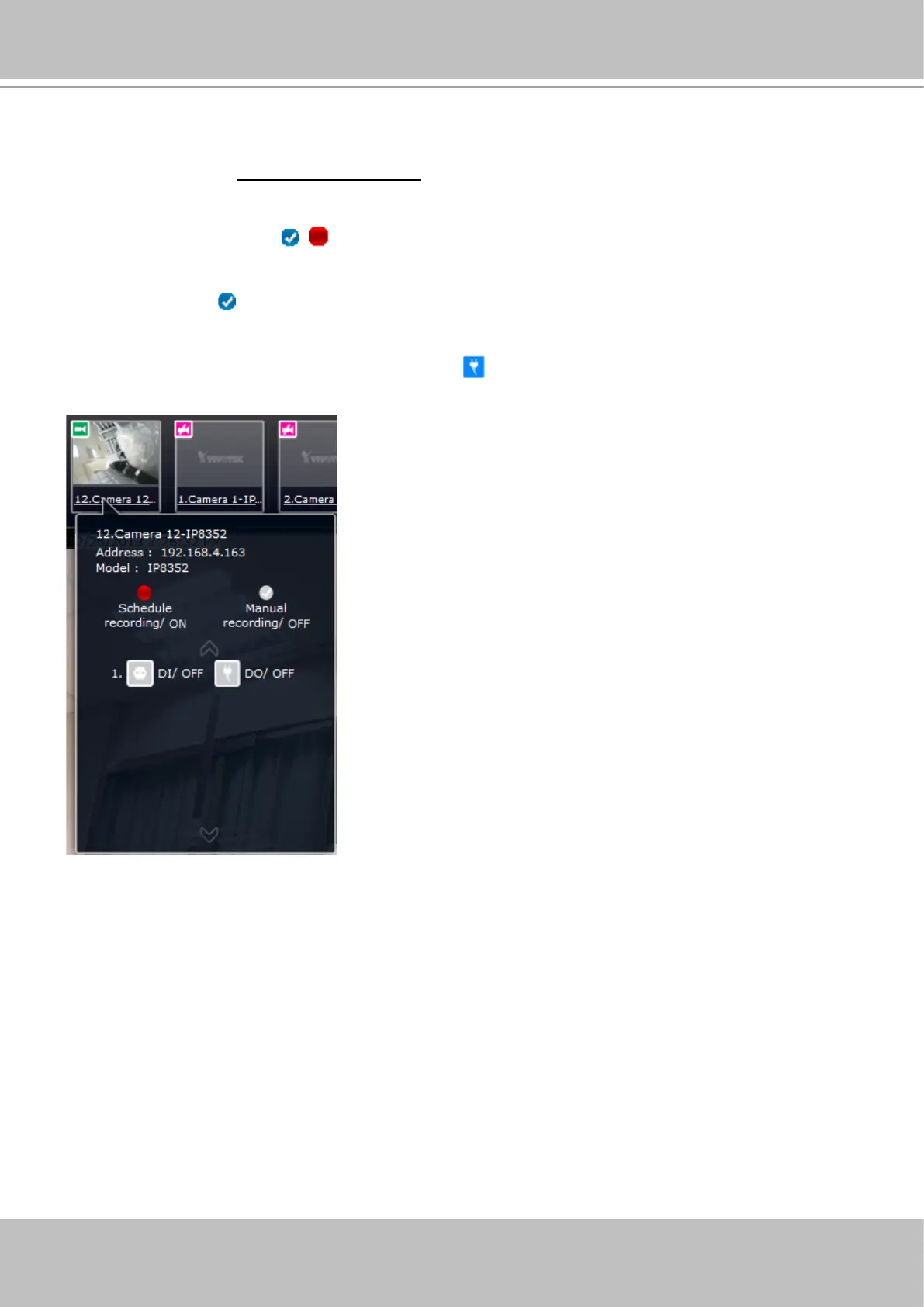

You can click on the underlined name entry of a camera on the camera list to open its properties
window. Here you can nd a short description of the camera name, address, and model name.
You can also enable or disable the scheduled or continuous recording set for the camera. Click
on their associated icons,
, , to change their recording status.
For a camera that is not performing a continuous recording, you can click on the Manual
Recording button,
, to start a manual recording. The recording can be stopped using the same
button.
You can also manually turn on the digital output
, e.g., to trigger an external alarm that is
connected to a specic camera.
6-1-4. Camera Properties and Controls

Vivotek ND9541P Specifications

General

PTZ control	Yes
Playback modes	Pause, Play, Speed Adjust, Stop
Internal memory	256 MB
Number of users	16 user(s)
Recording modes	Continuous, Event, Manual, Schedule
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Internal memory type	Flash
Throughput data rate	96 Mbit/s
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	2560 x 1920, 1920 x 1080, 1280 x 720, 720 x 480
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265, MPEG
Operating system installed	Embedded LINUX
Resolution at capture speed	2560x1920@30fps, 720x480@960fps, 1280x720@240fps, 1920x1080@120fps
Minimum RAM	4 GB
Browser supported	Internet Explorer 10 (32 bit) or above
Mobile operating systems supported	Android, iOS
HDD capacity	- GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Maximum storage capacity	8 TB
Number of HDDs installed	-
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Power over Ethernet (PoE) power per port	160 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
Product color	Black
LED indicators	HDD, Network, Status, Y
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	SATA

Weight and Dimensions

Depth	400 mm
Width	430 mm
Height	44.5 mm
Weight	4500 g
