Vivotek ND9541P User Manual

VIVOTEK - Built with Reliability
66 - User's Manual
Smart search II is available only for the newer line of cameras that come with Smart
Motion detection. Smart search II has the following benets:
1. Faster search: Metadata is saved with videos coming from cameras running Smart
Motion detection. With the help of the metadata, the search focuses on the e󰀨ective
alerted vectors and the adverse effects, e.g., headlights causing dramatic contrast
or small animals passing through, have already been eliminated by the camera. The
search can be more rapidly completed.
2. People detection: The search can be conducted for human activities only. Activities
matching the silhouettes of human will be considered as e󰀨ective results.
3. Polygon search: Users can create a polygon on the areas of their interest to begin
a search. Note that the Smart Motion detection conguration takes place on a web
console to individual cameras. It is not congurable on the NVR.
Note that the Smart Motion detection areas must have been congured on each camera
before the Smart search can take e󰀨ect.

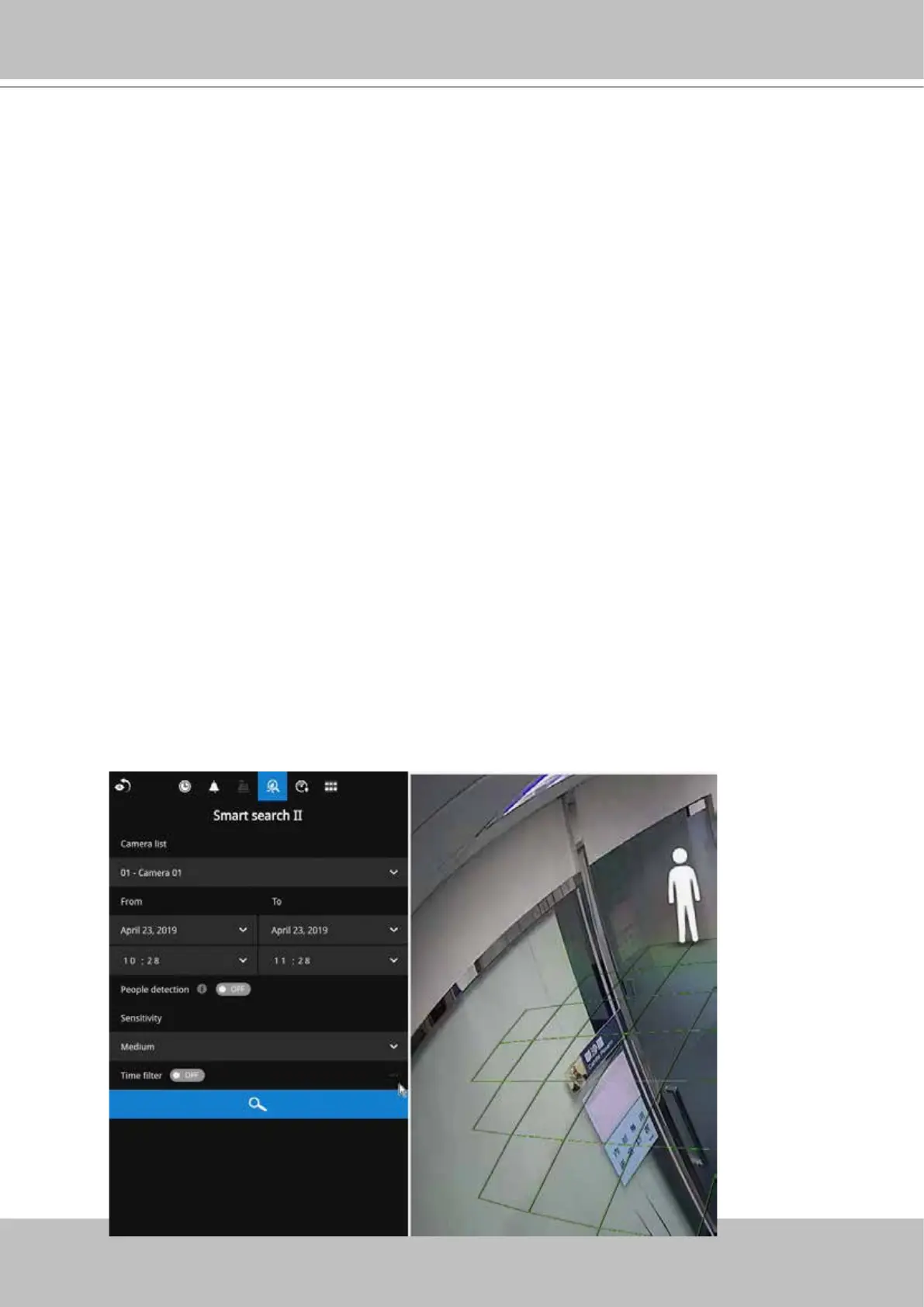

You can specify the time span, People detection, Sensitivity level, and time filter
parameters in a Smart Search II panel.
3-3-4. Smart Search II

Vivotek ND9541P Specifications

General

PTZ control	Yes
Playback modes	Pause, Play, Speed Adjust, Stop
Internal memory	256 MB
Number of users	16 user(s)
Recording modes	Continuous, Event, Manual, Schedule
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Internal memory type	Flash
Throughput data rate	96 Mbit/s
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	2560 x 1920, 1920 x 1080, 1280 x 720, 720 x 480
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265, MPEG
Operating system installed	Embedded LINUX
Resolution at capture speed	2560x1920@30fps, 720x480@960fps, 1280x720@240fps, 1920x1080@120fps
Minimum RAM	4 GB
Browser supported	Internet Explorer 10 (32 bit) or above
Mobile operating systems supported	Android, iOS
HDD capacity	- GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Maximum storage capacity	8 TB
Number of HDDs installed	-
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Power over Ethernet (PoE) power per port	160 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
Product color	Black
LED indicators	HDD, Network, Status, Y
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	SATA

Weight and Dimensions

Depth	400 mm
Width	430 mm
Height	44.5 mm
Weight	4500 g
