With up to 4 disk drives, you have the following options for conguring storage volumes:
1. Single disk: The single disk conguration provides no fault tolerance. The system stores
video recordings to one or more single disk volumes in a consecutive order.

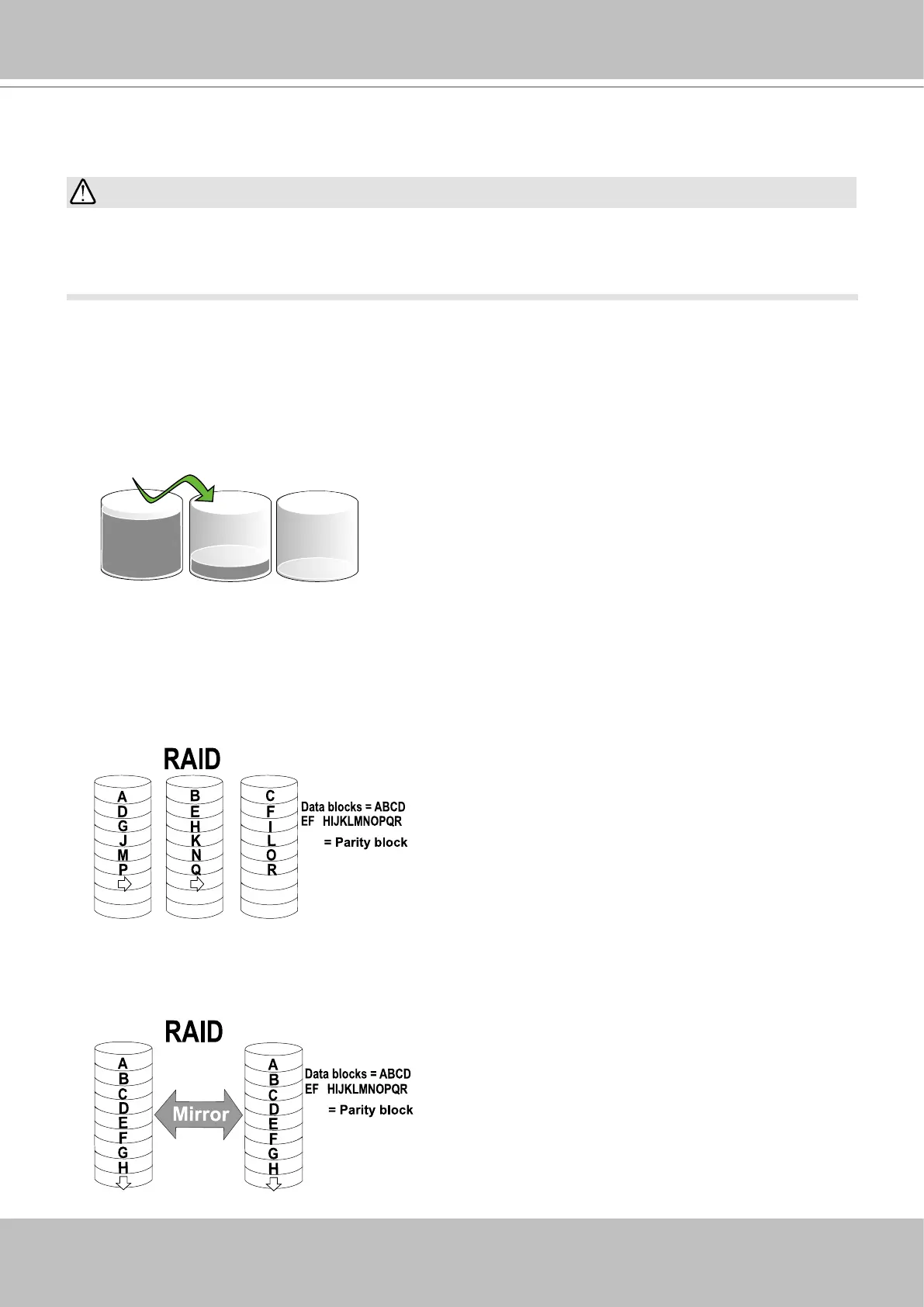

Storage Volume RAID Levels
Single disks
Disk 0 Disk 1 Disk 2
2. RAID0: A RAID0 volume spreads data blocks of each le across multiple disk drives. The
volume provides no redundancy. RAID0 provides high performance by simultaneously reading
or writing to disk drives, but if a drive fails, all data within is lost. Select at least 2 disks to build
a RAID0 volume.
0
N/A
Disk 0 Disk 1 Disk 2
G
3. RAID1: A RAID1 volume provides high fault tolerance by writing the same data blocks
simultaneously to duplicate disks. Select at least 2 disks (or 4 disks) to build a RAID1 volume.
1
N/A
Disk 0 Disk 1
G
Each single disk volume contains one disk drive.
By default, the Installation Wizard congures all disk drives into individual single-disk volumes. If
you need to create RAID proteced volumes, delete these single-disk volumes to free them from
the conguration.
IMPORTANT:

Vivotek ND9541P Specifications

General

PTZ control	Yes
Playback modes	Pause, Play, Speed Adjust, Stop
Internal memory	256 MB
Number of users	16 user(s)
Recording modes	Continuous, Event, Manual, Schedule
Maximum resolution	2560 x 1920 pixels
Alarm input channels	8
Internal memory type	Flash
Throughput data rate	96 Mbit/s
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	2560 x 1920, 1920 x 1080, 1280 x 720, 720 x 480
Audio formats supported	G.711, G.726
Video formats supported	H.264, H.265, MPEG
Operating system installed	Embedded LINUX
Resolution at capture speed	2560x1920@30fps, 720x480@960fps, 1280x720@240fps, 1920x1080@120fps
Minimum RAM	4 GB
Browser supported	Internet Explorer 10 (32 bit) or above
Mobile operating systems supported	Android, iOS
HDD capacity	- GB
HDD interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Maximum storage capacity	8 TB
Number of HDDs installed	-
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Power over Ethernet (PoE) power per port	160 W
Certification	CE, LVD, FCC, VCCI, C-Tick, UL
Product color	Black
LED indicators	HDD, Network, Status, Y
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	SATA

Weight and Dimensions

Depth	400 mm
Width	430 mm
Height	44.5 mm
Weight	4500 g
