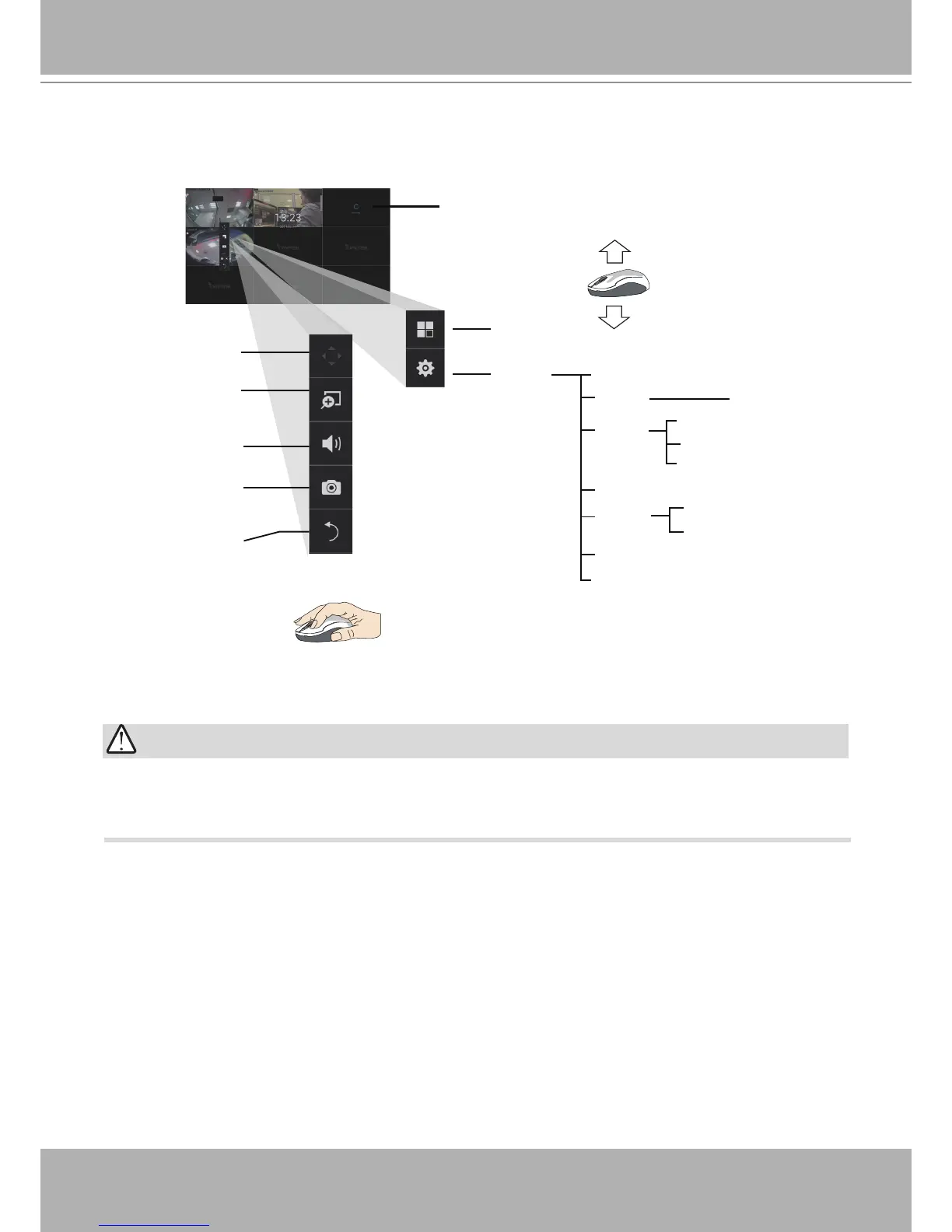

By default, a live view appears on an HDMI monitor. The interface architecture of the local
console is illustrated as follows:
LiveView Main screen
Main control portals
Layout
Settings
Camera Management
System
Information
Maintenance
Display
User
Network
Services
Overview (camera connection & storage)
Digital zoom
PTZ
Snapshot
Deselect camera
Config. portal
Camera portal
Information
Audio
Virtual keypad
IP
When a view cell is selected
Due to the limitation of system resources, the sheye dewarp (1R & 1P modes) can only take
place on one view cell, for one sheye camera.
